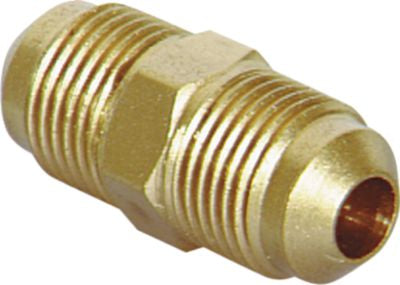

Air Line Union, SAE 45° Flare, Brass, 5/16 x 5/16", Tube x Tube, 1200PSI
(Pack of
10)
SKU:5150 Item#: 5150
• Meets UL standards for hazardous liquid, fuel equipment, refrigeration and gas• Meets code specifications for pressure piping, SAE, ASA, ASME and military standards• Compatible tubing: Copper, brass, aluminum, welded steel• Meets burst pressures of standard tubing: Up to 5,000 PSI with welded tubing; up to 3,500 PSI with copper tubing, depending on size• Temperature ranges: –65°F to +250°F (–54°C to +121°C) at maximum operating pressure; up to 400°F (204°C) at pressures under 1,000 PSI
• Applications: Fuel, air and oil lines; LP and natural gas lines; mobile equipment, machinery, air compressors, oil burners, air conditioning and refrigeration
Frequently Bought Together
Water Line Elbow Brass 90° 3/8-18 x 3/8"
Couldn't load pickup availability
Compression Tube Support Brass 6 x 4mm
Couldn't load pickup availability
Compression Run Tee Brass 1/4 x 1/4-18 x 1/4"
Couldn't load pickup availability
Copper Reducing Tee, 3/4" x 3/4" x 1/2"
Couldn't load pickup availability
Copper Male Adapter Coupling, 3/4" x 3/4"
Couldn't load pickup availability
Copper Reducing Adapter Coupling, 1" x 3/4"
Couldn't load pickup availability
Rubber Air Hose Assembly 1/4" x 25'
Couldn't load pickup availability
AG-Lite Rubber Water Hose Lead In 3/4" x 6'
Couldn't load pickup availability
Pipe Branch Tee Brass 1/8-27 x 1/8-27 x 1/8-27
Couldn't load pickup availability
Molding Clip with Sealer Nylon White 11.5 x 21
Couldn't load pickup availability
Shroud Insulating Button Nylon 11/16"
Couldn't load pickup availability
Nylon Cable Tie 11-3/4" Black
Couldn't load pickup availability
Product Description
• Meets UL standards for hazardous liquid, fuel equipment, refrigeration and gas• Meets code specifications for pressure piping, SAE, ASA, ASME and military standards• Compatible tubing: Copper, brass, aluminum, welded steel• Meets burst pressures of standard tubing: Up to 5,000 PSI with welded tubing; up to 3,500 PSI with copper tubing, depending on size• Temperature ranges: –65°F to +250°F (–54°C to +121°C) at maximum operating pressure; up to 400°F (204°C) at pressures under 1,000 PSI• Applications: Fuel, air and oil lines; LP and natural gas lines; mobile equipment, machinery, air compressors, oil burners, air conditioning and refrigeration
Technical Specifications
| Item#: | 5150 |
|---|---|
| Fitting Type | SAE 45 Degree Flare |
| Configuration | Union |
| Material | Brass |
| Connection Type A x B | Tube x Tube |
| Fitting Dimension A | 5/16 " |
| Fitting Dimension B | 5/16 " |
| Working Pressure | 1,200 PSI |
| Temperature Range | -65 to 250 F |
| UNSPSC #: | 40170000 |
| TAA Compliant: | No |
| Weight: | 0.49 lb |
