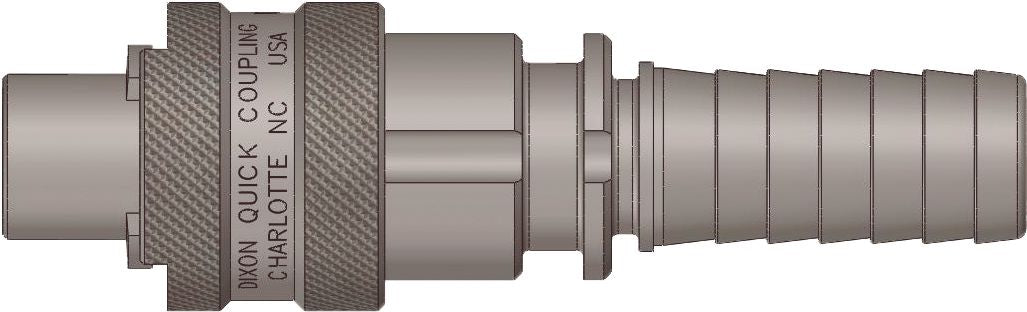

51000 Series Bowes Industrial Quick Disconnect Nipple, Steel, 500PSI, Barb, 1/2" Body Size, 3/8" Hose ID
(Pack of
1)
SKU:20915 Item#: 20915
Dual guide sleeve tabs will ensure smooth collar action during connection and disconnection. “Push-Twist and Click” connection provides a positive lock when connected. Pneumatically energized seal provides an airtight seal at all working pressures. Available safety-lock ring protects against accidental disconnection while coupling is in operation. Used for air hammers and large bore air tools. Used in underground boring, power utilities and equipment rentals.
• OSHA Standard 29CFR, 926.302(b)(1) requires that pneumatic tools be secured to the hose or whip by positive means to prevent accidental disconnection – see Accessories
• Locking Mechanism: Latch tabs
• Meets MIL-C-3486 for Military applications
• Operating Pressure: 300 PSI
• Coupled Burst Pressure: 3,000 PSI
• Flow: 250 CFM
• Dixon: N-Series
• Bowes: 51000 Series
• Use of band-style clamps, crimped ferrules or interlocking clamps is suggested (see specific fitting recommendations on individual hose pages)
Frequently Bought Together
Quick Disconnect Coupler Brass 3/8" x 3/8-18
Couldn't load pickup availability
Universal Air Coupler Brass 3/8" x 3/8-18
Couldn't load pickup availability
Nipple, Industrial, 1/2'' Body, 1/4-18 Male NPTF, Steel
Couldn't load pickup availability
Coupler, Industrial, 1/4'' Body, 3/8-18 Female NPTF, Brass
Couldn't load pickup availability
Hose Barb Brass 3/16" x 1/8-27
Couldn't load pickup availability
Hose Barb Brass 1/8" x 1/8-27
Couldn't load pickup availability
Pipe Street Elbow Brass 90° 1/8-27 x 1/8-27
Couldn't load pickup availability
Pipe Coupling Brass 1/2-14 x 1/2-14
Couldn't load pickup availability
Pipe Close Nipple Brass 3/8-18 x 3/8-18
Couldn't load pickup availability
Barb-Lok Hose End 1/2" (-8) x 3/4-14 (-12)
Couldn't load pickup availability
Barb-Lok Hose End 1/4" (-4) x 9/16-18 (-6)
Couldn't load pickup availability
Barb-Tite™ Instrumentation Elbow 5/16 x 1/8"
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 18mm
Couldn't load pickup availability
Radiator Grille Nut M4.2-1.41
Couldn't load pickup availability
Air Distributor Defroster Push-Type Retainer
Couldn't load pickup availability
Product Description
Dual guide sleeve tabs will ensure smooth collar action during connection and disconnection. “Push-Twist and Click” connection provides a positive lock when connected. Pneumatically energized seal provides an airtight seal at all working pressures. Available safety-lock ring protects against accidental disconnection while coupling is in operation. Used for air hammers and large bore air tools. Used in underground boring, power utilities and equipment rentals.• OSHA Standard 29CFR, 926.302(b)(1) requires that pneumatic tools be secured to the hose or whip by positive means to prevent accidental disconnection – see Accessories
• Locking Mechanism: Latch tabs
• Meets MIL-C-3486 for Military applications
• Operating Pressure: 300 PSI
• Coupled Burst Pressure: 3,000 PSI
• Flow: 250 CFM
• Dixon: N-Series
• Bowes: 51000 Series
• Use of band-style clamps, crimped ferrules or interlocking clamps is suggested (see specific fitting recommendations on individual hose pages)
Technical Specifications
| Item#: | 20915 |
|---|---|
| Description | Industrial Quick Disconnect |
| Type | Nipple |
| Style | Bowes |
| Body Size | 1/2 " |
| Thread Style | Barb |
| Working Pressure | 500 PSI |
| Material | Steel |
| Hose I.D. | 3/8 " |
| Length | 4.36 " |
| Seal Material | Nitrile (Buna-N) |
| Standards | MIL-C-3486; A-A-50431A |
| Dixon Number | N4S3 |
| Hose Barb Size | 3/8 " |
| Locking Mechanism | Latch Tabs |
| Flow | 204 ft³/min |
| UNSPSC #: | 27131613 |
| TAA Compliant: | Yes |
| Weight: | 0.5 lb |
