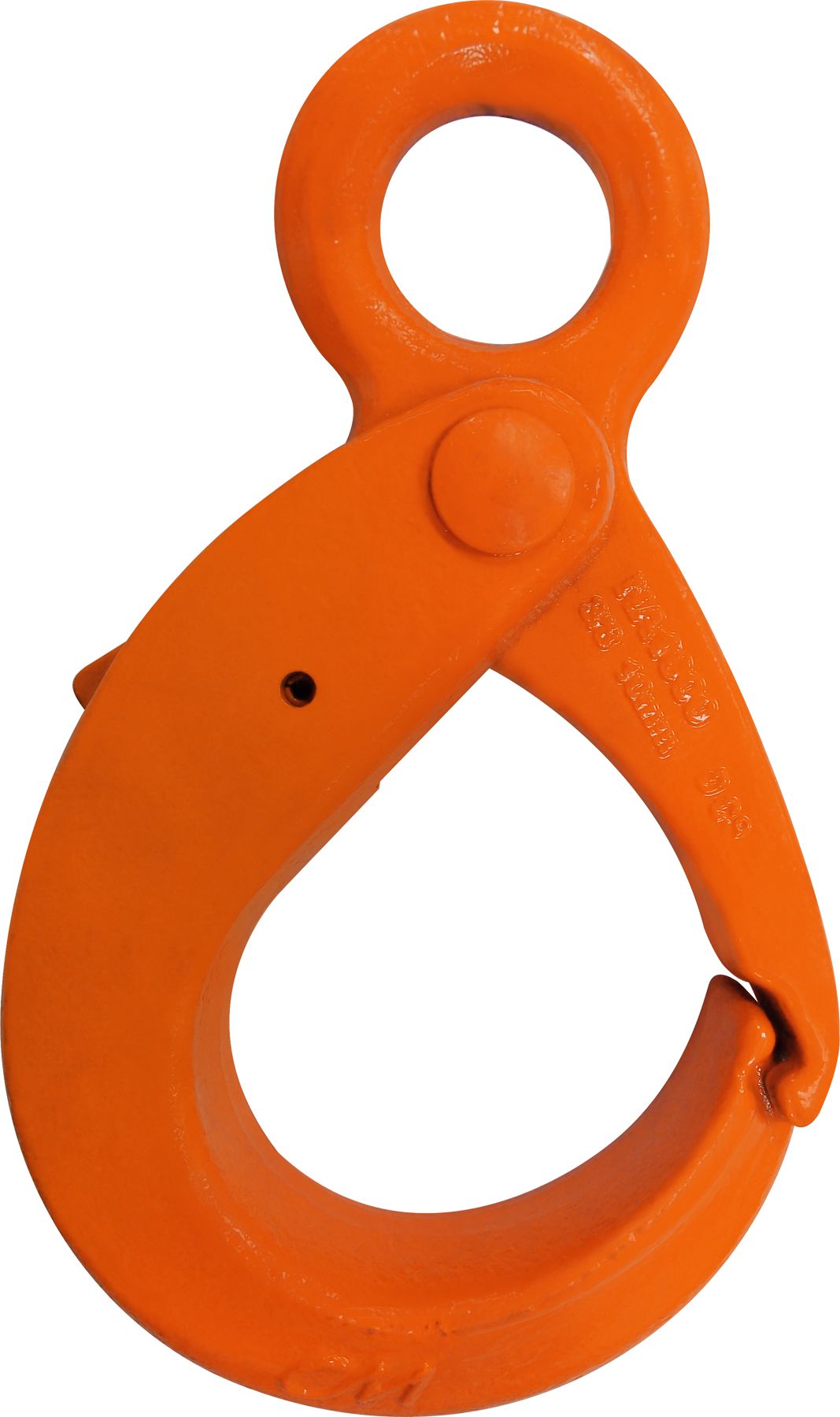

Bushing Swivel Style Latchlok Hook, Grade 100, 9/32", 4,300 lb WLL
(Pack of
1)
SKU:1429756 Item#: 1429756
• The eye easily positions to attach to the load
• 100% proof tested
• Fatigue rated to Grade 100 specifications
• Durable orange powder coated finish
The load must be swiveled and turned into position before attaching, lifting or moving a load.
• Do not apply load unless latch and hook are completely closed and locked
• Make certain that the latch does not support any part of the load
• When lifting, make certain that the load is firmly seated in the base (bowl) of the hook
• Inspect hook and latch periodically. If the hook or latch is damaged or if the latch fails to interlock with the tip, the hook should be removed from service
• Do not exceed the working load limit
• Do not use if the hook is visibly distorted, damaged or worn
• Keep body and other objects clear of the latch when closing to avoid the pinch point
• Do not side load or tip load hook
CAUTION: Do not exceed working load limits.
Frequently Bought Together
Repair Lap Link, 3/16", 225 lb WLL, Zinc
Couldn't load pickup availability
Hammerlok Coupling Link, Grade 80, 1", 47,700 lb WLL
Couldn't load pickup availability
Hammerlok Coupling Link, Grade 100, 5/8", 22,600 lb WLL
Couldn't load pickup availability
Grade 43 Clevis Grab Hook, 1/4", 2,600 lb WLL
Couldn't load pickup availability
Clevis Grab Hook, Grade 80, 5/8", 18,100 lb WLL
Couldn't load pickup availability
Eye Cradle Grab Hook, Grade 100, 9/32", 4,300 lb WLL
Couldn't load pickup availability
Wire Rope, Steel, Bare, 7x19, 3/8", 14,400 lbs Breaking Strength
Couldn't load pickup availability
Wire Rope, Steel, Vinyl Coated, 7x19, 3/16", 4,200 lbs Breaking Streng
Couldn't load pickup availability
Wire Rope, Steel, Nylon Coated, 7x7, 1/16", 480 lbs Breaking Strength
Couldn't load pickup availability
Bumper Clip Push-Type Retainer Nylon 18mm
Couldn't load pickup availability
Front/Rear Bumper Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Product Description
• The eye easily positions to attach to the load• 100% proof tested
• Fatigue rated to Grade 100 specifications
• Durable orange powder coated finish
The load must be swiveled and turned into position before attaching, lifting or moving a load.
• Do not apply load unless latch and hook are completely closed and locked
• Make certain that the latch does not support any part of the load
• When lifting, make certain that the load is firmly seated in the base (bowl) of the hook
• Inspect hook and latch periodically. If the hook or latch is damaged or if the latch fails to interlock with the tip, the hook should be removed from service
• Do not exceed the working load limit
• Do not use if the hook is visibly distorted, damaged or worn
• Keep body and other objects clear of the latch when closing to avoid the pinch point
• Do not side load or tip load hook
CAUTION: Do not exceed working load limits.
Technical Specifications
| Item#: | 1429756 |
|---|---|
| Manufacturer Model #: | M676005 |
| Type | Bushing Swivel Style Latchlok Hook |
| Grade | 100 |
| Chain Size | 9/32 " |
| Working Load Limit | 4,300 lb |
| Material | Alloy Steel |
| Color | Orange Powder Coated |
| Dimension A | 1.50 " |
| Dimension B | 1.33 " |
| Dimension D | 3.77 " |
| Dimension F | 1.64 " |
| Dimension H | 0.62 " |
| Dimension M | 7.17 " |
| Dimension P | 0.88 " |
| UNSPSC #: | 31162605 |
| TAA Compliant: | Yes |
| Weight: | 2.96 lb |
