Coll-O-Crimp Stationary Crimper, Crimps Thru 2"
(Pack of
1)
SKU:63700 Item#: 63700

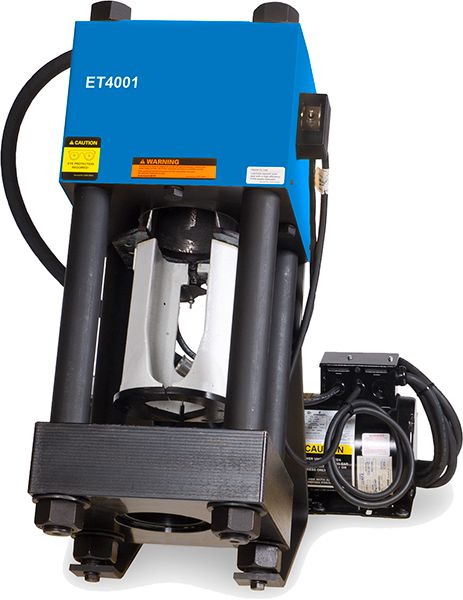

Create secure, fast connections with the bench-mounted Coll-O-Crimp® ET4001. Instead of waiting for expensive hose assemblies to be made, get factory-quality hydraulic hose assemblies anywhere you need them and save time and labor costs in the process. The ET4001 is designed to crimp 4- and 6-spiral hose from 1/2" to 2".
• Overall press capacity of up to 2" for braided hose, and 4- and 6-wire spiral hose
• Space-saving size: 12"W x 27"H x 21"D
System includes:
Coll-O-Crimp® Press ET4001
220V Electric Pump T-441
Switch 140-06741
Hose Assembly T-410-22
Lubricant T-400-G
4S Series Collets:
(-8) ET525DC-4S8, Item No. 1555819
(-12) ET525DC-4S12, Item No. 1555830
(-16) ET525DC-4S16, Item No. 1555859
(-20) ET525DC-4S20, Item No. 1555794
(-24) ET575DC-4S24, Item No. 1555792
(-32) ET575DC-4S32, Item No. 1555834
Z Series Collets:
(-4) ET525DC-4Z, Item No. 1555779
(-6) ET525DC-6Z, Item No. 1555864
(-8) ET525DC-8Z, Item No. 1555816
(-12) ET525DC-12Z, Item No. 1555778
(-16) ET525DC-16Z, Item No. 1555833
(-20) ET525DC-20Z, Item No. 1555783
(-24) ET525DC-24Z, Item No. 1555863
(-32) ET525DC-32Z, Item No. 1555758
Spacer Rings/Machine Bowls:
Grey – ET525SR-120A, Item No. 1555861
Blue – ET575SR-135A, Item No. 1555843
Orange – ET525SR-180A, Item No. 1555811
Pink– ET525SR-225A, Item No. 1555777
Navy Blue– ET525SR-240A, Item No. 1555853
Machine Bowl– ET4000AR-002, Item No. 27124
New and Improved Coll-O-Crimp® ET4001• Longer tie rods and pusher allow easier insertion of long hose fittings• Larger/longer pusher halves allow easier insertion of long drop fittings• New valve and 3-way switch allow jogging of pusher for easier positioning of fitting• Magnetic lamp provides improved illumination of work area
NOTE: Retrofits of older models can be done at the factory.
Frequently Bought Together
Spacer Ring ET4000SR-M560A
$0.00
Couldn't load pickup availability
Hose Crimp Machine Collet ET1000SR-M395D
$0.00
Couldn't load pickup availability
Die Cage FT1380-200-M165
$0.00
Couldn't load pickup availability
Spacer Ring Pink/White
$0.00
Couldn't load pickup availability
Spacer Ring Green/White
$0.00
Couldn't load pickup availability
Air Conditioning O-Ring HSN Green
$0.00
Couldn't load pickup availability
Miniature Clamp SS 5/16 to 7/8"
$0.00
Couldn't load pickup availability
Worm Gear Hose Clamp Assortment with Rack
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Steel 1/4" x 3/8-18
$0.00
Couldn't load pickup availability
Metric Indented Hex Head Bolt with 17mm Washer
$0.00
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Rocker Molding Clip with Sealer Nylon Blue 17mm
$0.00
Couldn't load pickup availability
Product Description
Create secure, fast connections with the bench-mounted Coll-O-Crimp® ET4001. Instead of waiting for expensive hose assemblies to be made, get factory-quality hydraulic hose assemblies anywhere you need them and save time and labor costs in the process. The ET4001 is designed to crimp 4- and 6-spiral hose from 1/2" to 2".• Overall press capacity of up to 2" for braided hose, and 4- and 6-wire spiral hose
• Space-saving size: 12"W x 27"H x 21"D
System includes:
Coll-O-Crimp® Press ET4001
220V Electric Pump T-441
Switch 140-06741
Hose Assembly T-410-22
Lubricant T-400-G
4S Series Collets:
(-8) ET525DC-4S8, Item No. 1555819
(-12) ET525DC-4S12, Item No. 1555830
(-16) ET525DC-4S16, Item No. 1555859
(-20) ET525DC-4S20, Item No. 1555794
(-24) ET575DC-4S24, Item No. 1555792
(-32) ET575DC-4S32, Item No. 1555834
Z Series Collets:
(-4) ET525DC-4Z, Item No. 1555779
(-6) ET525DC-6Z, Item No. 1555864
(-8) ET525DC-8Z, Item No. 1555816
(-12) ET525DC-12Z, Item No. 1555778
(-16) ET525DC-16Z, Item No. 1555833
(-20) ET525DC-20Z, Item No. 1555783
(-24) ET525DC-24Z, Item No. 1555863
(-32) ET525DC-32Z, Item No. 1555758
Spacer Rings/Machine Bowls:
Grey – ET525SR-120A, Item No. 1555861
Blue – ET575SR-135A, Item No. 1555843
Orange – ET525SR-180A, Item No. 1555811
Pink– ET525SR-225A, Item No. 1555777
Navy Blue– ET525SR-240A, Item No. 1555853
Machine Bowl– ET4000AR-002, Item No. 27124
New and Improved Coll-O-Crimp® ET4001• Longer tie rods and pusher allow easier insertion of long hose fittings• Larger/longer pusher halves allow easier insertion of long drop fittings• New valve and 3-way switch allow jogging of pusher for easier positioning of fitting• Magnetic lamp provides improved illumination of work area
NOTE: Retrofits of older models can be done at the factory.
Technical Specifications
| Item#: | 63700 |
|---|---|
| Manufacturer Model #: | ET4001-006 |
| Category | Crimper System |
| Description | Coll-O-Crimp® ET4001 |
| Quantity Per Package | 1.0000 |
| UNSPSC #: | 27121500 |
| TAA Compliant: | Yes |
| Weight: | 630.0 lb |
