Home Brass Compression Connector Brass 1/2-14 x 3/8"
Brass

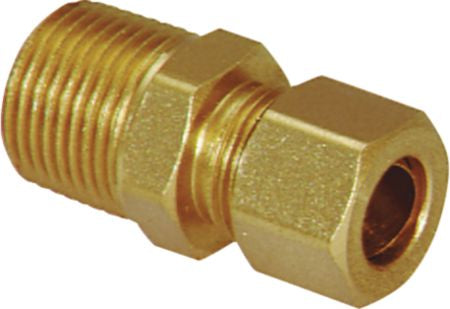

Compression Connector, Brass, 1/2-14 x 3/8", Male NPT x Tube, 500PSI
(Pack of 5)

Item#: 5073

Lawson

• UL (No. AU 1042) approved for hazardous liquid, fuel equipment and gas• Meets SAE hydraulic tube fittings standards as well as ASA and ASME codes for pressure piping• Compatible tubing: Copper, brass, aluminum and plastic (soft plastic tubing requires support inside)• Pressure: Up to 2,000 PSI on 1/8" to 1/4" tubing; 1,000 PSI on 5/16" to 1/2" tubing; 750 PSI on 3/4" and 1" tubing• Temperature range: –65°F to +250°F (–54°C to +121°C)

Read More
Check Availability

Frequently Bought Together


Compression Nut Brass 1/4"

Item#: 5011

Compression Sleeve Brass 1/8" Tube

Item#: 5000

Compression Self-Align Connector 1/4-18 x 1/2"

Item#: 54775
No product placeholder

Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 5/16 x 1/4"

Item#: 87622

Pipe Bushing Brass 3/4-14 x 1/2-14

Item#: 86662
No product placeholder

Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 5/16 x 1/8"

Item#: 87621

Pipe Bushing Brass 1/2-14 x 3/8-18

Item#: 5287

DOT Compression Connector Male Brass 3/8 x 3/8"

Item#: 84269

Super 77 Miniature Hose Clamp SS 7/32 to 5/8"

Item#: 86327

Molding Clip with Sealer Nylon White 11.5 x 21

Item#: 1457520

Phillips Truss Head Sheet Metal Screw Steel 15mm

Item#: P13770

Wheel Opening Drive Rivet Aluminum 5/32"

Item#: P13787

Product Description

• UL (No. AU 1042) approved for hazardous liquid, fuel equipment and gas• Meets SAE hydraulic tube fittings standards as well as ASA and ASME codes for pressure piping• Compatible tubing: Copper, brass, aluminum and plastic (soft plastic tubing requires support inside)• Pressure: Up to 2,000 PSI on 1/8" to 1/4" tubing; 1,000 PSI on 5/16" to 1/2" tubing; 750 PSI on 3/4" and 1" tubing• Temperature range: –65°F to +250°F (–54°C to +121°C)

Technical Specifications

Item#: 5073
Fitting Type Compression
Configuration Male Connector
Material Brass
Connection Type A x B Male NPT x Tube
Fitting Dimension A 1/2-14
Fitting Dimension B 3/8 "
Working Pressure 500 PSI
Temperature Range -65 to 250 F
UNSPSC #: 40170000
TAA Compliant: No
Weight: 0.5 lb
