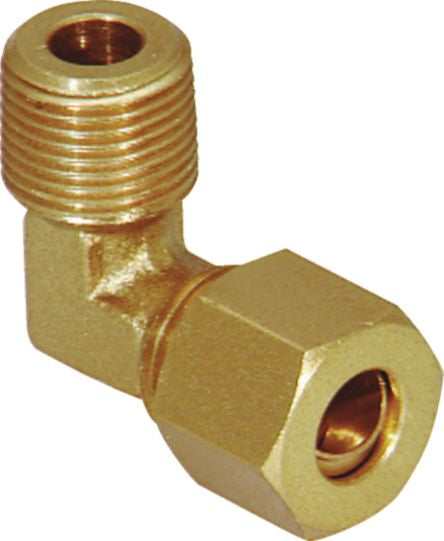

Compression Elbow, Brass, 90°, 1/8-28 x 4", Male BSPT x Tube, 500PSI
(Pack of
5)
SKU:51041 Item#: 51041
Male BSPT Thread (A) x Tube (B)
• All components conform to at least one of the following standards: ISO, CETOP, AFNOR, BNA, CNOMO• Temperature ranges: –65°F to +250°F (–54°C to +121°C) for copper, brass, aluminum and thin-walled steel tubing; 5°F to 160°F (–15°C to +71°C) for nylon tubing• Please refer to our Product Manual for specific pressure ratings. Examples: 4mm copper tubing – 2,100 PSI; 12mm copper tubing – 500 PSI; 4mm nylon tubing at 70°F (21°C) – 360 PSI; 12mm nylon tubing at 70°F (21°C) – 175 PSI
• Applications: Air, water, fuel oil, hydraulic oils, hydrocarbon and many other fluids• Compatible tubing: Copper, brass, aluminum, plastic and thin-walled steel tubing (plastic tubing requires a tube support. Thin-walled steel tubing requires the use of a steel nut and sleeve)
Frequently Bought Together
Compression Nut Brass 1/4"
Couldn't load pickup availability
Compression Sleeve Brass 1/8" Tube
Couldn't load pickup availability
Compression Self-Align Connector 1/4-18 x 1/2"
Couldn't load pickup availability
Pipe Street Tee Brass 1/4-18 x 1/4-18 x 1/4-18
Couldn't load pickup availability
Push-to-Connect Connector Brass 5/16 x 1/4"
Couldn't load pickup availability
Pipe Bushing Brass 3/4-14 x 1/2-14
Couldn't load pickup availability
Hose Clamp 301 SS 1/2 to 29-32"
Couldn't load pickup availability
Silicone Coolant/Heater Hose Clamp 9/16 to 1-1/16"
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 3/4 to 1-3/4"
Couldn't load pickup availability
Front Bumper Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Front Bumper and Radiator Support Drive Rivet
Couldn't load pickup availability
Metric Indented Hex Head Bolt with 17mm Washer
Couldn't load pickup availability
Product Description
Male BSPT Thread (A) x Tube (B)• All components conform to at least one of the following standards: ISO, CETOP, AFNOR, BNA, CNOMO• Temperature ranges: –65°F to +250°F (–54°C to +121°C) for copper, brass, aluminum and thin-walled steel tubing; 5°F to 160°F (–15°C to +71°C) for nylon tubing• Please refer to our Product Manual for specific pressure ratings. Examples: 4mm copper tubing – 2,100 PSI; 12mm copper tubing – 500 PSI; 4mm nylon tubing at 70°F (21°C) – 360 PSI; 12mm nylon tubing at 70°F (21°C) – 175 PSI
• Applications: Air, water, fuel oil, hydraulic oils, hydrocarbon and many other fluids• Compatible tubing: Copper, brass, aluminum, plastic and thin-walled steel tubing (plastic tubing requires a tube support. Thin-walled steel tubing requires the use of a steel nut and sleeve)
Technical Specifications
| Item#: | 51041 |
|---|---|
| Fitting Type | Compression |
| Angle | 90 ° |
| Configuration | Elbow |
| Material | Brass |
| Connection Type A x B | Male BSPT x Tube |
| Fitting Dimension A | 1/8-28 |
| Fitting Dimension B | 4 mm |
| Working Pressure | 500 PSI |
| Temperature Range | -65 to 250 F |
| UNSPSC #: | 40170000 |
| TAA Compliant: | Yes |
| Weight: | 0.2 lb |
