Home Brass Compression Self-Align Connector 1/4-18 x 1/2"
Brass

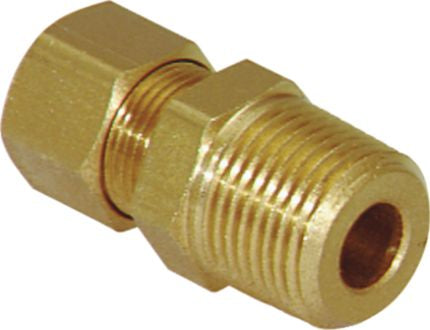

Compression Self-Align Connector, Brass, 1/4-18 x 1/2", Male NPT x Tube, 500PSI
(Pack of 5)

Lawson

• Compatible tubing: Copper, brass, aluminum and plastic. Not recommended for steel tubing. Soft plastic tubing requires support inside• Pressure: Up to 2,000 PSI on 1/8" to 1/4" tubing, 1,000 PSI on 5/16" to 1/2" tubing and 750 PSI on 3/4" tubing• Temperature range: –65°F to +250°F (–54°C to +121°C)
• Applications: Instrumentation, water, air and lubrication systems

Read More
Check Availability

Frequently Bought Together


Pipe Close Nipple Brass 1/4-18 x 1/4-18

Item#: 5298

Pipe Bushing Brass 3/8-18 x 1/4-18

Item#: 5284

Pipe Adapter Brass 1/4-18 x 1/4-18

Item#: 5277

Pipe Close Nipple Brass 1/4-18 x 1/4-18

Item#: 5298

Pipe Bushing Brass 3/8-18 x 1/4-18

Item#: 5284

Pipe Adapter Brass 1/4-18 x 1/4-18

Item#: 5277

Slotted Hex Head Hose Clamp 1-9/16 to 2-1/2"

Item#: P28925M01

Miniature Clamp SS 1/8 to 7/16"

Item#: P62057M01

Miniature Clamp SS 3/16 to 5/8"

Item#: P63858M01

Bumper and Wheel Well Liner Push-Type Retainer

Item#: 1404768

Engine Under Cover Drive Rivet Plastic 7mm Hole

Item#: KT13998

Bumper Fascia General Purpose Split Rivet 3/16"

Item#: KT13747

Product Description

• Compatible tubing: Copper, brass, aluminum and plastic. Not recommended for steel tubing. Soft plastic tubing requires support inside• Pressure: Up to 2,000 PSI on 1/8" to 1/4" tubing, 1,000 PSI on 5/16" to 1/2" tubing and 750 PSI on 3/4" tubing• Temperature range: –65°F to +250°F (–54°C to +121°C)
• Applications: Instrumentation, water, air and lubrication systems

Technical Specifications

Item#: 54775
Fitting Type Compression Selfalign
Configuration Male Connector
Material Brass
Connection Type A x B Male NPT x Tube
Fitting Dimension A 1/4-18
Fitting Dimension B 1/2 "
Working Pressure 500 PSI
Temperature Range -65 to 250 F
UNSPSC #: 40170000
TAA Compliant: Yes
Weight: 0.53 lb
