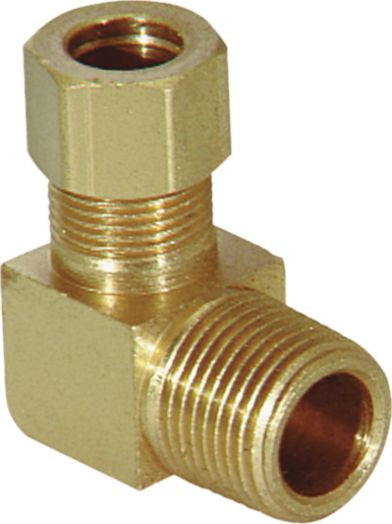

Compression Self-Align Elbow, Brass, 90°, 1/8-27 x 3/8", Male NPT x Tube, 500PSI
(Pack of
5)
Compatible tubing: Copper, brass, aluminum and plastic. Not recommended for steel tubing. Soft plastic tubing requires support inside Pressure: Up to 2,000 PSI on 1/8" to 1/4" tubing, 1,000 PSI on 5/16" to 1/2" tubing and 750 PSI on 3/4" tubing Temperature range: 65°F to +250°F (54°C to +121°C)
Applications: Instrumentation, water, air and lubrication systems
Frequently Bought Together
Compression Self-Align Connector 1/4-18 x 1/2"
Couldn't load pickup availability
Pipe Branch Tee Brass 1/8-27 x 1/8-27 x 1/8-27
Couldn't load pickup availability
Air Line Connector Brass SAE 45° Flare 1/4 x 3/8"
Couldn't load pickup availability
Copper Extended Coupling, No Stop, 1/2" x 1/2"
Couldn't load pickup availability
Copper Coupling, 1/2" x 1/2"
Couldn't load pickup availability
Copper Extended Coupling, No Stop, 1" x 1"
Couldn't load pickup availability
Hose Clamp 301 SS 9/16 to 1-1/16"
Couldn't load pickup availability
FLEXAIR 3/8" I.D. x 25' air hose
Couldn't load pickup availability
FLEXAIR 3/8" I.D. x 50' air hose assembly w/ Industrial safety coupler
Couldn't load pickup availability
Fender Apron Drive Rivet 8mm Hole
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Fender Bumper Shield Retainer 11/16"
Couldn't load pickup availability
Product Description
Compatible tubing: Copper, brass, aluminum and plastic. Not recommended for steel tubing. Soft plastic tubing requires support inside Pressure: Up to 2,000 PSI on 1/8" to 1/4" tubing, 1,000 PSI on 5/16" to 1/2" tubing and 750 PSI on 3/4" tubing Temperature range: 65°F to +250°F (54°C to +121°C) Applications: Instrumentation, water, air and lubrication systems
Technical Specifications
| Item#: | 26715 |
|---|---|
| Fitting Type | Compression Selfalign |
| Angle | 90 ° |
| Configuration | Elbow |
| Material | Brass |
| Connection Type A x B | Male NPT x Tube |
| Fitting Dimension A | 1/8-27 |
| Fitting Dimension B | 3/8 " |
| Working Pressure | 500 PSI |
| Temperature Range | -65 to 250 F |
| UNSPSC #: | 40170000 |
| TAA Compliant: | Yes |
| Weight: | 0.55 lb |
Product Restrictions
