Confined Space Kit with Tripod, 60 ft 3-Way Self-Retracting Lifeline with Rescue Capability, Pulley, Self-Locking Carabiner, Hoist Bracket, Aluminum
(Pack of
1)
SKU:1648719 Item#: 1648719

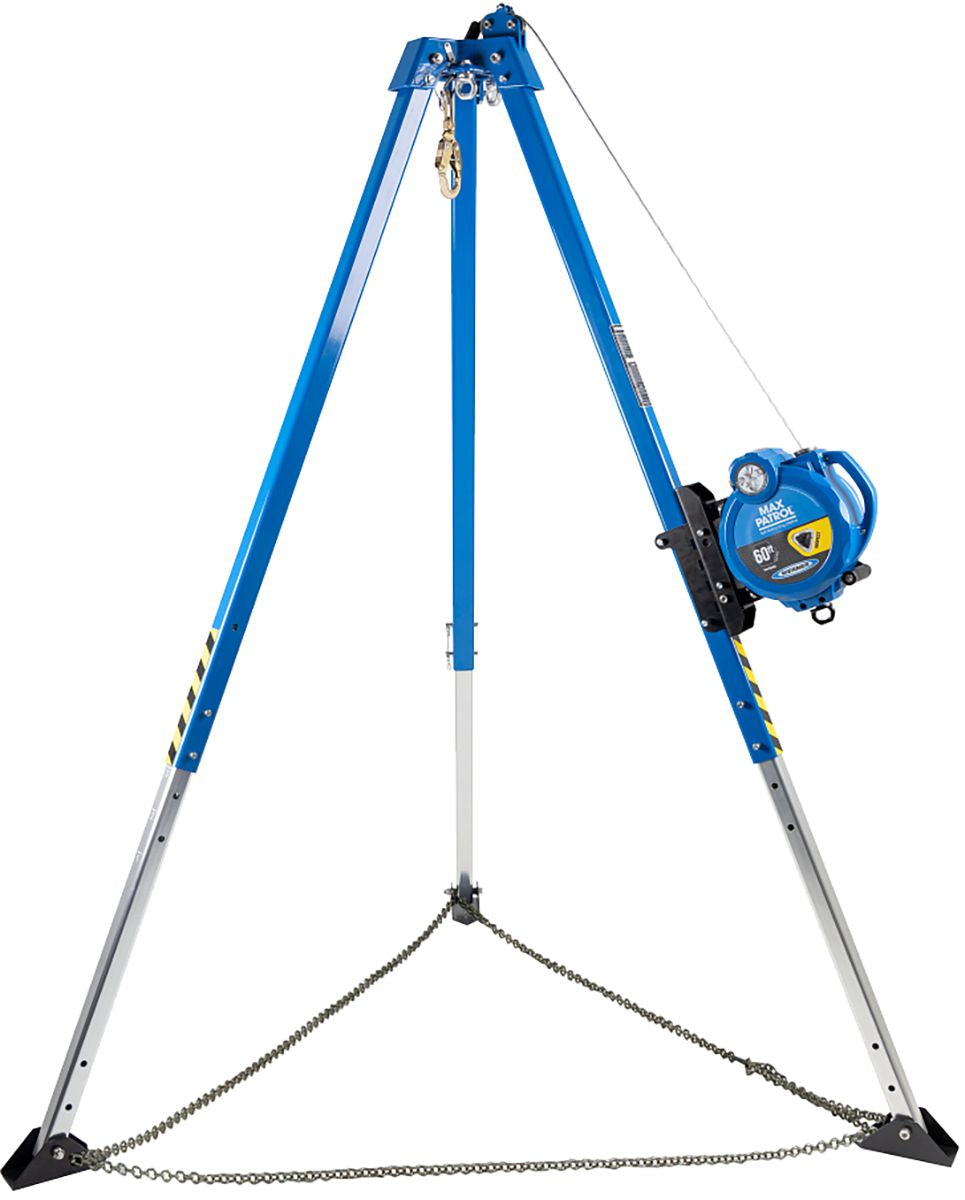

The Werner T700000X Confined Space Kit includes the T100108 8ft Aluminum Tripod, the T410060 60-foot 3-Way Self-Retracting Lifeline with Rescue Capability (SRL-R), T510045 60-foot Material Hoist, and T200007 Pulley and Carabiner. Two T100008B Mounting Brackets attach the 60-foot 3-Way SRL-R and the 60-foot Material Hoist to any leg of the tripod. Also included is the T510080B Hoist Bracket that attaches the 60-foot Material Hoist. The Tripod extends from 58-97-inches in height for installation over openings with a maximum diameter of 42-inches when fully extended and meets the requirements of ANSI Z359.18-2017 Type A. The 3-Way SRL-R is designed for a single user with a capacity up to 310 pounds total working weight and has an aluminum housing with a lifting ratio of 6.5:1. When tested to the requirements of the ANSI Z359.14-2021 standard for Class 1 for SRLs, the 3-Way SRL-R has an average arrest force of 1,350 pounds and a maximum arrest distance of 24-inches. The hoist is capable of raising and lowering loads of up to 450 pounds. The Material Hoist has 60 feet of 3⁄16-inch diameter galvanized steel cable.
• Confined Space Kit with Tripod, 60-foot 3-Way SRL-R, Bracket, Pulley, Carabiner, Hoist Bracket, and 60-foot Hoist
• Confined Space Kit includes T100108 8ft Aluminum Tripod, the T410060 60-foot 3-Way SRL-R, (2) T100008B Mounting Brackets, T510080B Hoist Bracket, T510045 60-foot Material Hoist and T200007 Pulley and carabiner
• High strength, lightweight Aluminum Tripod extends from 58-inches to 97-inches in height
• Tripod meets ANSI Z359.18-2017 Type A and OSHA regulations
• The 60-foot 3-Way SRL-R has maximum arrest distance of 24-inches
• 3-Way SRL-R meets ANSI z359.14-2021 Class 1 SRL-R and OSHA Standards
• Material Hoist is capable of raising and lowering loads of up to 450 lbs.
• Pulley is for use with up to a 3/16-inch diameter steel cable and has an 8,100 lbs. tensile breaking strength
Frequently Bought Together
Squids 3755 Self, Adhering Tool Tethering Tape
$0.00
Couldn't load pickup availability
Squids 5540 Barcode Scanner Holster for Gun Grip Mobile Computers, Belt Loop
$0.00
Couldn't load pickup availability
Squids 3137 Padded Barcode Scanner Sling Lanyard for Mobile Computers
$0.00
Couldn't load pickup availability
C111206 6ft Web Positioning Lanyard (1in Web, Snap Hook, Rebar Hook)
$0.00
Couldn't load pickup availability
LITEFIT Plus H312004XQP Standard (Back D-Ring) Harness (XL)
$0.00
Couldn't load pickup availability
R430011-R 11ft Max Patrol Self-Retracting Lifeline w/Aluminum Rebar
$0.00
Couldn't load pickup availability
Dust Mask
$0.00
Couldn't load pickup availability
Pancake Particulate Filter, P100
$0.00
Couldn't load pickup availability
Diamond Texture Premium Nitrile Gloves, Orange, 8 Mil, Large, 100/Box
$0.00
Couldn't load pickup availability
Premium Latex Gloves, Natural, 8 Mil, Large, 1,000/Case
$0.00
Couldn't load pickup availability
Butyl Windshield Tape 3/8" x 15'
$0.00
Couldn't load pickup availability
Universal High-Visibility Sorbent Pad
$0.00
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Rocker Molding Clip with Sealer Nylon Blue 17mm
$0.00
Couldn't load pickup availability
Fender and Bumper Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Product Description
The Werner T700000X Confined Space Kit includes the T100108 8ft Aluminum Tripod, the T410060 60-foot 3-Way Self-Retracting Lifeline with Rescue Capability (SRL-R), T510045 60-foot Material Hoist, and T200007 Pulley and Carabiner. Two T100008B Mounting Brackets attach the 60-foot 3-Way SRL-R and the 60-foot Material Hoist to any leg of the tripod. Also included is the T510080B Hoist Bracket that attaches the 60-foot Material Hoist. The Tripod extends from 58-97-inches in height for installation over openings with a maximum diameter of 42-inches when fully extended and meets the requirements of ANSI Z359.18-2017 Type A. The 3-Way SRL-R is designed for a single user with a capacity up to 310 pounds total working weight and has an aluminum housing with a lifting ratio of 6.5:1. When tested to the requirements of the ANSI Z359.14-2021 standard for Class 1 for SRLs, the 3-Way SRL-R has an average arrest force of 1,350 pounds and a maximum arrest distance of 24-inches. The hoist is capable of raising and lowering loads of up to 450 pounds. The Material Hoist has 60 feet of 3⁄16-inch diameter galvanized steel cable.• Confined Space Kit with Tripod, 60-foot 3-Way SRL-R, Bracket, Pulley, Carabiner, Hoist Bracket, and 60-foot Hoist
• Confined Space Kit includes T100108 8ft Aluminum Tripod, the T410060 60-foot 3-Way SRL-R, (2) T100008B Mounting Brackets, T510080B Hoist Bracket, T510045 60-foot Material Hoist and T200007 Pulley and carabiner
• High strength, lightweight Aluminum Tripod extends from 58-inches to 97-inches in height
• Tripod meets ANSI Z359.18-2017 Type A and OSHA regulations
• The 60-foot 3-Way SRL-R has maximum arrest distance of 24-inches
• 3-Way SRL-R meets ANSI z359.14-2021 Class 1 SRL-R and OSHA Standards
• Material Hoist is capable of raising and lowering loads of up to 450 lbs.
• Pulley is for use with up to a 3/16-inch diameter steel cable and has an 8,100 lbs. tensile breaking strength
Technical Specifications
| Item#: | 1648719 |
|---|---|
| Manufacturer Model #: | T700000X |
| Type | Confined Space Kit |
| Material | Aluminum |
| Width | 39.6 " |
| Approvals | ANSI Z359.18-2017 Type A, ANSI Z359.14-2021 Class 1 SRL-R, OSHA |
| Gate Opening | 3/4 " |
| Gate Type | Self-Closing; Self-Locking |
| Closure Type | Self-Locking Carabiner |
| Height | 96 " |
| Quantity Per Package | 1 ea. |
| UNSPSC #: | 46182301 |
| TAA Compliant: | Yes |
