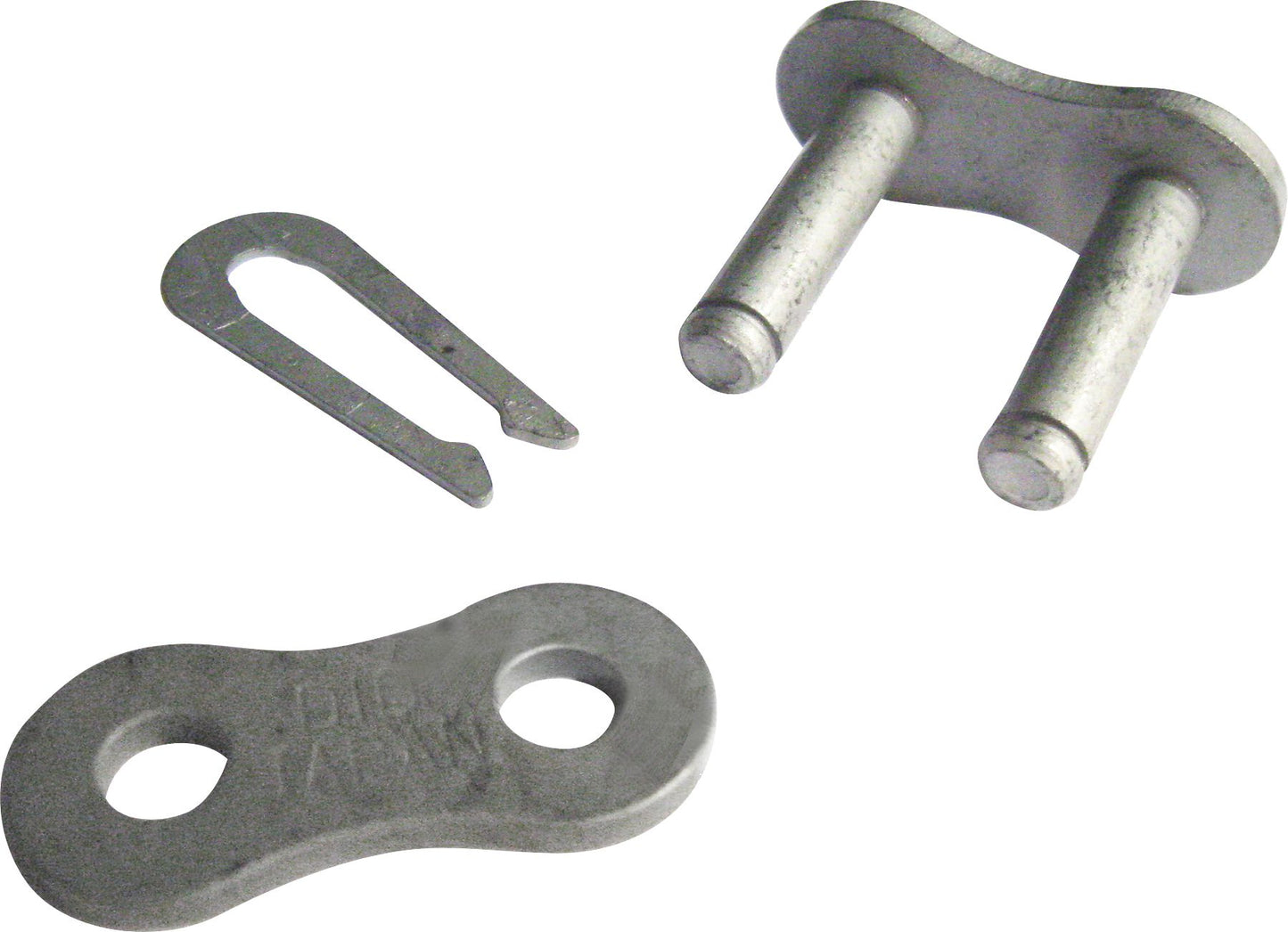

Connecting Link, Single Strand, Hi-Guard, Steel, Zinc Plated, Industry No. 80, 1" Pitch, 16,830lbs Average Tensile Strength
(Pack of
5)
SKU:1443402 Item#: 1443402
Hi-Guard chain is second in corrosion resistance performance next to a stainless steel chain. A luster-less white protective film is formed on the surface of the chain by a special baking process. The Hi-Guard chain has excellent galvanic corrosion resistance and rust resistance. Since the film is heat-resistant up to 482°F, it protects the chain even in high temperature. The Hi-Guard chain has slightly lower tensile strength than standard chain, but it is equivalent in maximum allowable load and wear resistance.
Frequently Bought Together
Offset Link (Half Link), Single Strand, Steel, Industry No. 50
$0.00
Couldn't load pickup availability
Connecting Link, Single Strand, Steel, Industry No. 12B
$0.00
Couldn't load pickup availability
Connecting Link, Double Pitch, A-Type, Steel, Industry No. A 2060
$0.00
Couldn't load pickup availability
ShelfMaxâ„¢ Bin, Blue, 17-5/8" x 8/3/8" x 6"
$0.00
Couldn't load pickup availability
Shelf Bin, Yellow, 17-7/8" x 6-5/8" x 4"
$0.00
Couldn't load pickup availability
ShelfMaxâ„¢ Bin, Blue, 11-5/8" x 6-5/8" x 6"
$0.00
Couldn't load pickup availability
Offset Link (Half Link), Single Strand, Stainless Steel, Industry No.
$0.00
Couldn't load pickup availability
Connecting Link, Single Strand, Stainless Steel, Industry No. 80
$0.00
Couldn't load pickup availability
Connecting Link, Double Pitch-Conveyor, Steel, Industry No. C2060H
$0.00
Couldn't load pickup availability
Fender Liner Screw Grommet Nylon M5.5
$0.00
Couldn't load pickup availability
Molding Clip with Sealer Nylon White 10 x 12mm
$0.00
Couldn't load pickup availability
Front Bumper Push-Type Retainer Nylon 10mm
$0.00
Couldn't load pickup availability
Product Description
Hi-Guard chain is second in corrosion resistance performance next to a stainless steel chain. A luster-less white protective film is formed on the surface of the chain by a special baking process. The Hi-Guard chain has excellent galvanic corrosion resistance and rust resistance. Since the film is heat-resistant up to 482°F, it protects the chain even in high temperature. The Hi-Guard chain has slightly lower tensile strength than standard chain, but it is equivalent in maximum allowable load and wear resistance.Technical Specifications
| Item#: | 1443402 |
|---|---|
| Manufacturer Model #: | CL80-E |
| Configuration | Connecting Link |
| Type | Single Strand |
| Style | Standard |
| Material | Steel |
| Finish | Zinc Plate |
| Industry Number | 80 |
| Pitch | 1 " |
| Roller Width | 0.625 " |
| Roller Diameter | 0.625 " |
| Plate Thickness | 0.126 " |
| Plate Height | 0.945 " |
| Average Tensile Strength | 16,830 lb |
| Maximum Load | 3,300 lb |
| UNSPSC #: | 31163027 |
| TAA Compliant: | Yes |
