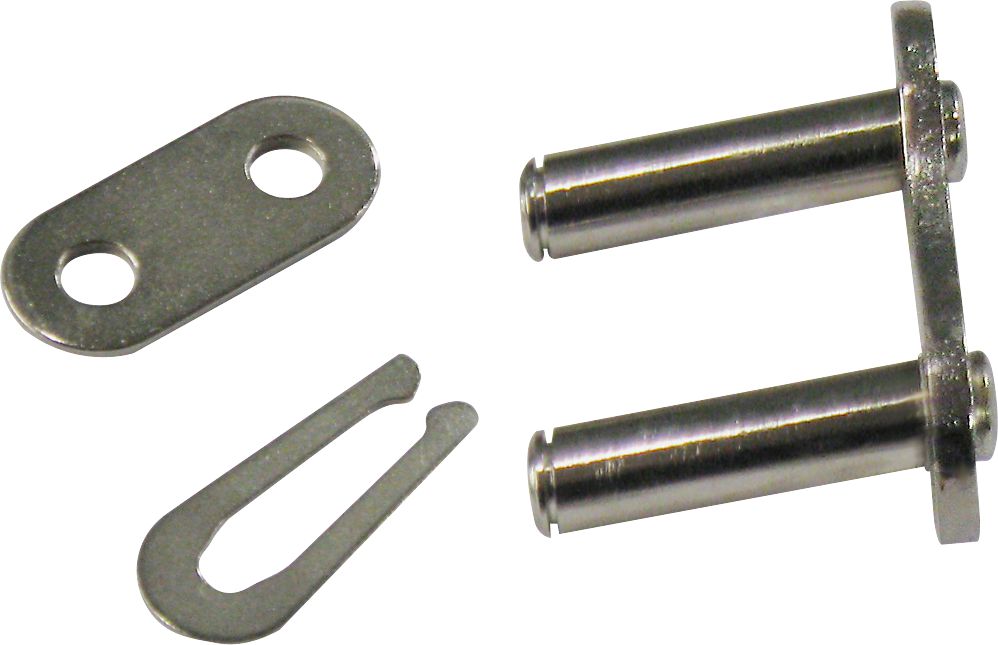

Connecting Link, Single Strand, Steel, Nickel Plated, Industry No. 40, 1/2" Pitch, 4,290lbs Average Tensile Strength
(Pack of
5)
SKU:1443368 Item#: 1443368
Nickel-plated chain provides increased corrosion resistance. In applications where chain is exposed to the possibility of hydrogen brittlement caused by acid vapor or salty environment, nickel plating delays the corrosive effect on the chain.
Frequently Bought Together
Offset Link (Half Link), Double Strand, Steel, Industry No. 08B-2
Item#: 1443380
$0.00
Couldn't load pickup availability
Connecting Link, Single Strand, Steel, Industry No. 06B
Item#: 1443464
$0.00
Couldn't load pickup availability
Offset Link (Half Link), Single Strand, Heavy, Steel, Industry No. 80H
Item#: 1443416
$0.00
Couldn't load pickup availability
Wire Rope Uncoated 1960 Safe Load 5/16" x 100'
Item#: 63926
$0.00
Couldn't load pickup availability
20' Aluminum Plank & Stages
Item#: 1329266
$0.00
Couldn't load pickup availability
Wire Rope Uncoated 3200 Lb Safe Load 7/16" x 100'
Item#: 64287
$0.00
Couldn't load pickup availability
Roller Chain, Single Strand, Heavy, Steel, Industry No. 60H
Item#: 85360
$0.00
Couldn't load pickup availability
Roller Chain, Single Strand, Steel, Industry No. 80
Item#: 85359
$0.00
Couldn't load pickup availability
Roller Chain, Single Strand, Steel, Industry No. 35
Item#: 85354
$0.00
Couldn't load pickup availability
Front Bumper Drive Rivet Plastic 7mm Hole
Item#: P85438
$0.00
Couldn't load pickup availability
Front Bumper Push-Type Retainer Nylon 20mm
Item#: P15599
$0.00
Couldn't load pickup availability
Metric Indented Hex Head Bolt with 17mm Washer
Item#: KT11580
$0.00
Couldn't load pickup availability
Product Description
Nickel-plated chain provides increased corrosion resistance. In applications where chain is exposed to the possibility of hydrogen brittlement caused by acid vapor or salty environment, nickel plating delays the corrosive effect on the chain.Technical Specifications
| Item#: | 1443368 |
|---|---|
| Manufacturer Model #: | CL40N |
| Configuration | Connecting Link |
| Type | Single Strand |
| Style | Standard |
| Material | Steel |
| Finish | Nickel Plate |
| Industry Number | 40 |
| Pitch | 1/2 " |
| Roller Width | 0.313 " |
| Roller Diameter | 0.312 " |
| Plate Thickness | 0.059 " |
| Plate Height | 0.472 " |
| Minimum Tensile Strength | 3,520 lb |
| Average Tensile Strength | 4,290 lb |
| Maximum Load | 836 lb |
| UNSPSC #: | 31163027 |
| TAA Compliant: | Yes |
| Weight: | 0.1 lb |
