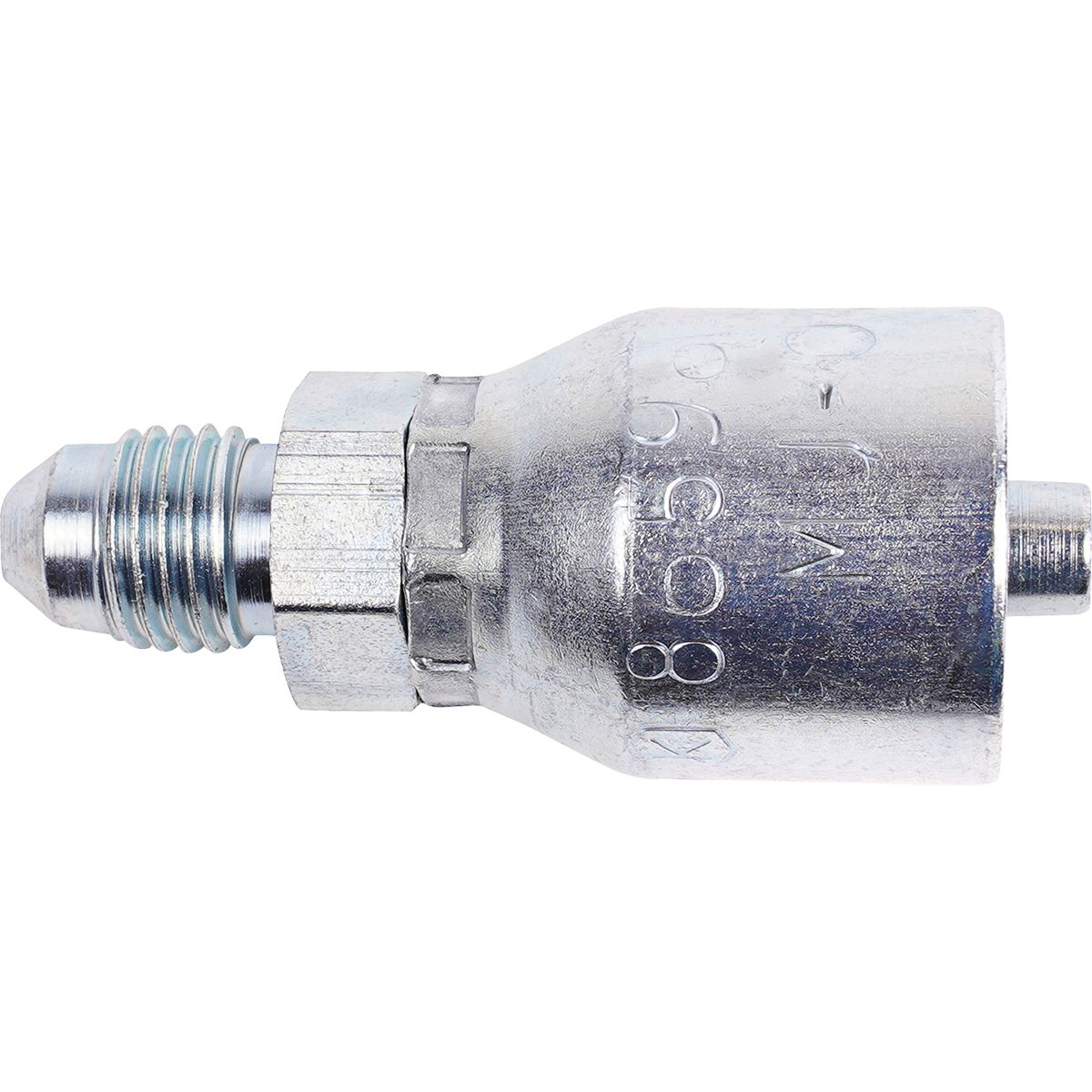

KURT Hydraulics K2 Carbon Steel Crimp-On Coupling DIN Light, Male Rigid, 1/4" (-4) Hose x M16 X 1.5
(Pack of
1)
SKU:DY54261074 Item#: DY54261074
• Recommended hose to be used with this style of couplings are: SAE100R1SN, SAE100R2SN, SAE100R16S, SAE100R17, KURT TUFF Hose
• Sizes: (-4) through (-10)
• Reduced size Bite-Wire shell for good compact hose fit
• Excellent performing coupling on new compact hoses
• Large selection of ends available
Frequently Bought Together
Inner Fender Shield Attaching Clip Nylon Black
Item#: P27685
$0.00
Couldn't load pickup availability
Front Fender Liner Push-Type Retainer Nylon 20mm
Item#: P24252
$0.00
Couldn't load pickup availability
Bumper Drive Rivet Plastic 10mm Hole
Item#: P85437
$0.00
Couldn't load pickup availability
Product Description
• Recommended hose to be used with this style of couplings are: SAE100R1SN, SAE100R2SN, SAE100R16S, SAE100R17, KURT TUFF Hose• Sizes: (-4) through (-10)
• Reduced size Bite-Wire shell for good compact hose fit
• Excellent performing coupling on new compact hoses
• Large selection of ends available
Technical Specifications
| Item#: | DY54261074 |
|---|---|
| Attachment Method | Crimp-on |
| Fitting Dimension A (Hose) | 1/4 (-4) " |
| Dash Size | -4 |
| Gender | Male |
| Fitting End Style | DIN 24 Degree Flare - Light Pattern |
| Fitting End Type | Rigid |
| Fitting Angle | Straight |
| Fitting Dimension B (Working End) | M16x1.5 |
| Fitting Series | K2 |
| O.D. Tube Size 1 | 10 mm |
| Size | (-4)XM16x1.5 |
| Hex Size | 11/16 " |
| Material | Carbon Steel |
| UNSPSC #: | 27121700 |
| TAA Compliant: | No |
| Weight: | 0.13 lb |
