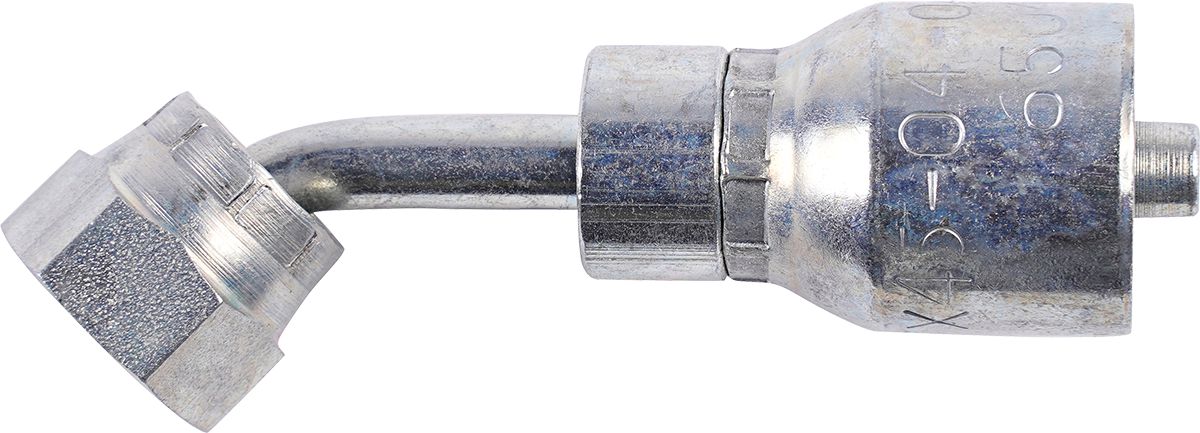

Crimp-On Coupling O-Ring Face, 45° Bend Swivel, 1/4"(-4) x 9/16-18(-4)
(Pack of
1.0)
• Recommended hose to be used with this style of couplings are: SAE100R1SN, SAE100R2SN, SAE100R16S, SAE100R17, KURT TUFF Hose
• Sizes: (-4) through (-10)
• Reduced size Bite-Wire shell for good compact hose fit
• Excellent performing coupling on new compact hoses
• Large selection of ends available
Frequently Bought Together
GlobalSpiral Coupler, JIC 37 Deg Flare
Item#: 1644495
Couldn't load pickup availability
Power Crimp Coupler, Ferrule
Item#: 1644596
Couldn't load pickup availability
MegaCrimp Coupler, JIC 37 Deg Flare
Item#: 1644366
Couldn't load pickup availability
BluShield Single-Wire Pressure Washer Hose 3/8" X 100'
Item#: 1690630
Couldn't load pickup availability
Avagard Rubber Water Hose Assembly 3/4" x 15'
Item#: 1690555
Couldn't load pickup availability
AG-Lite Rubber Water Hose Assembly 1" x 50'
Item#: 1690531
Couldn't load pickup availability
Rubber Air Hose Lead In 3/8" x 3'
Item#: 1690576
Couldn't load pickup availability
Rubber Air Hose Assembly 3/8" x 25'
Item#: 1690570
Couldn't load pickup availability
OilShield Rubber Air Hose Reel Heavy Duty Single Arm Assembly 3/8" x 50'
Item#: 1690617
Couldn't load pickup availability
Front Bumper Push-Type Retainer Nylon 20mm
Item#: P15599
Couldn't load pickup availability
Front/Rear Bumper Push-Type Retainer Nylon 20mm
Item#: KT13321
Couldn't load pickup availability
Metric Indented Hex Head Bolt with 17mm Washer
Item#: P59732
Couldn't load pickup availability
Product Description
• Recommended hose to be used with this style of couplings are: SAE100R1SN, SAE100R2SN, SAE100R16S, SAE100R17, KURT TUFF Hose• Sizes: (-4) through (-10)
• Reduced size Bite-Wire shell for good compact hose fit
• Excellent performing coupling on new compact hoses
• Large selection of ends available
Technical Specifications
| Item#: | DY54261546 |
|---|---|
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 1/4 (-4) " |
| Dash Size | -4 |
| Gender | Female |
| Fitting End Style | Flat Face O-Ring Face Seal |
| Fitting End Type | Swivel |
| Fitting Angle | 45 ° |
| Fitting Dimension B (Working End) | 9/16-18 (-4) |
| Fitting Series | K2 |
| Size | (-4)X(-4) |
| Hex Size | 11/16 " |
| Material | Carbon Steel |
| UNSPSC #: | 27121700 |
| TAA Compliant: | No |
| Weight: | 0.145 lb |
