Home Hydraulics Fittings Brass Dubl-Barb Elbow Brass 90° 1/4-18 x 3/8"
Brass

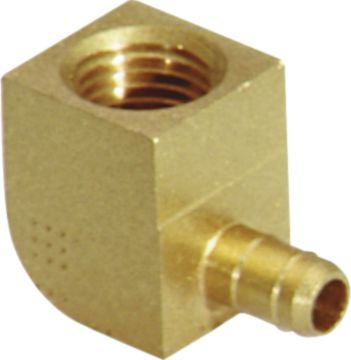

Dubl-Barb Elbow, Brass, 90°, 1/4-18 x 3/8", Female NPT x Tube, 150PSI
(Pack of 5)

Item#: 86712

Lawson

• Fittings grip as tubing is moved
• Pressure: Up to 150 PSI on 5/32" to 3/8" tubing; up to 100 PSI on 1/2" tubing
• Temperature ranges: –65°F to +90°F (–54°C to +32°C) for 5/32", 1/4" and 3/8" tubing; –65°F to +75°F (–54°C to +24°C) for 1/2" tubing
• Use with polyethylene tubing
• Can be used with environmental control systems

Read More
Check Availability

Frequently Bought Together


Hex Head Plug Brass 3/8-18 Male NPT

Item#: 5364

Pipe Street Elbow Brass 45° 1/4-18 x 1/4-18

Item#: 5313

Pipe Nipple Brass 1/4-18 x 1/4-18

Item#: 5302

Pipe Tee Brass 3/8-18 x 3/8-18 x 3/8-18

Item#: 5327

Hex Head Plug Brass 3/8-18 Male NPT

Item#: 5364

Pipe Street Elbow Brass 45° 1/4-18 x 1/4-18

Item#: 5313

FLEXAIR 3/8" I.D. x 50' air hose

Item#: 1585091

DOT Connector Male Brass 1/4 x 1/8-27

Item#: 57504

Hose Clamp 304 SS 9/16 to 1-1/16"

Item#: 86725

Shield Push-Type Retainer with Metal Insert

Item#: P85253

Rocker Panel Molding Clip Nylon White 12 x 20mm

Item#: P85316

Front/Rear Bumper Push-Type Retainer Nylon 20mm

Item#: KT13321

Product Description

• Fittings grip as tubing is moved
• Pressure: Up to 150 PSI on 5/32" to 3/8" tubing; up to 100 PSI on 1/2" tubing
• Temperature ranges: –65°F to +90°F (–54°C to +32°C) for 5/32", 1/4" and 3/8" tubing; –65°F to +75°F (–54°C to +24°C) for 1/2" tubing
• Use with polyethylene tubing
• Can be used with environmental control systems

Technical Specifications

Item#: 86712
Fitting Type Dubl-Barb
Angle 90 °
Configuration Elbow
Material Brass
Connection Type A x B Female NPT x Tube
Fitting Dimension A 1/4-18
Fitting Dimension B 3/8 "
Tube Inside Diameter B 1/4 "
Working Pressure 150 PSI
Temperature Range -65 to 90 F
Length 1-1/8 "
UNSPSC #: 40170000
TAA Compliant: Yes
Weight: 0.42 lb
