Home Hydraulics Fittings Brass Dubl-Barb Elbow Brass 90° 3/8-18 x 1/2"
Brass

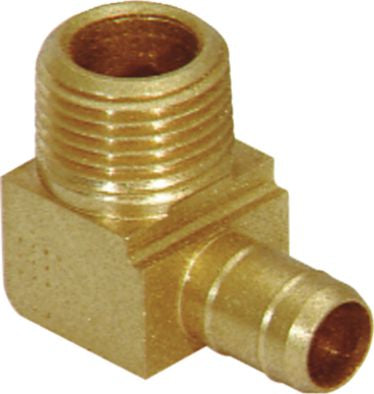

Dubl-Barb Elbow, Brass, 90°, 3/8-18 x 1/2", Male NPT x Tube, 100PSI
(Pack of 5)

Item#: 86710

Lawson

• Fittings grip as tubing is moved
• Pressure: Up to 150 PSI on 5/32" to 3/8" tubing; up to 100 PSI on 1/2" tubing
• Temperature ranges: –65°F to +90°F (–54°C to +32°C) for 5/32", 1/4" and 3/8" tubing; –65°F to +75°F (–54°C to +24°C) for 1/2" tubing
• Use with polyethylene tubing
• Can be used with environmental control systems

Read More
Check Availability

Frequently Bought Together


Compression Connector Brass 1/2-14 x 3/8"

Item#: 5073

Compression Nut Brass 1/4"

Item#: 5011

Compression Sleeve Brass 1/8" Tube

Item#: 5000

Pipe Street Tee Brass 1/4-18 x 1/4-18 x 1/4-18

Item#: 86665

Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 5/16 x 1/4"

Item#: 87622

Pipe Bushing Brass 3/4-14 x 1/2-14

Item#: 86662

DOT Swivel Elbow Male 360° Brass 1/4 x 1/4-18

Item#: 27202

Hose Clamp 304 SS 3/4 to 1-3/4"

Item#: 86728

Air Conditioning Slim Line Sealing Washer

Item#: KT14463

Fender Lining Screw Grommet Nylon #12

Item#: P18348

Wheel Opening Drive Rivet Aluminum 5/32"

Item#: P13787

Molding Clip with Sealer Nylon White 11.5 x 21

Item#: 1457520

Product Description

• Fittings grip as tubing is moved
• Pressure: Up to 150 PSI on 5/32" to 3/8" tubing; up to 100 PSI on 1/2" tubing
• Temperature ranges: –65°F to +90°F (–54°C to +32°C) for 5/32", 1/4" and 3/8" tubing; –65°F to +75°F (–54°C to +24°C) for 1/2" tubing
• Use with polyethylene tubing
• Can be used with environmental control systems

Technical Specifications

Item#: 86710
Fitting Type Dubl-Barb
Angle 90 °
Configuration Elbow
Material Brass
Connection Type A x B Male NPT x Tube
Fitting Dimension A 3/8-18
Fitting Dimension B 1/2 "
Tube Inside Diameter B 3/8 "
Working Pressure 100 PSI
Temperature Range -65 to 75 F
Length 15/16 "
UNSPSC #: 40170000
TAA Compliant: Yes
Weight: 0.48 lb
