Home Brass Dubl-Barb Run Tee Brass 1/8-27 x 1/4 x 1/4"
Brass

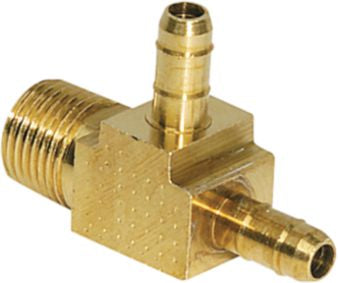

Dubl-Barb Run Tee, Brass, 1/8-27 x 1/4" x 1/4", Male NPT x Tube x Tube, 11/64" Tube ID, 150PSI
(Pack of 5)

Lawson

• Fittings grip as tubing is moved
• Pressure: Up to 150 PSI on 5/32" to 3/8" tubing; up to 100 PSI on 1/2" tubing• Temperature ranges: –65°F to +90°F (–54°C to +32°C) for 5/32", 1/4" and 3/8" tubing; –65°F to +75°F (–54°C to +24°C) for 1/2" tubing
• Use with polyethylene tubing• Can be used with environmental control systems

Read More
Check Availability

Frequently Bought Together


Pipe Hex Nipple Brass 3/8-18 x 3/8-18

Item#: 5294

Pipe Bushing Brass 1/2-14 x 3/8-18

Item#: 5287

Compression Self-Align Connector 1/4-18 x 1/2"

Item#: 54775

Pipe Bushing Brass 1/2-14 x 3/8-18

Item#: 5287

Push-to-Connect Y Connector Nylon 1/4 x 1/8 x 1/4"

Item#: 17663

Copper Extended Coupling, No Stop, 1/2" x 1/2"

Item#: 1693119

Slotted Hex Head Hose Clamp 1-9/16 to 2-1/2"

Item#: P28925M01

Quick Disconnect Plug Steel 1/4" x 1/4-18

Item#: KT11948

Hose Clamp 301 SS 9/16 to 1-1/16"

Item#: 86725

Bumper Fascia General Purpose Split Rivet 3/16"

Item#: KT13747

Fender Apron Drive Rivet 8mm Hole

Item#: 1365427

Front Fender Push-Type Retainer Nylon 20mm

Item#: KT11397

Product Description

• Fittings grip as tubing is moved
• Pressure: Up to 150 PSI on 5/32" to 3/8" tubing; up to 100 PSI on 1/2" tubing• Temperature ranges: –65°F to +90°F (–54°C to +32°C) for 5/32", 1/4" and 3/8" tubing; –65°F to +75°F (–54°C to +24°C) for 1/2" tubing
• Use with polyethylene tubing• Can be used with environmental control systems

Technical Specifications

Item#: 52407
Fitting Type Dubl-Barb
Configuration Run Tee
Material Brass
Connection Type A x B x C Male NPT x Tube x Tube
Fitting Dimension A 1/8-27
Fitting Dimension B 1/4 "
Fitting Dimension C 1/4 "
Tube Inside Diameter C 11/64 "
Tube Inside Diameter B 11/64 "
Working Pressure 150 PSI
Temperature Range -65 to 90 F
Length 1-9/32 "
UNSPSC #: 40170000
TAA Compliant: Yes
Weight: 0.22 lb
