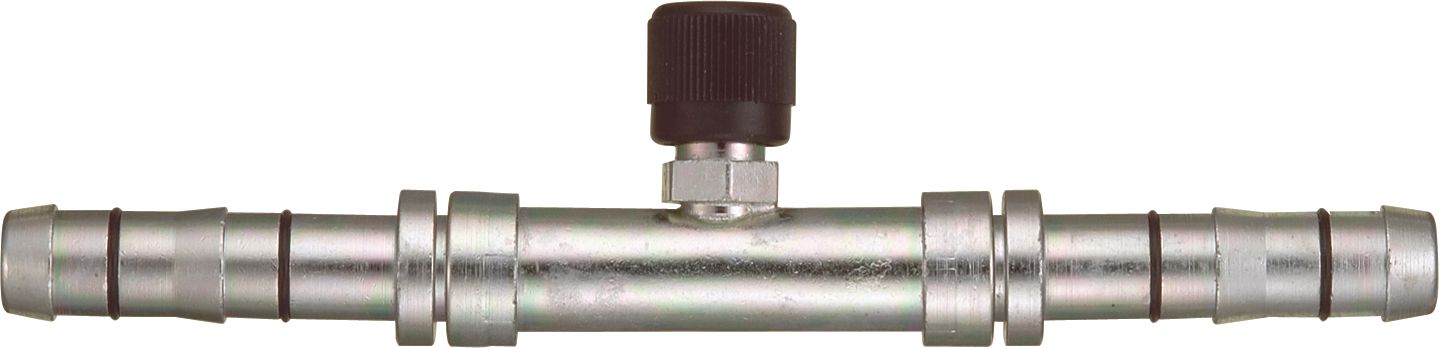

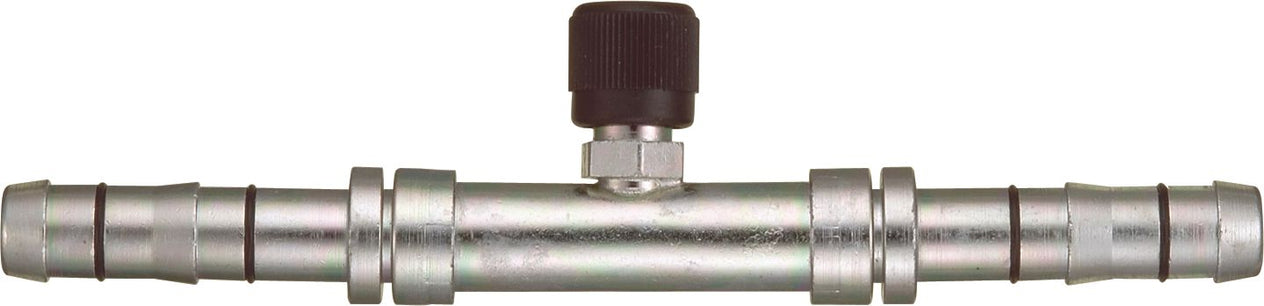

E-Z Clip Series Hydraulic Field Attachable Splicer, Straight, Carbon Steel, 13/32 (-8) x 13/32 (-8)
(Pack of
1)
SKU:17506 Item#: 17506
7/16–20 Thread
• Make your own hose assemblies in minutes• Reduce downtime and increase productivity• Does not require hose-crimping machinery• Typical applications include: Truck and bus fleets, construction equipment, military vehicles, agricultural equipment, refrigerated trucks (dairy and produce)
7/16–20 Thread
Use with GH001 Multi-Refrigerant Hose
Assembly InstructionsStep 1: Cut the hose. Be sure the cut is made square to the hose length.Step 2: Slip on two clips.Step 3: Oil the nipple. This MUST be done to lower the force of nipple insertion.Step 4: Insert the nipple into the hose. Be sure to wipe excess oil from the nipple and hose.Step 5: Snap the cage into the groove on the nipple.Step 6: Slide the clips over the cage arms and into the channels on each arm.Step 7: Close the clips.E-Z Clip® – Completed assembly.
NOTE: Pilot O-rings are not included and must be purchased separately.
CAUTION: Failure to follow these instructions and/or the use of Weatherhead® hose with fittings supplied by other manufacturers may result in unreliable and unsafe hose assemblies, which may result in sudden or unintended escape of refrigerant gases. Personal injury and/or violations of the EPA regulations may occur as a consequence.Eaton recommends adherence to all guidelines, including EPA guidelines, concerning the services of refrigerant systems.
Frequently Bought Together
PolarSeal AC Coupler, Flareless Tube 733201025
$0.00
Couldn't load pickup availability
PolarSeal AC Coupler, Flareless Tube 733200335
$0.00
Couldn't load pickup availability
KH Series Crimp-On Coupling 1/2" x 3/4-16
$0.00
Couldn't load pickup availability
SAE R16S Hydraulic Hose Rubber 0.67" x 400'
$0.00
Couldn't load pickup availability
10MFFOR-10MFFOR-10MFFOR Adapters
$0.00
Couldn't load pickup availability
GM005 PCTS Swager Pusher
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Plug Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Miniature Clamp SS 1/8 to 7/16"
$0.00
Couldn't load pickup availability
Rear Bumper Cover Retainer Plastic 18mm
$0.00
Couldn't load pickup availability
Bumper and Wheel Well Liner Push-Type Retainer
$0.00
Couldn't load pickup availability
Fender Apron Drive Rivet 8mm Hole
$0.00
Couldn't load pickup availability
Product Description
7/16–20 Thread• Make your own hose assemblies in minutes• Reduce downtime and increase productivity• Does not require hose-crimping machinery• Typical applications include: Truck and bus fleets, construction equipment, military vehicles, agricultural equipment, refrigerated trucks (dairy and produce)
7/16–20 Thread
Use with GH001 Multi-Refrigerant Hose
Assembly InstructionsStep 1: Cut the hose. Be sure the cut is made square to the hose length.Step 2: Slip on two clips.Step 3: Oil the nipple. This MUST be done to lower the force of nipple insertion.Step 4: Insert the nipple into the hose. Be sure to wipe excess oil from the nipple and hose.Step 5: Snap the cage into the groove on the nipple.Step 6: Slide the clips over the cage arms and into the channels on each arm.Step 7: Close the clips.E-Z Clip® – Completed assembly.
NOTE: Pilot O-rings are not included and must be purchased separately.
CAUTION: Failure to follow these instructions and/or the use of Weatherhead® hose with fittings supplied by other manufacturers may result in unreliable and unsafe hose assemblies, which may result in sudden or unintended escape of refrigerant gases. Personal injury and/or violations of the EPA regulations may occur as a consequence.Eaton recommends adherence to all guidelines, including EPA guidelines, concerning the services of refrigerant systems.
Technical Specifications
| Item#: | 17506 |
|---|---|
| Manufacturer Model #: | FJ3171-0808S |
| Manufacturer Series Number | E-Z Clip Series |
| Attachment Method | Field Attachable |
| Fitting Dimension A (Hose) | 13/32 (-8) " |
| Dash Size | -8 |
| Gender | Splicer |
| Fitting End Style | Splicer |
| Fitting Angle | Straight |
| Fitting Drop Length | with Switch Port (7/16-20 Thread) |
| Fitting Dimension B (Working End) | 13/32 (-8) |
| Weatherhead No. | FJ3171-0808S |
| Thread Size | 13/32 (-8) |
| Size | (-8)X(-8) |
| Material | Carbon Steel |
| UNSPSC #: | 27121700 |
| TAA Compliant: | Yes |
| Weight: | 0.16 lb |
