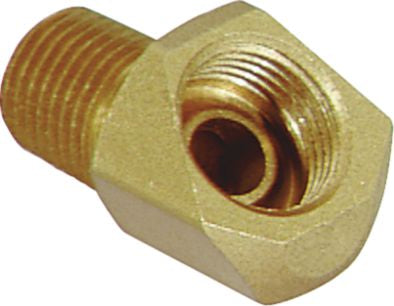

Elbow, Brass, Inverted Flare, 45°, 1/4-18 x 3/8", Male NPT x Tube, 500PSI
(Pack of
5)
• Meets SAE hydraulic tube fittings standards as well as ASA and ASME codes for pressure piping• Compatible tubing: Copper, brass, aluminum and welded steel tubing that can be flared• Pressure depends on tubing used. Will stand burst pressure of standard tube – up to 5,000 PSI with double-flared and 3,500 PSI with copper tube• Temperature range: –65°F to +250°F (–54°C to +121°C)
• Applications: Automotive brake, oil and fuel lines; LP and natural gas connections; hazardous liquids; air, water, fuel, oil or non-corrosive gaseous chemicals
Frequently Bought Together
Compression Self-Align Connector 1/4-18 x 1/2"
Couldn't load pickup availability
Pipe Branch Tee Brass 1/8-27 x 1/8-27 x 1/8-27
Couldn't load pickup availability
Air Line Connector Brass SAE 45° Flare 1/4 x 3/8"
Couldn't load pickup availability
Push-to-Connect Y Connector Nylon 1/4 x 1/8 x 1/4"
Couldn't load pickup availability
Copper Extended Coupling, No Stop, 1/2" x 1/2"
Couldn't load pickup availability
Copper Coupling, 1/2" x 1/2"
Couldn't load pickup availability
Hose Clamp 301 SS 9/16 to 1-1/16"
Couldn't load pickup availability
FLEXAIR 3/8" I.D. x 25' air hose
Couldn't load pickup availability
FLEXAIR 3/8" I.D. x 50' air hose assembly w/ Industrial safety coupler
Couldn't load pickup availability
Fender Apron Drive Rivet 8mm Hole
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Fender Bumper Shield Retainer 11/16"
Couldn't load pickup availability
Product Description
• Meets SAE hydraulic tube fittings standards as well as ASA and ASME codes for pressure piping• Compatible tubing: Copper, brass, aluminum and welded steel tubing that can be flared• Pressure depends on tubing used. Will stand burst pressure of standard tube – up to 5,000 PSI with double-flared and 3,500 PSI with copper tube• Temperature range: –65°F to +250°F (–54°C to +121°C)• Applications: Automotive brake, oil and fuel lines; LP and natural gas connections; hazardous liquids; air, water, fuel, oil or non-corrosive gaseous chemicals
Technical Specifications
| Item#: | 5270 |
|---|---|
| Fitting Type | Inverted Flare |
| Angle | 45 ° |
| Configuration | Elbow |
| Material | Brass |
| Connection Type A x B | Male NPT x Tube |
| Fitting Dimension A | 1/4-18 |
| Fitting Dimension B | 3/8 " |
| Working Pressure | 500 PSI |
| Temperature Range | -65 to 250 F |
| UNSPSC #: | 40170000 |
| TAA Compliant: | No |
| Weight: | 0.47 lb |
Product Restrictions
