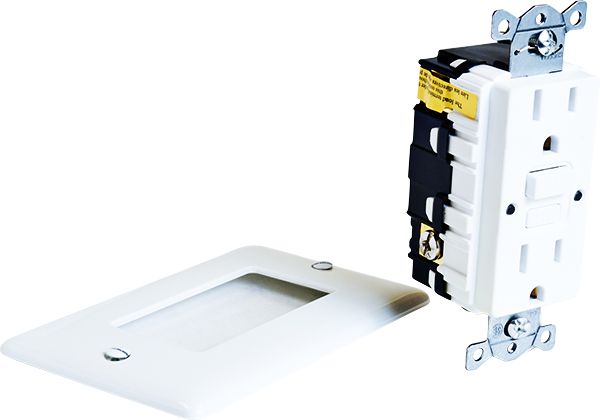

Commercial Grade Ground Fault Receptacle, 15 Amps, 125 Volts, White, NEMA 5-15R
(Pack of
1)
SKU:15508 Item#: 15508
• Built-in LED light test feature indicates if the ground fault circuit is functioning; LED light is normally off
• Designed with safety in mind; if the line and load wires are miswired, there is no power to the face of the outlet or downstream, and the unit will not be able to reset
• Meets the requirements of new UL 943 standard effective 7/28/06
• Superior surge protection: 50 joules/250V over voltage capability, and resistant to nuisance tripping
Test Procedure: With the receptacle properly wired, press the test button. If the GFCI circuit is functional, the LED light will be OFF and the reset button will pop out. Press the reset button to re-energize. If the GFCI circuit is NOT functional, the LED light flashes red and the reset button does not pop out, indicating the receptacle should be replaced.
Frequently Bought Together
H7 Halogen Miniature Bulb 55W 12V
$0.00
Couldn't load pickup availability
Ring Tongue Terminal 16 to 14 AWG Blue
$0.00
Couldn't load pickup availability
Butt Connector 12 to 10 AWG Yellow
$0.00
Couldn't load pickup availability
Industrial Duty Connector 20A 125V
$0.00
Couldn't load pickup availability
Hospital Grade Angle Plug 20A 125V
$0.00
Couldn't load pickup availability
Industrial Duty Plug 2 Pole 3 Wire 20A 125V
$0.00
Couldn't load pickup availability
Molding Clip with Sealer Nylon White 10 x 12mm
$0.00
Couldn't load pickup availability
Front Bumper Push-Type Retainer Nylon 10mm
$0.00
Couldn't load pickup availability
Nylon Cable Tie 15-1/4" Black
$0.00
Couldn't load pickup availability
Push Button Switch SPST 12VDC Momentary On
$0.00
Couldn't load pickup availability
Rocker Switch SPST 20A 12V On-Amber/Off-Clear
$0.00
Couldn't load pickup availability
Thermoplastic Plug 2 Pole 3 Wire 15A 125V
$0.00
Couldn't load pickup availability
Product Description
• Built-in LED light test feature indicates if the ground fault circuit is functioning; LED light is normally off• Designed with safety in mind; if the line and load wires are miswired, there is no power to the face of the outlet or downstream, and the unit will not be able to reset
• Meets the requirements of new UL 943 standard effective 7/28/06
• Superior surge protection: 50 joules/250V over voltage capability, and resistant to nuisance tripping
Test Procedure: With the receptacle properly wired, press the test button. If the GFCI circuit is functional, the LED light will be OFF and the reset button will pop out. Press the reset button to re-energize. If the GFCI circuit is NOT functional, the LED light flashes red and the reset button does not pop out, indicating the receptacle should be replaced.
Technical Specifications
| Item#: | 15508 |
|---|---|
| Style | LED Ground Fault Receptacle |
| Volts | 125 |
| NEMA Configuration | 5-15R |
| Color | White |
| Approvals | UL 943 Standard, CSA |
| Type | Plugs, Connectors and Receptacles |
| UNSPSC #: | 39121400 |
| TAA Compliant: | No |
| Weight: | 0.37 lb |
