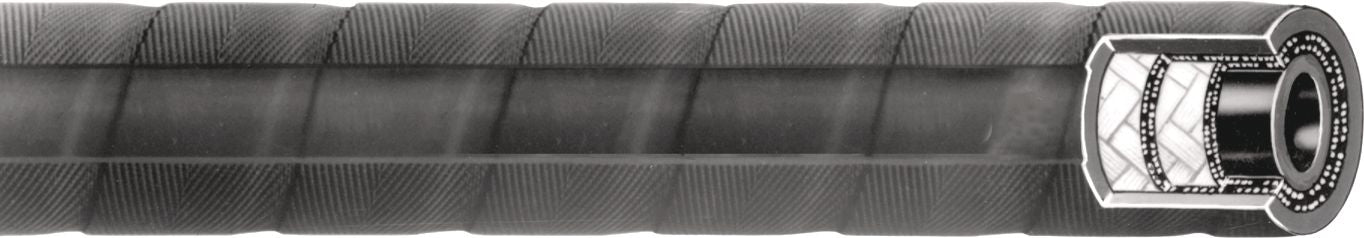

Weatherhead- H400- Rubber - Steel Braided- 2 Steel Braids- N/R- 4000 psi -1/2 (-8)
(Pack of
50)
SKU:20419 08 Item#: 20419 08
• Agency Ratings: Not rated• Fittings Certified: Z-Series • Agency Approvals: None• Construction:– Inner Tube: Nitrile– Reinforcement: Two steel braids – Cover: Neoprene• Temperature Range – Petroleum-based fluids: –40°F to +212°F (–40°C to +100°C)
• Application Notes:– Used for high pressure hydraulic lines on off-road equipment, farm equipment and other high pressure applications– Provides 4,000 PSI working pressure rating for all sizes
Frequently Bought Together
Front Bumper Trim Panel/Running Board Split Rivet
Item#: KT13527
$0.00
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
Item#: P24082
$0.00
Couldn't load pickup availability
Fender Bumper Shield Retainer 11/16"
Item#: P62445
$0.00
Couldn't load pickup availability
Product Description
• Agency Ratings: Not rated• Fittings Certified: Z-Series • Agency Approvals: None• Construction:– Inner Tube: Nitrile– Reinforcement: Two steel braids – Cover: Neoprene• Temperature Range – Petroleum-based fluids: –40°F to +212°F (–40°C to +100°C)• Application Notes:– Used for high pressure hydraulic lines on off-road equipment, farm equipment and other high pressure applications– Provides 4,000 PSI working pressure rating for all sizes
Technical Specifications
| Item#: | 20419 08 |
|---|---|
| Industrial / Hydraulic | Hydraulic |
| Type | Rubber - Steel Braided |
| Category / Performance | High Pressure |
| Industry Rating 1 | SAE 100R19 |
| Manufacturer Series Number | H400 |
| Manufacturer Series Name | Weatherhead |
| I.D. | 1/2 (-8) " |
| Hose O.D. | 0.89 " |
| Working Pressure | 4,000 PSI |
| Burst Pressure | 16,000 PSI |
| Fitting Series | Z Series |
| Bend Radius | 3-1/2 " |
| Inner Tube Material | Nitrile |
| Hose Reinforcement | 2 Steel Braids |
| Hose Cover Material | Neoprene |
| Temperature | Normal |
| Material | Hydraulic Oil |
| Applications | Hydraulic - Constant Flow |
| Temperature Range | -40F to +212F |
| UNSPSC #: | 40142020 |
| TAA Compliant: | No |
| Weight: | 23.0 lb |
