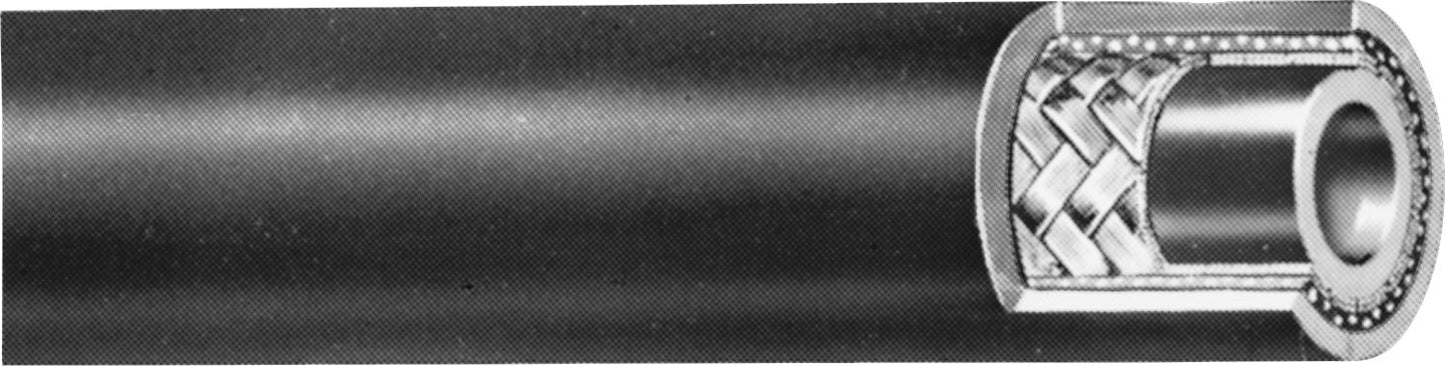

WeatherHd H757 Air Conditioning Hose, 1 Fiber Braid Reinforcement & Rbbr/Nyln/Rbbr Inner Tube, 350PSI, 1/2(-10)"(ID),3/4"(OD)
(Pack of
50)
SKU:56853 10 Item#: 56853 10
• Agency Ratings: SAE J2064 Type C, Class 1• Fittings Certified: 757 E-Series • Agency Approvals: None• Construction:– Inner Tube: Rubber/nylon/rubber– Reinforcement: One fiber braid– Cover: Butyl (perforated)• Temperature Range: –22°F to +248°F (–32°C to +120°C)
Use with 757 E-Series Air Conditioning/Refrigeration Fittings
• Application Notes:– Refrigerant hose for use with R134A and R12 applications– Ideal for heavy-duty truck use, as well as industrial and automotive applications
50' length consists of no more than 2 pieces with non shorter than 10'. Total length may vary (+/- 10%)
Frequently Bought Together
Bumper Cover Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Shield Push-Type Retainer with Metal Insert
$0.00
Couldn't load pickup availability
Rocker Panel Molding Clip Nylon White 12 x 20mm
$0.00
Couldn't load pickup availability
Product Description
• Agency Ratings: SAE J2064 Type C, Class 1• Fittings Certified: 757 E-Series • Agency Approvals: None• Construction:– Inner Tube: Rubber/nylon/rubber– Reinforcement: One fiber braid– Cover: Butyl (perforated)• Temperature Range: –22°F to +248°F (–32°C to +120°C)Use with 757 E-Series Air Conditioning/Refrigeration Fittings
• Application Notes:– Refrigerant hose for use with R134A and R12 applications– Ideal for heavy-duty truck use, as well as industrial and automotive applications
50' length consists of no more than 2 pieces with non shorter than 10'. Total length may vary (+/- 10%)
Technical Specifications
| Item#: | 56853 10 |
|---|---|
| Type | Refrigerant Hose |
| Category / Performance | Low Pressure |
| Industry Rating 2 | SAE J2064 Type C, Class 1 |
| Manufacturer Series Number | H757 |
| Manufacturer Series Name | Weatherhead |
| Hose I.D. | 1/2 (-10) " |
| Working Pressure | 350 PSI |
| Burst Pressure | 1,750 PSI |
| Bend Radius | 3 " |
| Inner Tube Material | Rubber/Nylon/Rubber |
| Hose Reinforcement | 1 Fiber Braid |
| Hose Cover Material | Perforated Butyl |
| Fitting Series | 757E Series |
| Temperature | -22F to +248F |
| UNSPSC #: | 40142020 |
| TAA Compliant: | Yes |
| Weight: | 1.0 lb |
