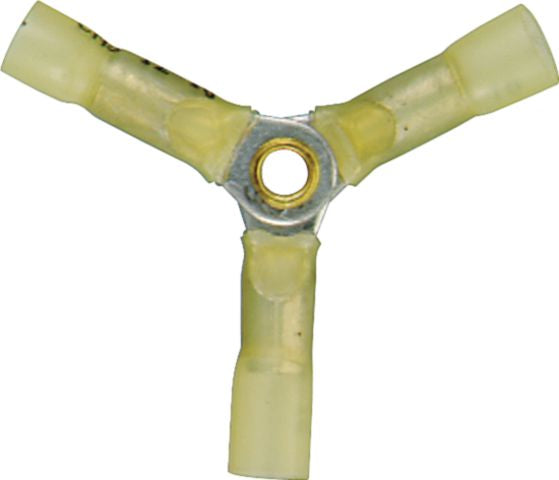

Heat Seal 3-Way Butt Connector, 12 to 10 AWG, #6 Stud Size
(Pack of
10)
SKU:53287 Item#: 53287
The dual protection of heat shrink tubing, pre-shrunk around a nylon-insulated terminal, is an excellent product for harsh, over-the-road and off-road heavy equipment applications.
• Dual wall self-seals if accidentally punctured prior to heating
• Clear tubing allows visual inspection and shrinks faster than standard tubing
• Inspection hole completely seals when heat is applied
• Provides positive strain relief at the flex point
• Vapor-proof bond protects connection from moisture, air, dirt, dust, oil and abrasion
• Tensile strength: 2,200 PSI• Elongation: 600%• Rated at 600V
Frequently Bought Together
Heat Seal 3-Way Butt Connector 22 to 18 AWG
$0.00
Couldn't load pickup availability
Miniature Incandescent Bulb 12V 12CP
$0.00
Couldn't load pickup availability
Miniature Incandescent Bulb 12V 2CP
$0.00
Couldn't load pickup availability
Miniature Incandescent Bulb 12V
$0.00
Couldn't load pickup availability
Fender Splash Shield Push Rivet Nylon 7mm Hole
$0.00
Couldn't load pickup availability
Specialty Rivet with Plastic Cap Aluminum 3.2mm
$0.00
Couldn't load pickup availability
Inner Fender Shield Attaching Clip Nylon Black
$0.00
Couldn't load pickup availability
Butt Connector 16 to 14 AWG
$0.00
Couldn't load pickup availability
Female Disconnect Terminal 16 to 14 AWG Blue
$0.00
Couldn't load pickup availability
Butt Connector 20 to 18 AWG Red
$0.00
Couldn't load pickup availability
Product Description
The dual protection of heat shrink tubing, pre-shrunk around a nylon-insulated terminal, is an excellent product for harsh, over-the-road and off-road heavy equipment applications.• Dual wall self-seals if accidentally punctured prior to heating
• Clear tubing allows visual inspection and shrinks faster than standard tubing
• Inspection hole completely seals when heat is applied
• Provides positive strain relief at the flex point
• Vapor-proof bond protects connection from moisture, air, dirt, dust, oil and abrasion
• Tensile strength: 2,200 PSI• Elongation: 600%• Rated at 600V
Technical Specifications
| Item#: | 53287 |
|---|---|
| Wire Gauge | 12-10 AWG |
| Stud Size | 6 |
| Color | Yellow |
| Description | Three-Way Connector - Stud Size: #6 |
| Style | 3-piece heat seal three way butt connectors |
| Type | Crimp and Heat Shrink |
| UNSPSC #: | 39121409 |
| TAA Compliant: | Yes |
| Weight: | 0.15 lb |
