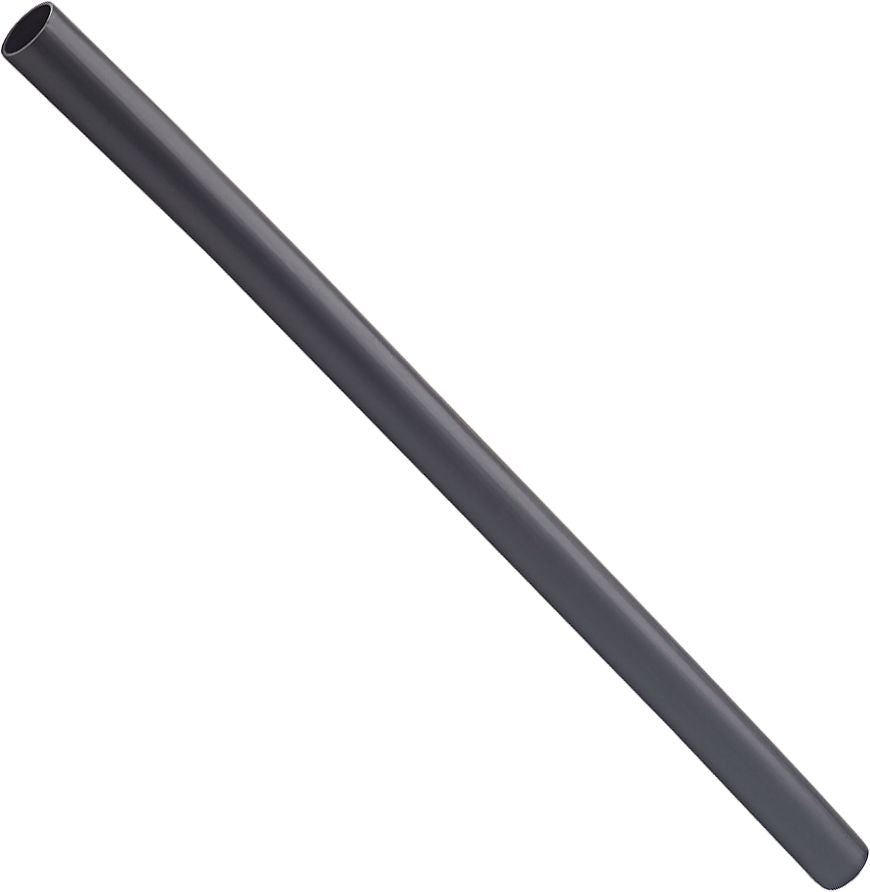

Heat Shrink Tubing, 18 to 12 AWG, Black, 6" Length, 0.25" ID Before and 0.08" ID After Shrinkage, 2.5:1 Shrink Ratio
(Pack of
10)
SKU:51880 Item#: 51880
• 2.5:1 shrink ratio
• Medium wall thickness fills the void between thin wall and heavy wall tubing
• Outer wall of tubing is high grade polyolefin with an inner wall of adhesive sealant
• Heat-activated sealant provides moisture-tight seal
• 6" lengths
• Meets MIL-1-23053/4 Specification
• Dielectric strength: 1,000V/mil
• Low-temperature flexibility: Four hours at –67°F (–55°C)
• Maximum continuous operating temperature: 230°F (110°C)
• Non-corrosive
• Non-nutrient – fungus resistant
• Excellent fluid resistance
• Rated at 600V
• Tensile strength: 2,600 PSI
• Elongation: 450%
• Volume resistivity: 106 Ohm/cm
• Heat shock: 168 hours at 482°F (250°C)
• Longitudinal change: Less than 10%
• Jacket is flame-retardant
• Secant modulus: 16,000 PSI
• Perfect for light-duty applications where heavy wall isn’t needed
Wire gauge coverage is approximate due to the wide variance of wire thicknesses.
Couldn't load pickup availability
Catalog page#: 2-8
Frequently Bought Together
Rechargeable Penlight Flashlight
Couldn't load pickup availability
Flashlight with Continuity Tester
Couldn't load pickup availability
Nylon Cable Tie 4" Black
Couldn't load pickup availability
Heat Shrink Tubing 16 to 14 AWG Clear
Couldn't load pickup availability
Heat Shrink Tubing 16 to 14 AWG Black
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 16 to 14 AWG Black
Couldn't load pickup availability
Hex Head Sheet Metal Screw with 16mm Washer Steel
Couldn't load pickup availability
Front Bumper Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Front Bumper Drive Rivet Plastic 10mm Hole
Couldn't load pickup availability
Super Bond™ Instant Adhesive Black 1oz
Couldn't load pickup availability
Marker Pen Red
Couldn't load pickup availability
Seam Sealing Tape 8mm x 26'
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 10 to 8 AWG Black
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 10 to 8 AWG Black
Couldn't load pickup availability
Posi-Seal Plus Patch Black 2-1/2 x 2-1/2" Pads
Couldn't load pickup availability
Product Description
• 2.5:1 shrink ratio• Medium wall thickness fills the void between thin wall and heavy wall tubing
• Outer wall of tubing is high grade polyolefin with an inner wall of adhesive sealant
• Heat-activated sealant provides moisture-tight seal
• 6" lengths
• Meets MIL-1-23053/4 Specification
• Dielectric strength: 1,000V/mil
• Low-temperature flexibility: Four hours at –67°F (–55°C)
• Maximum continuous operating temperature: 230°F (110°C)
• Non-corrosive
• Non-nutrient – fungus resistant
• Excellent fluid resistance
• Rated at 600V
• Tensile strength: 2,600 PSI
• Elongation: 450%
• Volume resistivity: 106 Ohm/cm
• Heat shock: 168 hours at 482°F (250°C)
• Longitudinal change: Less than 10%
• Jacket is flame-retardant
• Secant modulus: 16,000 PSI
• Perfect for light-duty applications where heavy wall isn’t needed
Wire gauge coverage is approximate due to the wide variance of wire thicknesses.
Technical Specifications
| Item#: | 51880 |
|---|---|
| Type | Pre-Cut |
| Style | Dual Wall |
| Wire Gauge Coverage | 18-12 AWG |
| Length | 6 " |
| Color | Black |
| I.D. Before Shrinkage | .250 " |
| I.D. After Shrinkage | .080 " |
| Shrink Ratio | 2.5 to 1 |
| Wall Thickness After Shrinkage | 0.047 " |
| Dielectric Strength | 1000 V/mm |
| Voltage Rating | 600 V |
| Elongation | 450 % |
| Tensile Strength | 2,600 PSI |
| Heat Shock | 168 hours at 482 degrees F |
| Secant Modulus | 16,000 PSI |
| Longitudinal Change | Less than 10% |
| Approvals | Meets MIL-1-23053/4 Specification |
| UNSPSC #: | 39121723 |
| TAA Compliant: | Yes |
| Weight: | 0.04 lb |
