Home Discontinued Hoist Ring, Heavy Duty®, 7,000 lb Load Limit
Discontinued

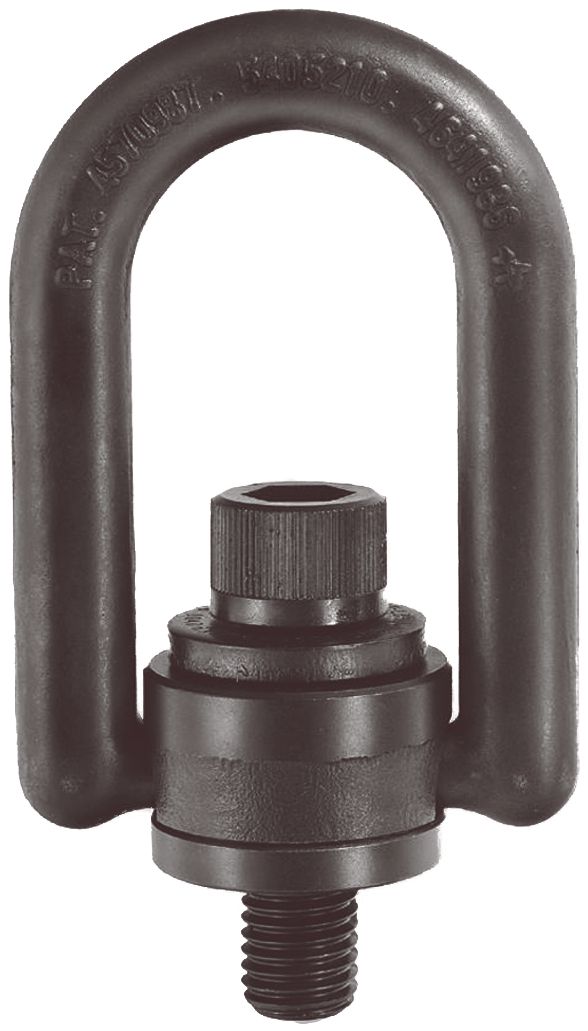

Hoist Ring, Heavy Duty®, 7,000 lb Load Limit, 3/4-10 Thread Size, .95" Thread Length
(Pack of 1)

Item#: 1423183

American Drill Bushing®

• Material: Forged high strength 4140 alloy steel
• Range of Movement: Swivel 360°, Pivot 180° under load
• Design Factor: Minimum of 5:1
• Meets manufacturing and design requirements of ASME-B30.26 and MIL-STD 209
• Magnetic particle inspected per ASTM 1444
• Black oxide coated
• Each individually serial numbered
• Use Hoist Rings for added lifting safety to avoid eye bolt twisting, bending and breaking when lifting heavy, angular, unbalanced loads
• Long bar model

Read More
Usually Ships: 2 to 4 Business Days

Frequently Bought Together


Bumper Cover Push-Type Retainer Nylon 18mm

Item#: 1579409

Shield Push-Type Retainer with Metal Insert

Item#: P85253

Rocker Panel Molding Clip Nylon White 12 x 20mm

Item#: P85316

Product Description

• Material: Forged high strength 4140 alloy steel
• Range of Movement: Swivel 360°, Pivot 180° under load
• Design Factor: Minimum of 5:1
• Meets manufacturing and design requirements of ASME-B30.26 and MIL-STD 209
• Magnetic particle inspected per ASTM 1444
• Black oxide coated
• Each individually serial numbered
• Use Hoist Rings for added lifting safety to avoid eye bolt twisting, bending and breaking when lifting heavy, angular, unbalanced loads
• Long bar model

Technical Specifications

Item#: 1423183
Manufacturer Model #: 33168
Type Heavy Duty
Thread Size 3/4-10
Thread Length 0.95 "
Material 4140 Alloy Steel
Finish Black Oxide
Working Load Limit 7,000 lb
Swivel 360 °
Pivot 180 °
Recommended Installation Torque 100 ft·lbf
Dimension A 1.40 "
Dimension B 5.10 "
Dimension C 2.05 "
Dimension D 1.00 "
Dimension E .95 "
Dimension F 9.00 "
Dimension G 3/4-10 "
Dimension K 2.81 "
Dimension L 0.18 "
Dimension M 5.20 "
UNSPSC #: 24101602
TAA Compliant: Yes
