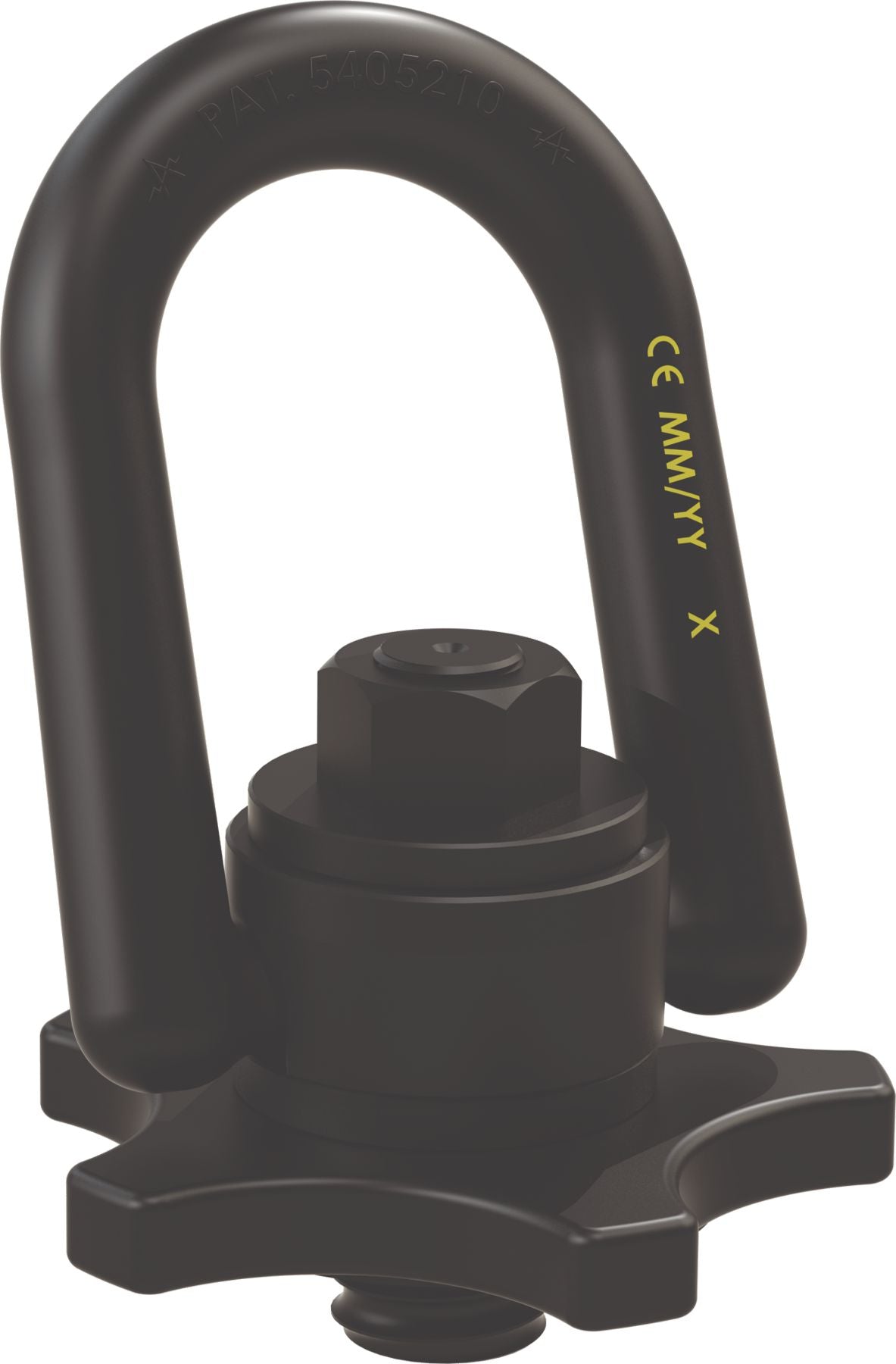

1-1/2" Hoist Ring, Spin-N-Lok™, 10,000 lb Load Limit, Coil Thread
(Pack of
1)
SKU:1423430 Item#: 1423430
• Pivots 180° and Swivels 360° Under Load
• Material: High Tensile Alloy Steel
• Finish: Black Oxide
• Design Factor: Minimum of 5:1
• Magnetic Particle Inspected Per ASTM 1444
Frequently Bought Together
Push-Type Retainer Nylon 16 x 19mm
Item#: 1468633
$0.00
Couldn't load pickup availability
Bumper Fascia General Purpose Split Rivet 3/16"
Item#: KT13747
$0.00
Couldn't load pickup availability
Fender Splash Shield Push Rivet Nylon 7mm Hole
Item#: KT14296
$0.00
Couldn't load pickup availability
Product Description
• Pivots 180° and Swivels 360° Under Load• Material: High Tensile Alloy Steel
• Finish: Black Oxide
• Design Factor: Minimum of 5:1
• Magnetic Particle Inspected Per ASTM 1444
Technical Specifications
| Item#: | 1423430 |
|---|---|
| Manufacturer Model #: | 36965 |
| Type | Spin-N-Lok™ |
| Thread Size | 1-1/2 (Coil) |
| Material | Alloy Steel |
| Finish | Black Oxide |
| Working Load Limit | 10,000 lb |
| Swivel | 360 ° |
| Pivot | 180 ° |
| Dimension A | 1.4 " |
| Dimension B | 5.1 " |
| Dimension C | 2.8 " |
| Dimension D | 1 " |
| Dimension E | 1 " |
| Dimension F | 8-1/8 " |
| Dimension G | 1-1/2 (Coil) " |
| Dimension H | 6 " |
| Dimension M | 2.95 " |
| UNSPSC #: | 24101602 |
| TAA Compliant: | Yes |
