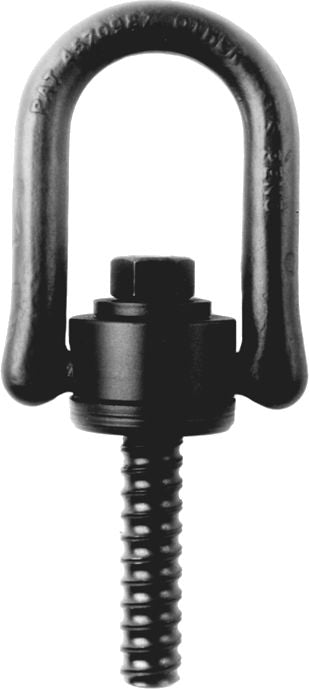

Hoist Ring, Super-Coil®, 10,000 lb Load Limit, 1" Coil Thread, 5.00" Thread Length
(Pack of
1)
SKU:1423441 Item#: 1423441
• Alloy Steel, Black Oxide Finish
• Excellent for temporary attachment to steel & construction material
• Range of movement: pivot 180° & swivel 360° to compensate for pitch, pull and sway when lifting unbalanced loads. Load ratings are for lifts in any direction.
• Minimum Design Factor: 5.1
• Magnetic Particle Inspected Per ASTM 1444
• Destructive testing by outside independent laboratories
• ADB® Coil Bolts are included to ensure the integrity of the product
Frequently Bought Together
Fender Apron Drive Rivet 8mm Hole
Item#: 1365427
$0.00
Couldn't load pickup availability
Engine Under Cover Drive Rivet Plastic 7mm Hole
Item#: KT13998
$0.00
Couldn't load pickup availability
Cowl Bumper Fender Liner/Engine Under Cover Rivet
Item#: P86111
$0.00
Couldn't load pickup availability
Product Description
• Alloy Steel, Black Oxide Finish• Excellent for temporary attachment to steel & construction material
• Range of movement: pivot 180° & swivel 360° to compensate for pitch, pull and sway when lifting unbalanced loads. Load ratings are for lifts in any direction.
• Minimum Design Factor: 5.1
• Magnetic Particle Inspected Per ASTM 1444
• Destructive testing by outside independent laboratories
• ADB® Coil Bolts are included to ensure the integrity of the product
Technical Specifications
| Item#: | 1423441 |
|---|---|
| Manufacturer Model #: | 33107CT |
| Type | Super-Coil® |
| Thread Size | 1 |
| Material | Alloy Steel |
| Finish | Black Oxide |
| Working Load Limit | 10,000 lb |
| Swivel | 360 ° |
| Pivot | 180 ° |
| Recommended Installation Torque | 230 ft·lbf |
| Dimension A | 1.40 " |
| Dimension B | 5.10 " |
| Dimension C | 2.05 " |
| Dimension D | 1.00 " |
| Dimension E | 5.00 " |
| Dimension F | 7.00 " |
| Dimension G | 1 " |
| Dimension K | 2.81 " |
| Dimension L | .18 " |
| Dimension M | 2.95 " |
| Dimension N | 1-1/2 " |
| UNSPSC #: | 24101602 |
| TAA Compliant: | Yes |
