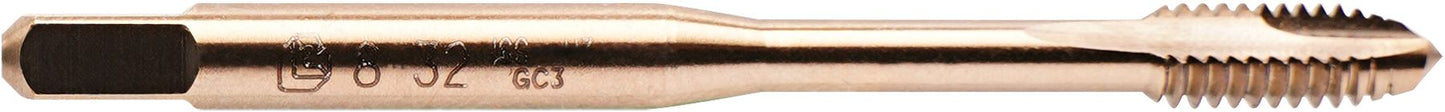

Spiral Point Hand Tap, High Speed Steel, 2 Flute, 8-32, 3/8" Thread Length
(Pack of
1)
• Spiral point design has a left hand flute at the point to provide a positive rake and drive the chip ahead of the tap
• Shorter overall thread length minimizes drag after the first full thread
• Reduced neck provides clearance to prevent breakage and allows room for lubrication to reach cutting edge
• Precision-ground thread design performs better in controlled machine set-ups and tougher off-hand maintenance applications
• Three flutes stabilize starting direction to facilitate tapping straight holes
• Manufactured from high-speed steel
• Recommended for through holes in most materials
• Designed for tapping on machining centers
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Frequently Bought Together
Stemmed Knot-Type Wire Wheel 3"
Couldn't load pickup availability
Sheet Metal Drill Bit Alloy Steel 5/32"
Couldn't load pickup availability
Spot Weld Remover Drill Bit 5/16" (M8)
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Shield Push-Type Retainer with Metal Insert
Couldn't load pickup availability
Metric Indented Hex Head Bolt with 17mm Washer
Couldn't load pickup availability
HSS Spiral Point Hand Tap 5-40
Couldn't load pickup availability
Pilotdrive Cryotap M18 x 1.5 Starter Hand Tap
Couldn't load pickup availability
Pilotdrive Cryotap M16 x 1.5 Starter Hand Tap
Couldn't load pickup availability
4-Flute HSS Bottoming Hand Tap M16 x 2
Couldn't load pickup availability
Carbon Steel Replacement Hand Tap M5 x 0.8
Couldn't load pickup availability
Cryo-Drap #12-24 Drill & Tap Combo, 135o Split Point, W/Flats
Couldn't load pickup availability
8Pc Metric Flare Nut Wrench Set
Couldn't load pickup availability
Spot Weld Remover Drill Bit Cobalt 5/16" (M8)
Couldn't load pickup availability
9" Hi-Level Heavy-Duty Power Jaw Plier-Cutter
Couldn't load pickup availability
Product Description
• Spiral point design has a left hand flute at the point to provide a positive rake and drive the chip ahead of the tap• Shorter overall thread length minimizes drag after the first full thread
• Reduced neck provides clearance to prevent breakage and allows room for lubrication to reach cutting edge
• Precision-ground thread design performs better in controlled machine set-ups and tougher off-hand maintenance applications
• Three flutes stabilize starting direction to facilitate tapping straight holes
• Manufactured from high-speed steel
• Recommended for through holes in most materials
• Designed for tapping on machining centers
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Technical Specifications
| Item#: | 61114 |
|---|---|
| Type | Machine Screw |
| Diameter | #8 |
| Pitch | 32 |
| Flutes | 2 |
| Thread Length | 3/8 " |
| H Limits | GH3 |
| Material | HSS |
| Recommended Drill Size | No. 29 |
| UNSPSC #: | 23241615 |
| TAA Compliant: | Yes |
| Weight: | 0.015 lb |
Product Restrictions
