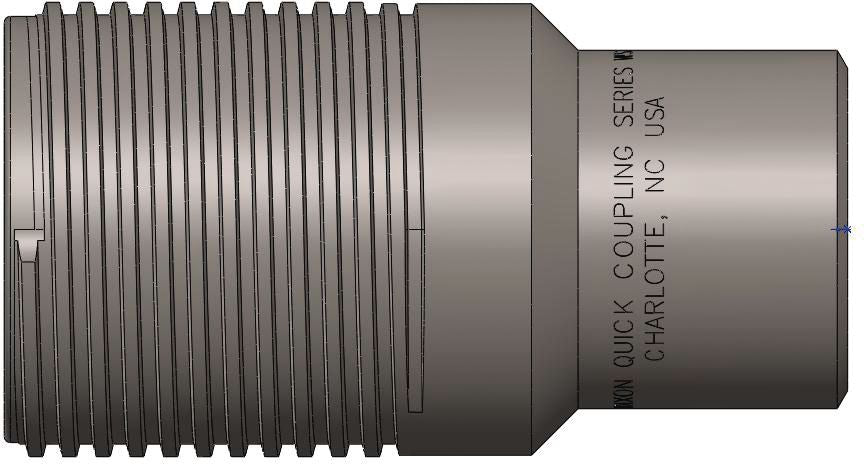

Hydraulic Quick Connect Nipple, Steel, Wing Style, 1-1/4" x 1-1/4-11-1/2, Female NPTF, 5.38" Length, 5000PSI
(Pack of
1)
SKU:20991 Item#: 20991
• Provides no-spill connections for oil rigs and pile drivers
• Unique casting process provides greater durability than competitive couplers
• Heavy-duty hammer lugs provide optimum durability
• Seals are easily field replaceable. The valve seal can be replaced without having to replace the entire valve
• Comply with Det Norske Veritas North Sea standards
• Unique “initial-thread” profile ensures nipple longevity in tough environments
Dixon: WS Series
Snap-tite: 75 Series
Frequently Bought Together
Spacer Ring Green
$0.00
Couldn't load pickup availability
KH Series Crimp-On Coupling 1/2" x 3/4-16
$0.00
Couldn't load pickup availability
RYCO RY16 Mini Crimper Crimp Die Set, Crimp Range 0.551-0.630 Inch
$0.00
Couldn't load pickup availability
Standard Industrial Safety Push-Button Safety Coupler 1/4" Body x 1/4" FNPT
$0.00
Couldn't load pickup availability
All-Plastic Ergonomic Venturi Blow Gun
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Hydraulic Quick Connect Coupler 3/4" x 3/4-14
$0.00
Couldn't load pickup availability
6HDP-H6DC
$0.00
Couldn't load pickup availability
Hydraulic Dust Cap for Coupler PVC/Rubber 1/2"
$0.00
Couldn't load pickup availability
Phillips Truss Head Sheet Metal Screw Steel 15mm
$0.00
Couldn't load pickup availability
Front Rear Bumper Specialty Rivet 3.2mm
$0.00
Couldn't load pickup availability
Molding Clip with Sealer Nylon White 11.5 x 21
$0.00
Couldn't load pickup availability
Product Description
• Provides no-spill connections for oil rigs and pile drivers• Unique casting process provides greater durability than competitive couplers
• Heavy-duty hammer lugs provide optimum durability
• Seals are easily field replaceable. The valve seal can be replaced without having to replace the entire valve
• Comply with Det Norske Veritas North Sea standards
• Unique “initial-thread” profile ensures nipple longevity in tough environments
Dixon: WS Series
Snap-tite: 75 Series
Technical Specifications
| Item#: | 20991 |
|---|---|
| Hydraulic / Pneumatic | Hydraulic |
| Description | Quick Coupling |
| Type | Nipple |
| Style | Wing Style |
| Body Size | 1-1/4 " |
| Thread Size | 1-1/4-11-1/2 |
| Thread Style | Female NPTF |
| Burst Pressure | 15,000 PSI |
| Seal Material | Nitrile (Buna-N) |
| Material | Steel |
| Locking Mechanism | Threaded |
| Flow | 105 gal/min |
| Length | 5.38 " |
| Temperature Range | -40 to 250 F |
| Working Pressure | 5,000 PSI |
| Hex Size | - " |
| Maximum Diameter | 2.63 " |
| UNSPSC #: | 27121701 |
| TAA Compliant: | Yes |
| Weight: | 4.3 lb |
Product Restrictions
