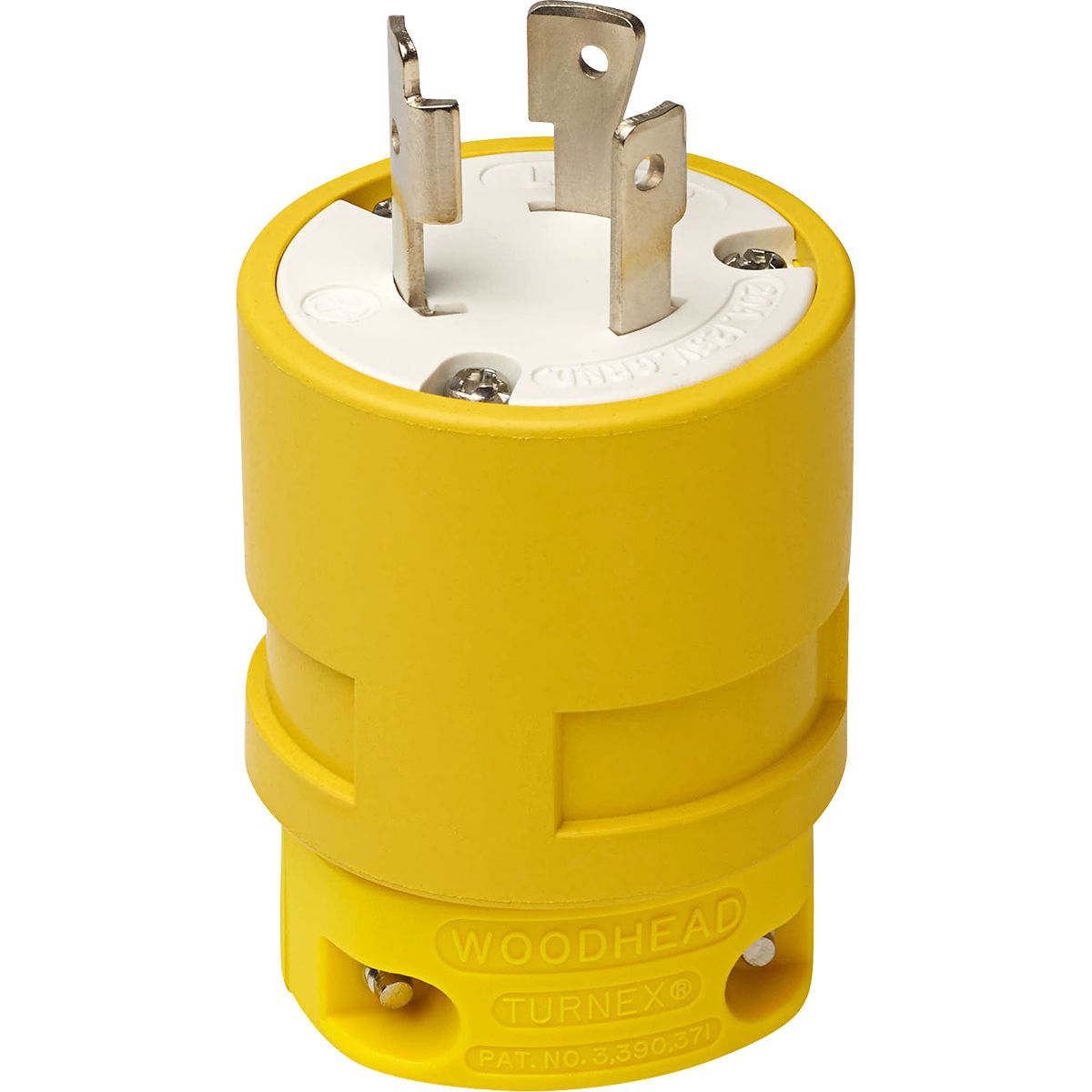

Industrial Duty Plug, 20 Amps, 125 Volts, 0.405 to 0.815" Cord Diameter, LNEMA 5-20P
(Pack of
1)
SKU:87225 Item#: 87225
• Insulated Neotex® rubber cover resists heat, oils, water and chemicals, providing an extended service life.
• Designed to last longer in harsh industrial environments
• Transparent, tough polycarbonate back to allow visual inspection
• Connector line and ground contacts are formed from a single piece of phosphor bronze for maximum conductivity
• Captive assembly screws
• Floating blades self-align to differing receptacles to assure a good contact
• Extra-wide, neutral blade offers redundant protection against reverse polarity
• No. 10 ground screws
• Dust fin guards cord opening from dust entry
• Self-centering clamps eliminate stress on wiring terminals and accept cords from 18/3 SJO to 12/3 SO
• Impact-resistant nylon cord grip
Frequently Bought Together
Master Series Penlight Flashlight
$0.00
Couldn't load pickup availability
Vision Pro Super
$0.00
Couldn't load pickup availability
Halogen Miniature Bulb 55W 12V
$0.00
Couldn't load pickup availability
Industrial Duty Watertight Plug 15A 125V
$0.00
Couldn't load pickup availability
Industrial Duty Duplex Receptacle 20A 125V Ivory
$0.00
Couldn't load pickup availability
Industrial Duty Locking Connector 15A 125V
$0.00
Couldn't load pickup availability
Metric Indented Hex Head Bolt with 17mm Washer
$0.00
Couldn't load pickup availability
Front Bumper and Radiator Support Drive Rivet
$0.00
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Industrial Duty SAF-T Connect Connector 15A 125V
$0.00
Couldn't load pickup availability
Push-Pull Switch SPST 20A 12V Off-On
$0.00
Couldn't load pickup availability
Hex Locknut for Toggle Switch
$0.00
Couldn't load pickup availability
Product Description
• Insulated Neotex® rubber cover resists heat, oils, water and chemicals, providing an extended service life.• Designed to last longer in harsh industrial environments
• Transparent, tough polycarbonate back to allow visual inspection
• Connector line and ground contacts are formed from a single piece of phosphor bronze for maximum conductivity
• Captive assembly screws
• Floating blades self-align to differing receptacles to assure a good contact
• Extra-wide, neutral blade offers redundant protection against reverse polarity
• No. 10 ground screws
• Dust fin guards cord opening from dust entry
• Self-centering clamps eliminate stress on wiring terminals and accept cords from 18/3 SJO to 12/3 SO
• Impact-resistant nylon cord grip
Technical Specifications
| Item#: | 87225 |
|---|---|
| Style | Industrial-Duty Plugs and Connectors |
| Volts | 125 |
| Description | Plug |
| NEMA Configuration | L5-20P |
| Cord Diameter | 0.405 - 0.815 " |
| Type | Plugs, Connectors and Receptacles |
| UNSPSC #: | 39121400 |
| TAA Compliant: | Yes |
| Weight: | 0.31 lb |
