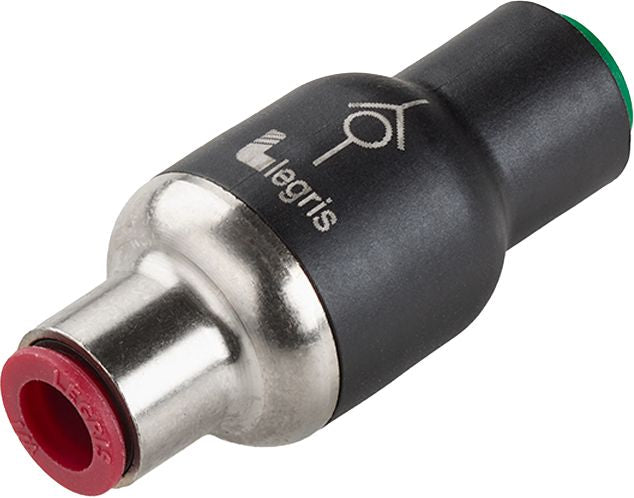

Inline Check Valve, Nylon Body, Nickel Plated Brass Base, 1/4", Tube, 145PSI
(Pack of 10)

SKU:1198473 Item#: 1198473

Legris

The Legris in-line check valve allows air to pass in one direction while blocking flow in the other direction. Their extreme compactness and lightweight design makes them suitable as a safety item in compressed air circuits. The body of the fitting contains an arrow to indicate the direction of flow. A pressure of more than 7 psi will overcome the spring pressure, which is keeping the valve closed, thus allowing the passage of air. If the pressure differential is lower than 3.6 psi the passage is blocked.
• Working temperature: 32°F to +158°F • Working pressure: 15 to 145 PSI • Sutable fluids: compressed air • Construction: – Body: glass reinforced nylon 6.6 or brass– Gripping Ring: stainless steel– Base: nickel-plated brass with thread sealant on tapered components
Inlet has green button, outlet has red button

Quantity

Frequently Bought Together

Pipe Street Elbow Brass 90° 1/8-27 x 1/8-27

Pipe Street Elbow Brass 90° 1/2-14 x 1/2-14

Pipe Coupling Brass 1/4-18 x 1/4-18

Slotted Hex Head Hose Clamp 1-5/16 to 2-1/4"

Item#: P64107M01

Push-Button Air Coupler Steel 1/4" x 1/4-18

Push-Button Air Coupler Plug Steel 1/4" x 1/4-18

Push-to-Connect Extension Elbow Nylon 5/32" (4 mm) x M5x0.8

Push-to-Connect Extension Elbow Nylon 3/8 x 3/8"

Push-to-Connect Y Connector Nylon 1/4 x 1/4 x 1/4"

Cowl Bumper Fender Liner/Engine Under Cover Rivet

Front Fender Push-Type Retainer Nylon 20mm

Drive Rivet Nylon M8

Product Description

The Legris in-line check valve allows air to pass in one direction while blocking flow in the other direction. Their extreme compactness and lightweight design makes them suitable as a safety item in compressed air circuits. The body of the fitting contains an arrow to indicate the direction of flow. A pressure of more than 7 psi will overcome the spring pressure, which is keeping the valve closed, thus allowing the passage of air. If the pressure differential is lower than 3.6 psi the passage is blocked.
• Working temperature: 32°F to +158°F • Working pressure: 15 to 145 PSI • Sutable fluids: compressed air • Construction: – Body: glass reinforced nylon 6.6 or brass– Gripping Ring: stainless steel– Base: nickel-plated brass with thread sealant on tapered components
Inlet has green button, outlet has red button

Technical Specifications

Item#:	1198473
Manufacturer Model #:	7996 56 00
Style	Check Valve
Configuration	In-Line
Tube Size	1/4 "
Material	Nylon/Nickel-Plaed Brass
Working Pressure	145 PSI
Temperature Range	32 to 158 °F
UNSPSC #:	40183100
TAA Compliant:	No
