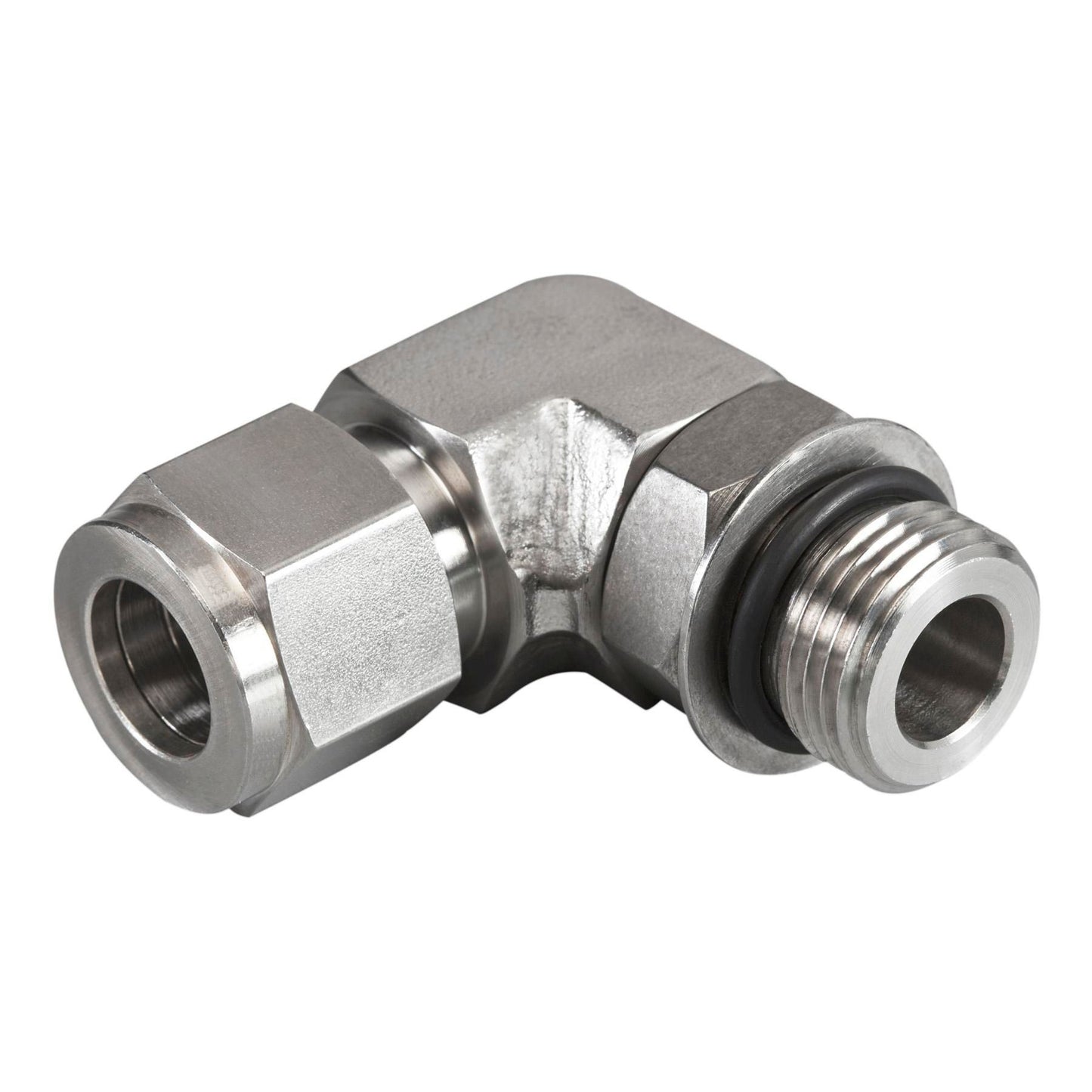

Instrumentation Elbow, 90°, Stainless Steel, 3/8" x 9/16-18, Tube x Male ORB
(Pack of 1)

Item#: 1343594

Kent Automotive

• Precision tube fittings for the most demanding process control and instrumentation applications• Positive leak-free seal after repeated assembly • Heat code traceability on 316 Stainless Steel • Fully interchangeable with Swagelok® • Double ferrule design
• Manufactured to ANSI B31.1 and B31.3 Standards
O-Rings are black Viton

Read More

Frequently Bought Together


Water Line Coupling Brass 3/4"

Item#: 98954

Quick Disconnect Coupler Brass 1/4" x 1/4-18

Item#: KT15119

Hose Barb Hose Mender Brass 5/16 x 5/16"

Item#: 96864

FLEXAIR 3/8" I.D. x 35' air hose

Item#: 1585090

Quick Disconnect Plug Steel 1/4" x 1/4-18

Item#: KT15116

Standard Industrial Safety Push-Button Safety Coupler 1/4" Body x 1/4" FNPT

Item#: 1489993

Instrumentation Tube Nut 1/2"

Item#: 59883

Instrumentation Fitting 316 Stainless Steel

Item#: 1592986
No product placeholder

Instrumentation Ferrule Union Elbow 90° 1/4 x 1/4"

Item#: 1430843

High Flow Safety Push-Button Safety Coupler 3/8" Body x 1/4" FNPT

Item#: 1637126

Garden Hose End Brass 5/8" x 3/4-11-1/2

Item#: 88884

Universal Air Coupler 1/4" x 1/4-18

Item#: 97322

Push-Type Retainer Nylon 20mm

Item#: P23453

Radiator Grille Nut M4.2-1.41

Item#: 1513544

Fender Splash Shield Retainer Nylon 20mm

Item#: P53958

Product Description

• Precision tube fittings for the most demanding process control and instrumentation applications• Positive leak-free seal after repeated assembly • Heat code traceability on 316 Stainless Steel • Fully interchangeable with Swagelok® • Double ferrule design
• Manufactured to ANSI B31.1 and B31.3 Standards
O-Rings are black Viton

Technical Specifications

Item#: 1343594
Tube Size 3/8 "
Configuration 90˚ Positionable Male Elbow
Connection Type A x B Tube x Male ORB
Fitting Dimension A 3/8 "
Fitting Dimension B 9/16-18
Material Stainless Steel
Thread Style Male ORB
Thread Size 9/16-18
UNSPSC #: 27131600
TAA Compliant: No
