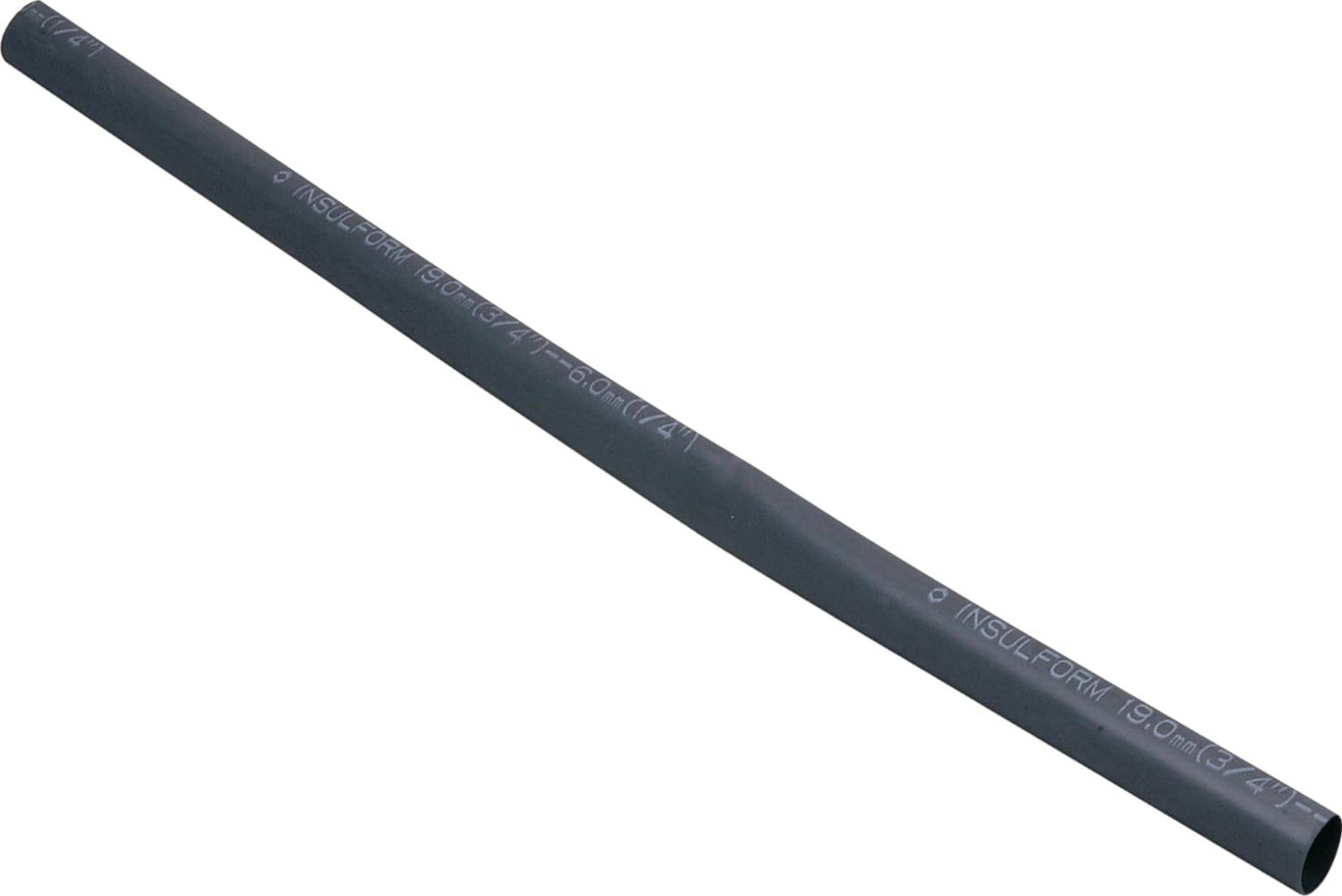

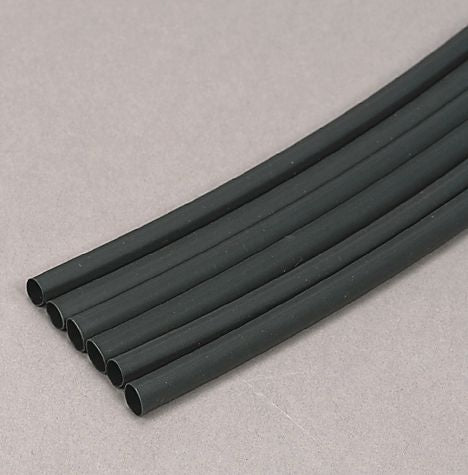

Insulform Heat Shrink Tubing, 16 to 14 AWG, Black, 1/4" Diameter, 2' Length, 1/4" ID Before and 3/32" ID After Shrinkage
(Pack of
5)
SKU:P68795 Item#: P68795
• 3:1 shrink ratio
• Seals and helps protect electrical connections against failure due to water, moisture, corrosion, vibration, strain and abrasion
• The inner wall melts and adheres to the wire or cable insulation, encapsulating the connection; the outer wall shrinks, providing strength with flexibility and abrasion resistance
• Unaffected by most oils, fuels, solvents, chemicals and road salts
• High dielectric strength: 5,100 – 21,300V/mil minimum, depending on tubing diameter and amount of shrinkage
• Flame-resistant – meets CSA (OFT) and UL flammability ratings
• Easy to apply, low shrink temperature: 230°F (110°C)
• High tensile strength: 1,500 PSI minimum
• Wide continuous temperature range: –67°F to +230°F (–55°C to +110°C)
• Rated at 600V, 125°C• Meets MIL Specification 123053/4, Class 3
Applications
• Communications wire/antenna cable
• Instrumentation/electronics
• Vehicular electrical splices
• Biomedical instruments
• Solder and crimp joints
• Wire/cable strain relief
• Power cable splices
• Harness jackets
• Insulate splices
• Insulate tools
• Buss bars
• Burial capable
Wire gauge coverage is approximate due to the wide variance of wire thicknesses.
Couldn't load pickup availability
Catalog page#: 2-7
Frequently Bought Together
Miniature Incandescent Bulb 12V 2CP
Couldn't load pickup availability
Nylon Cable Tie 11-3/4" Black
Couldn't load pickup availability
Nylon Cable Tie 7-1/2" Black
Couldn't load pickup availability
Heat Shrink Tubing 30 to 18 AWG Black
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 20 to 18 AWG Black
Couldn't load pickup availability
Insulform Heat Shrink Tubing 22 to 18 AWG Black
Couldn't load pickup availability
Bumper and Wheel Well Liner Push-Type Retainer
Couldn't load pickup availability
Fender Apron Drive Rivet 8mm Hole
Couldn't load pickup availability
Engine Under Cover Drive Rivet Plastic 7mm Hole
Couldn't load pickup availability
Super 33+ Series Vinyl Electrical Tape Black 3/4"
Couldn't load pickup availability
Heat Shrink Tubing 30 to 18 AWG Black
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 20 to 18 AWG Black
Couldn't load pickup availability
Product Description
• 3:1 shrink ratio• Seals and helps protect electrical connections against failure due to water, moisture, corrosion, vibration, strain and abrasion
• The inner wall melts and adheres to the wire or cable insulation, encapsulating the connection; the outer wall shrinks, providing strength with flexibility and abrasion resistance
• Unaffected by most oils, fuels, solvents, chemicals and road salts
• High dielectric strength: 5,100 – 21,300V/mil minimum, depending on tubing diameter and amount of shrinkage
• Flame-resistant – meets CSA (OFT) and UL flammability ratings
• Easy to apply, low shrink temperature: 230°F (110°C)
• High tensile strength: 1,500 PSI minimum
• Wide continuous temperature range: –67°F to +230°F (–55°C to +110°C)
• Rated at 600V, 125°C• Meets MIL Specification 123053/4, Class 3
Applications
• Communications wire/antenna cable
• Instrumentation/electronics
• Vehicular electrical splices
• Biomedical instruments
• Solder and crimp joints
• Wire/cable strain relief
• Power cable splices
• Harness jackets
• Insulate splices
• Insulate tools
• Buss bars
• Burial capable
Wire gauge coverage is approximate due to the wide variance of wire thicknesses.
Technical Specifications
| Item#: | P68795 |
|---|---|
| Type | Pre-Cut |
| Style | Dual Wall |
| Wire Gauge Coverage | 16-14 AWG |
| Diameter | 1/4 " |
| Length | 2 ft |
| Color | Black |
| I.D. Before Shrinkage | 1/4 " |
| I.D. After Shrinkage | 3/32 " |
| Dielectric Strength | 5,100 - 21,300 min V/mm |
| Voltage Rating | 600 V |
| Temperature Rating | -67°F to 230°F/ -55°C to 110°C |
| Shrink Temperature | 230 F |
| Tensile Strength | 1,500 PSI |
| Approvals | UL, CSA |
| UNSPSC #: | 39121723 |
| TAA Compliant: | No |
| Weight: | 0.07 lb |
