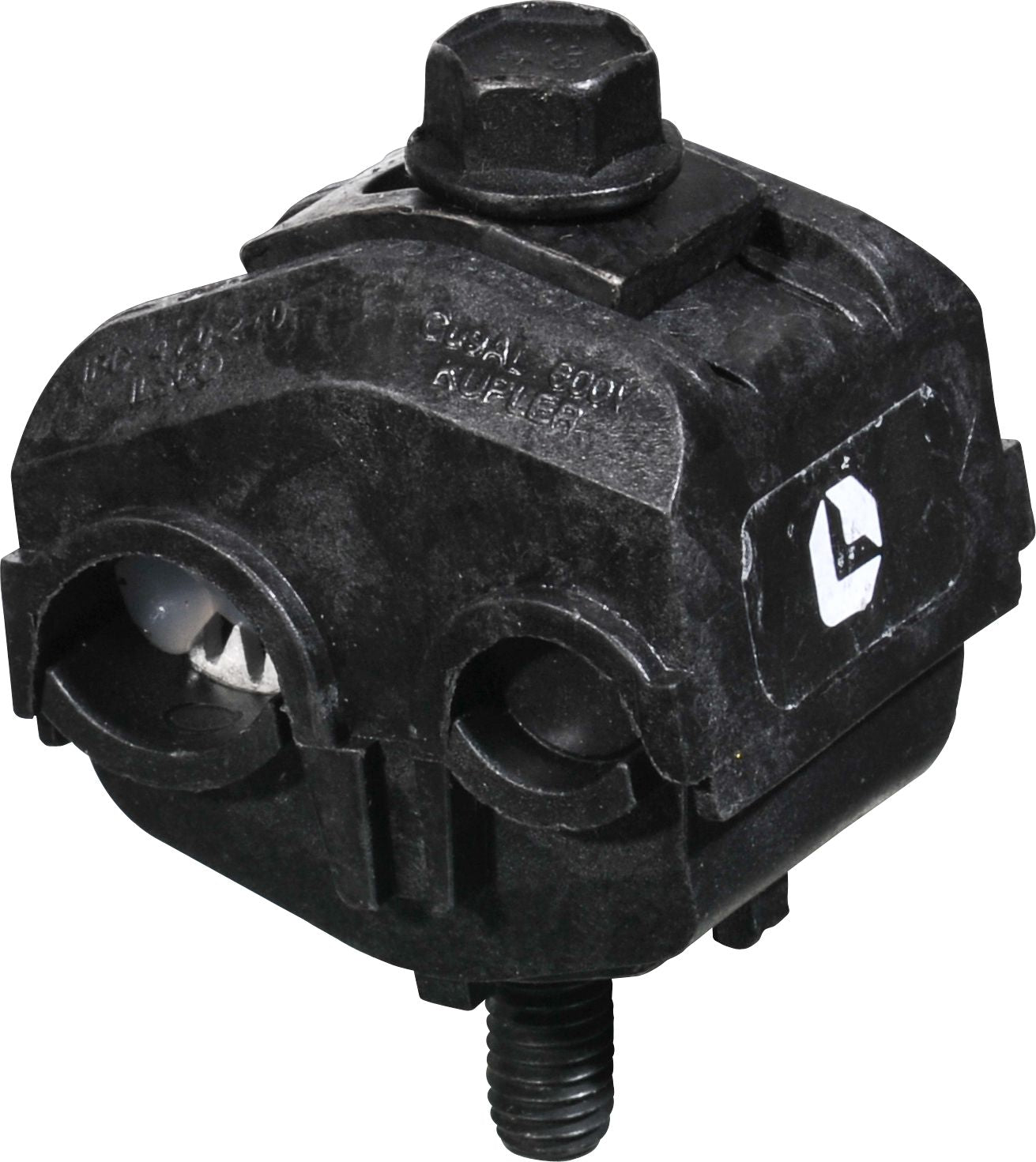

Kup-L-Tap Connector, 2 to 4/0 AWG Main, 6 to 2/0 AWG Tap, 1.88" Width, 2.88" Height, 1.66" Depth
(Pack of
1)
SKU:97757 Item#: 97757
• Installs faster than any other cable tap
• Body is tough, resilient glass-filled nylon
• Factory-installed silicone lubricating compound fills voids, keeping contamination out
• Bolts and top and bottom plates are fully insulated from the conductor and contact teeth by molded nylon sleeves
• Extra hard tin-coated copper contact teeth easily penetrate most types of insulation – no cable stripping required
• Dual-rated for copper and aluminum conductors
• Can be installed on energized conductor
• Requires no cover or tape
• Runs cooler than the conductor
• Bolt tightens with just a wrench
• A horizontal line grid provides a visual guide for proper installation of conductors
Installation Instructions1. Loosen connector bolt(s) and separate halves.2. Mount the main cable in the main groove of the connector by placing the connector halves over the cable.3. Insert the squared-off tap cable into the tap groove until it contacts the end tab. Tighten the bolt(s) until securely fastened.4. Completed installation.
Frequently Bought Together
Vision Pro Super
$0.00
Couldn't load pickup availability
Nylon Cable Tie 5-1/2" Black
$0.00
Couldn't load pickup availability
Nylon Cable Tie 4" Black
$0.00
Couldn't load pickup availability
Kup-L-Tap Connector 4 to 4/0 AWG Main
$0.00
Couldn't load pickup availability
Kup-L-Tap Connector 8 to 1/0 AWG Main
$0.00
Couldn't load pickup availability
Rocker Molding Clip with Sealer Nylon Blue 17mm
$0.00
Couldn't load pickup availability
Fender and Bumper Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Hex Head Sheet Metal Screw with 16mm Washer Steel
$0.00
Couldn't load pickup availability
Ring Tongue Terminal 16 to 14 AWG Blue
$0.00
Couldn't load pickup availability
Spade Terminal 16 to 14 AWG Blue
$0.00
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
$0.00
Couldn't load pickup availability
Product Description
• Installs faster than any other cable tap• Body is tough, resilient glass-filled nylon
• Factory-installed silicone lubricating compound fills voids, keeping contamination out
• Bolts and top and bottom plates are fully insulated from the conductor and contact teeth by molded nylon sleeves
• Extra hard tin-coated copper contact teeth easily penetrate most types of insulation – no cable stripping required
• Dual-rated for copper and aluminum conductors
• Can be installed on energized conductor
• Requires no cover or tape
• Runs cooler than the conductor
• Bolt tightens with just a wrench
• A horizontal line grid provides a visual guide for proper installation of conductors
Installation Instructions1. Loosen connector bolt(s) and separate halves.2. Mount the main cable in the main groove of the connector by placing the connector halves over the cable.3. Insert the squared-off tap cable into the tap groove until it contacts the end tab. Tighten the bolt(s) until securely fastened.4. Completed installation.
Technical Specifications
| Item#: | 97757 |
|---|---|
| Wire Range Main | 2-4/0 |
| Wire Range Tap | 6-2/0 |
| Volts | 600 V |
| Length | 1.66 " |
| Width | 1.88 " |
| Height | 2.88 " |
| Depth | 1.66 " |
| Torque Recommendation | 25 lb |
| Approvals | UL, CSA |
| Style | Kup-L-Tap |
| Type | Electrical Connectors |
| UNSPSC #: | 39121409 |
| TAA Compliant: | Yes |
| Weight: | 0.36 lb |
