Liquidtight Strain Relief Connector, 1/2" Hub Size, Mini Arc, Nylon, Neoprene Bushing, Corrosion-Resistant
(Pack of
1)
SKU:95424 Item#: 95424
• Corrosion-resistant nylon

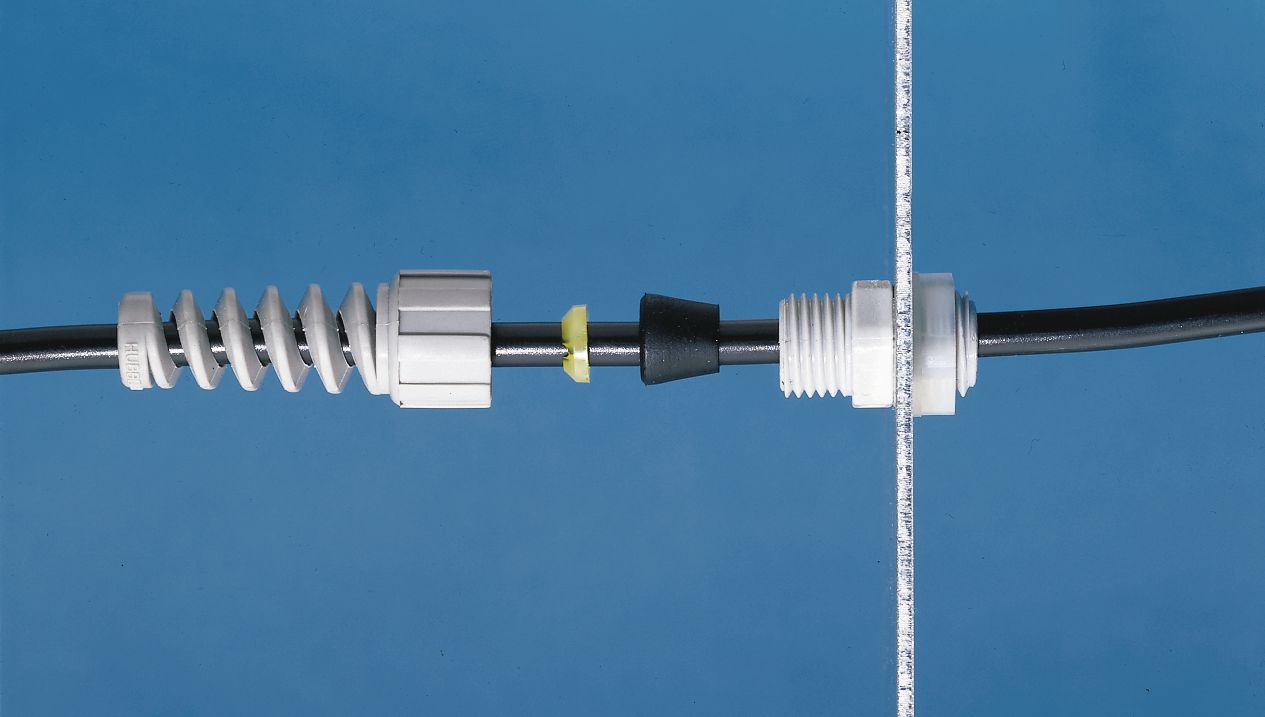

• Unique split and hinge designed ring grips power cords like a vise when the compression nut is tightened
• Pliable neoprene bushing compresses easily
• Unsurpassed Liquidtight performance and pull-out protection
• Available with arc-of-bend control spiral spring to improve cord life up to 300% and reduce conductor breakage
Applications include automotive diagnostic equipment, portable photography equipment, factory automation controls, robotics, test and measuring equipment, medical equipment and instrumentation, time and data recorders, portable business machines, power tools, overhead hoists, chemical and oil refinery equipment, food processing equipment, control panels and appliances.
Frequently Bought Together
Electrical Cord Reel 12 AWG 100'
$0.00
Couldn't load pickup availability
Conduit Strap 1/2" Malleable Iron
$0.00
Couldn't load pickup availability
Electrical Cord Reel 12 AWG 50'
$0.00
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Red
$0.00
Couldn't load pickup availability
Heat Shrink Tubing 20 to 16 AWG Black
$0.00
Couldn't load pickup availability
Super 33+ Series Vinyl Electrical Tape Black 3/4"
$0.00
Couldn't load pickup availability
Rocker Panel Molding Clip Nylon White 12 x 20mm
$0.00
Couldn't load pickup availability
Front/Rear Bumper Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Bumper Clip Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Liquidtight Strain Relief Connector 1/2" Steel
$0.00
Couldn't load pickup availability
Liquidtight Strain Relief Connector 1/2" Steel
$0.00
Couldn't load pickup availability
Liquidtight Strain Relief Connector 1/2" Steel
$0.00
Couldn't load pickup availability
Product Description
• Corrosion-resistant nylon• Unique split and hinge designed ring grips power cords like a vise when the compression nut is tightened
• Pliable neoprene bushing compresses easily
• Unsurpassed Liquidtight performance and pull-out protection
• Available with arc-of-bend control spiral spring to improve cord life up to 300% and reduce conductor breakage
Applications include automotive diagnostic equipment, portable photography equipment, factory automation controls, robotics, test and measuring equipment, medical equipment and instrumentation, time and data recorders, portable business machines, power tools, overhead hoists, chemical and oil refinery equipment, food processing equipment, control panels and appliances.
Technical Specifications
| Item#: | 95424 |
|---|---|
| Style | Liquidtight Strain Relief Connector |
| Size | 0.375 - 0.437 |
| Diameter Range | 0.375 - 0.437 " |
| Dimension A | 1 " |
| Dimension B | 3.72 " |
| Dimension C | 0.460 " |
| Dimension D | 0.445 " |
| Dimension E | 0.450 " |
| Hub Size | 1/2 " |
| Approvals | UL, CSA |
| Form Size | F-1 |
| Type | Liquidtight with arc of bend control |
| UNSPSC #: | 39121400 |
| TAA Compliant: | Yes |
| Weight: | 0.04 lb |
