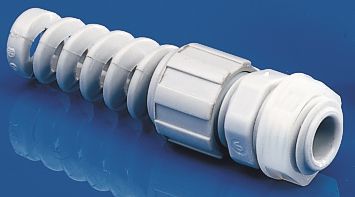

Liquidtight Strain Relief Connector 1/4" Mini Arc
(Pack of
1.0)
• Corrosion-resistant nylon
• Unique split and hinge designed ring grips power cords like a vise when the compression nut is tightened
• Pliable neoprene bushing compresses easily
• Unsurpassed Liquidtight performance and pull-out protection
• Available with arc-of-bend control spiral spring to improve cord life up to 300% and reduce conductor breakage
Applications include automotive diagnostic equipment, portable photography equipment, factory automation controls, robotics, test and measuring equipment, medical equipment and instrumentation, time and data recorders, portable business machines, power tools, overhead hoists, chemical and oil refinery equipment, food processing equipment, control panels and appliances.
Frequently Bought Together

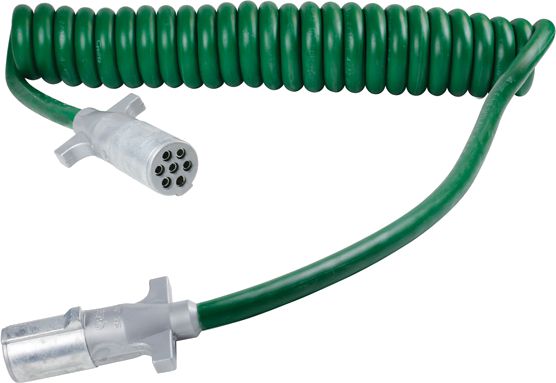

Tractor-Trailer Self Coiling Cable Assemblies ABS
Couldn't load pickup availability
Liquidtight Strain Relief Connector 1/2" Mini Arc
Couldn't load pickup availability
Battery Doc® Wall Mount Charger 2A 12V 12' Cord
Couldn't load pickup availability
Energizer® AA Alkaline Battery 1.5V
Couldn't load pickup availability
Universal Plug-In Circuit Breaker Type I 10A
Couldn't load pickup availability
Lithium Battery #2450 3V
Couldn't load pickup availability
Sheet Metal Drill Bit Alloy Steel 1/8"
Couldn't load pickup availability
Rocker Molding Clip with Sealer Nylon Gray 12mm
Couldn't load pickup availability
Autobahn Ergo Magna EZ Crimper Ratcheting Terminal Crimper
Couldn't load pickup availability
Liquidtight Strain Relief Connector 3/8" Nylon
Couldn't load pickup availability
Liquidtight Strain Relief Connector 3/4" Steel
Couldn't load pickup availability
Liquidtight Strain Relief Connector 3/8" Nylon
Couldn't load pickup availability
Product Description
• Corrosion-resistant nylon• Unique split and hinge designed ring grips power cords like a vise when the compression nut is tightened
• Pliable neoprene bushing compresses easily
• Unsurpassed Liquidtight performance and pull-out protection
• Available with arc-of-bend control spiral spring to improve cord life up to 300% and reduce conductor breakage
Applications include automotive diagnostic equipment, portable photography equipment, factory automation controls, robotics, test and measuring equipment, medical equipment and instrumentation, time and data recorders, portable business machines, power tools, overhead hoists, chemical and oil refinery equipment, food processing equipment, control panels and appliances.
Technical Specifications
| Item#: | 95417 |
|---|---|
| Style | Liquidtight Strain Relief Connector |
| Size | 0.075 - 0.135 |
| Diameter Range | 0.075 - 0.135 " |
| Dimension A | 0.650 " |
| Dimension B | 2.55 " |
| Dimension C | 0.400 " |
| Dimension D | 0.285 " |
| Dimension E | 0.270 " |
| Hub Size | 1/4 " |
| Approvals | UL, CSA |
| Form Size | F-00 |
| Type | Liquidtight with arc of bend control |
| UNSPSC #: | 39121400 |
| TAA Compliant: | Yes |
| Weight: | 0.2 lb |
