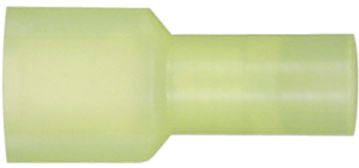

Male Quick Slide Terminal, Fully Insulated, Nylon, 12 to 10 AWG, 1/4" Tab Width, Yellow
(Pack of
50)
SKU:P34783 Item#: P34783
Visa Crimp™ provides a high-quality crimp terminal connection. The brazed-seam barrel single crimp design will not open from wire pull, vibration or stress, providing a reliable connection.
Visa Crimp™ terminals feature:
• Funnel-mouth barrel entry for easy wire insertion
• Long barrel for easier crimping in any position
• See-through insulation for foolproof crimping; crack- and chemical-resistance
Visa Crimp™
• Manufactured from high-grade copper for the highest conductivity• Annealed to flow freely under crimping pressure for best connection• Electro-tin-plated for greatest corrosion resistance• 600V
• Male – Dimpled tabs help hold the two connectors together even in high vibration conditions
Couldn't load pickup availability
Catalog page#: 2-19
Frequently Bought Together
Female Quick Slide Terminal 16 to 14 AWG Blue
Couldn't load pickup availability
Female Quick Slide Terminal 16 to 14 AWG Blue
Couldn't load pickup availability
Male Quick Slide Terminal 16 to 14 AWG Blue
Couldn't load pickup availability
Halogen Miniature Bulb 55W 12V
Couldn't load pickup availability
Nylon Cable Tie 4" Black
Couldn't load pickup availability
Rechargeable Neck Light
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 18mm
Couldn't load pickup availability
Hex Head Sheet Metal Screw with 16mm Washer Steel
Couldn't load pickup availability
Fender and Bumper Push-Type Retainer Nylon 18mm
Couldn't load pickup availability
Female Quick Slide Terminal 12 to 10 AWG Yellow
Couldn't load pickup availability
Ring Tongue Terminal 16 to 14 AWG Blue
Couldn't load pickup availability
Ring Tongue Terminal 16 to 14 AWG Blue
Couldn't load pickup availability
Product Description
Visa Crimp™ provides a high-quality crimp terminal connection. The brazed-seam barrel single crimp design will not open from wire pull, vibration or stress, providing a reliable connection.Visa Crimp™ terminals feature:
• Funnel-mouth barrel entry for easy wire insertion
• Long barrel for easier crimping in any position
• See-through insulation for foolproof crimping; crack- and chemical-resistance
Visa Crimp™
• Manufactured from high-grade copper for the highest conductivity• Annealed to flow freely under crimping pressure for best connection• Electro-tin-plated for greatest corrosion resistance• 600V
• Male – Dimpled tabs help hold the two connectors together even in high vibration conditions
Technical Specifications
| Item#: | P34783 |
|---|---|
| Type | Crimp |
| Wire Gauge | 12-10 AWG |
| Tab Width | 1/4 " |
| Blade Thickness | 0.032 " |
| Connection Type | Male |
| Color | Yellow |
| Description | Male |
| Style | Visa Crimp Fully-Insulated Quick Slides |
| UNSPSC #: | 39121432 |
| TAA Compliant: | Yes |
| Weight: | 0.24 lb |
