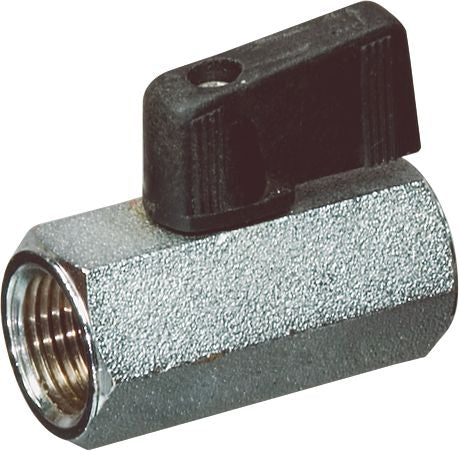

Mini Ball Valve, Brass, 1/4-18 x 1/4-18, Female NPT x Female NPT, 450PSI
(Pack of
1)
SKU:51221 Item#: 51221
• 24-hour 100% seal test guaranteed
• Dual sealing system allows valve to be operated in either direction making installation easier
• No metal-to-metal moving parts
• No maintenance ever required
• Handle clearly shows ball position
• Silicone-free lubricant on all seals
• Chrome-plated brass ball for longer life
• Each valve is seal tested for maximum safety
• One-piece, drawn, sand blasted brass body with an extreme compact design
• Finest brass according to EN 12164 specification
• NPT taper ANSI B.1.20.1 female by female threads
• Blowout-proof brass stem with FPM O-ring
• Reinforced nylon wedge handle removable with valve in service
• Pure PTFE self-lubricating seats with flexible-lip design
• Working pressure: 450 PSI
• Operating temperature: –4°F to +200°F
Applications:
• Pneumatic
Frequently Bought Together
Pipe Branch Tee Brass 1/8-27 x 1/8-27 x 1/8-27
$0.00
Couldn't load pickup availability
Pipe Adapter Brass 1/4-18 x 3/8-18
$0.00
Couldn't load pickup availability
Pipe Coupling Brass 1/2-14 x 1/2-14
$0.00
Couldn't load pickup availability
Grooved Copper Adapter Coupling, 3" x 3"
$0.00
Couldn't load pickup availability
Pipe Branch Tee Brass 1/8-27 x 1/8-27 x 1/8-27
$0.00
Couldn't load pickup availability
Pipe Adapter Brass 1/4-18 x 3/8-18
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 1-9/16 to 2-1/2"
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 1-1/16 to 2"
$0.00
Couldn't load pickup availability
Push-Type Retainer Nylon 16 x 19mm
$0.00
Couldn't load pickup availability
Bumper Fascia General Purpose Split Rivet 3/16"
$0.00
Couldn't load pickup availability
Fender Splash Shield Push Rivet Nylon 7mm Hole
$0.00
Couldn't load pickup availability
Product Description
• 24-hour 100% seal test guaranteed• Dual sealing system allows valve to be operated in either direction making installation easier
• No metal-to-metal moving parts
• No maintenance ever required
• Handle clearly shows ball position
• Silicone-free lubricant on all seals
• Chrome-plated brass ball for longer life
• Each valve is seal tested for maximum safety
• One-piece, drawn, sand blasted brass body with an extreme compact design
• Finest brass according to EN 12164 specification
• NPT taper ANSI B.1.20.1 female by female threads
• Blowout-proof brass stem with FPM O-ring
• Reinforced nylon wedge handle removable with valve in service
• Pure PTFE self-lubricating seats with flexible-lip design
• Working pressure: 450 PSI
• Operating temperature: –4°F to +200°F
Applications:
• Pneumatic
Technical Specifications
| Item#: | 51221 |
|---|---|
| Fitting Type | Ball Valve |
| Configuration | Mini |
| Material | Brass |
| Connection Type A x B | Female NPT x Female NPT |
| Fitting Dimension A | 1/4-18 |
| Fitting Dimension B | 1/4-18 |
| Working Pressure | 450 PSI |
| Temperature Range | -4 to 200 F |
| UNSPSC #: | 40170000 |
| TAA Compliant: | Yes |
| Weight: | 0.24 lb |
