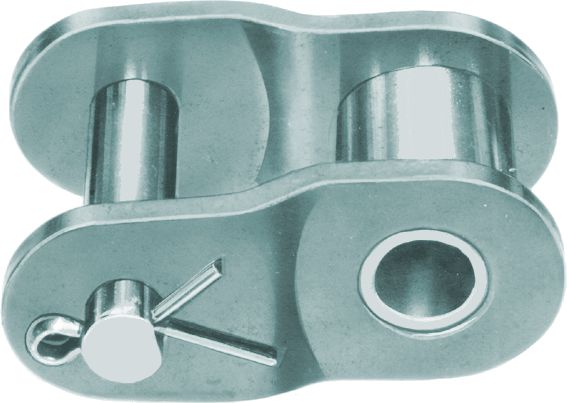

Offset Link (Half Link), Single Strand, Hi-Guard, Stl, Zinc Plated, Industry No. 60, 3/4" Pitch, 9,020lbs Average Tensile Strength
(Pack of
5)
SKU:1443384 Item#: 1443384
Hi-Guard chain is second in corrosion resistance performance next to a stainless steel chain. A luster-less white protective film is formed on the surface of the chain by a special baking process. The Hi-Guard chain has excellent galvanic corrosion resistance and rust resistance. Since the film is heat-resistant up to 482°F, it protects the chain even in high temperature. The Hi-Guard chain has slightly lower tensile strength than standard chain, but it is equivalent in maximum allowable load and wear resistance.
Product Description
Hi-Guard chain is second in corrosion resistance performance next to a stainless steel chain. A luster-less white protective film is formed on the surface of the chain by a special baking process. The Hi-Guard chain has excellent galvanic corrosion resistance and rust resistance. Since the film is heat-resistant up to 482°F, it protects the chain even in high temperature. The Hi-Guard chain has slightly lower tensile strength than standard chain, but it is equivalent in maximum allowable load and wear resistance.Technical Specifications
| Item#: | 1443384 |
|---|---|
| Manufacturer Model #: | HL60-E |
| Configuration | Offset Link (Half Link) |
| Type | Single Strand |
| Style | Standard |
| Material | Steel |
| Finish | Zinc Plate |
| Industry Number | 60 |
| Pitch | 3/4 " |
| Roller Width | 0.500 " |
| Roller Diameter | 0.469 " |
| Plate Thickness | 0.094 " |
| Plate Height | 0.713 " |
| Average Tensile Strength | 9,020 lb |
| Maximum Load | 2,090 lb |
| UNSPSC #: | 31163027 |
| TAA Compliant: | Yes |
| Weight: | 0.39 lb |
