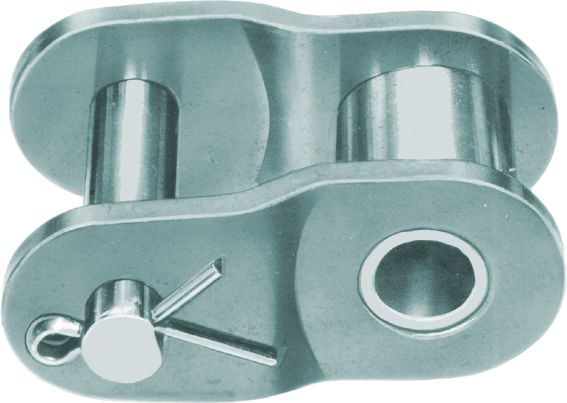

Offset Link (Half Link), Single Strand, Hi-Guard, Stl, Zinc Plated, Industry No. 40, 1/2" Pitch, 3,740lbs Average Tensile Strength
(Pack of
5)
SKU:1443589 Item#: 1443589
Hi-Guard chain is second in corrosion resistance performance next to a stainless steel chain. A luster-less white protective film is formed on the surface of the chain by a special baking process. The Hi-Guard chain has excellent galvanic corrosion resistance and rust resistance. Since the film is heat-resistant up to 482°F, it protects the chain even in high temperature. The Hi-Guard chain has slightly lower tensile strength than standard chain, but it is equivalent in maximum allowable load and wear resistance.
Frequently Bought Together
Front Fender Push-Type Retainer Nylon 20mm
Item#: P24082
$0.00
Couldn't load pickup availability
Fender Bumper Shield Retainer 11/16"
Item#: P62445
$0.00
Couldn't load pickup availability
Front Bumper Drive Rivet Plastic 10mm Hole
Item#: KT14285
$0.00
Couldn't load pickup availability
Product Description
Hi-Guard chain is second in corrosion resistance performance next to a stainless steel chain. A luster-less white protective film is formed on the surface of the chain by a special baking process. The Hi-Guard chain has excellent galvanic corrosion resistance and rust resistance. Since the film is heat-resistant up to 482°F, it protects the chain even in high temperature. The Hi-Guard chain has slightly lower tensile strength than standard chain, but it is equivalent in maximum allowable load and wear resistance.Technical Specifications
| Item#: | 1443589 |
|---|---|
| Manufacturer Model #: | HL40-E |
| Configuration | Offset Link (Half Link) |
| Type | Single Strand |
| Style | Standard |
| Material | Steel |
| Finish | Zinc Plate |
| Industry Number | 40 |
| Pitch | 1/2 " |
| Roller Width | 0.313 " |
| Roller Diameter | 0.312 " |
| Plate Thickness | 0.059 " |
| Plate Height | 0.472 " |
| Average Tensile Strength | 3,740 lb |
| Maximum Load | 836 lb |
| UNSPSC #: | 31163027 |
| TAA Compliant: | Yes |
| Weight: | 0.11 lb |
