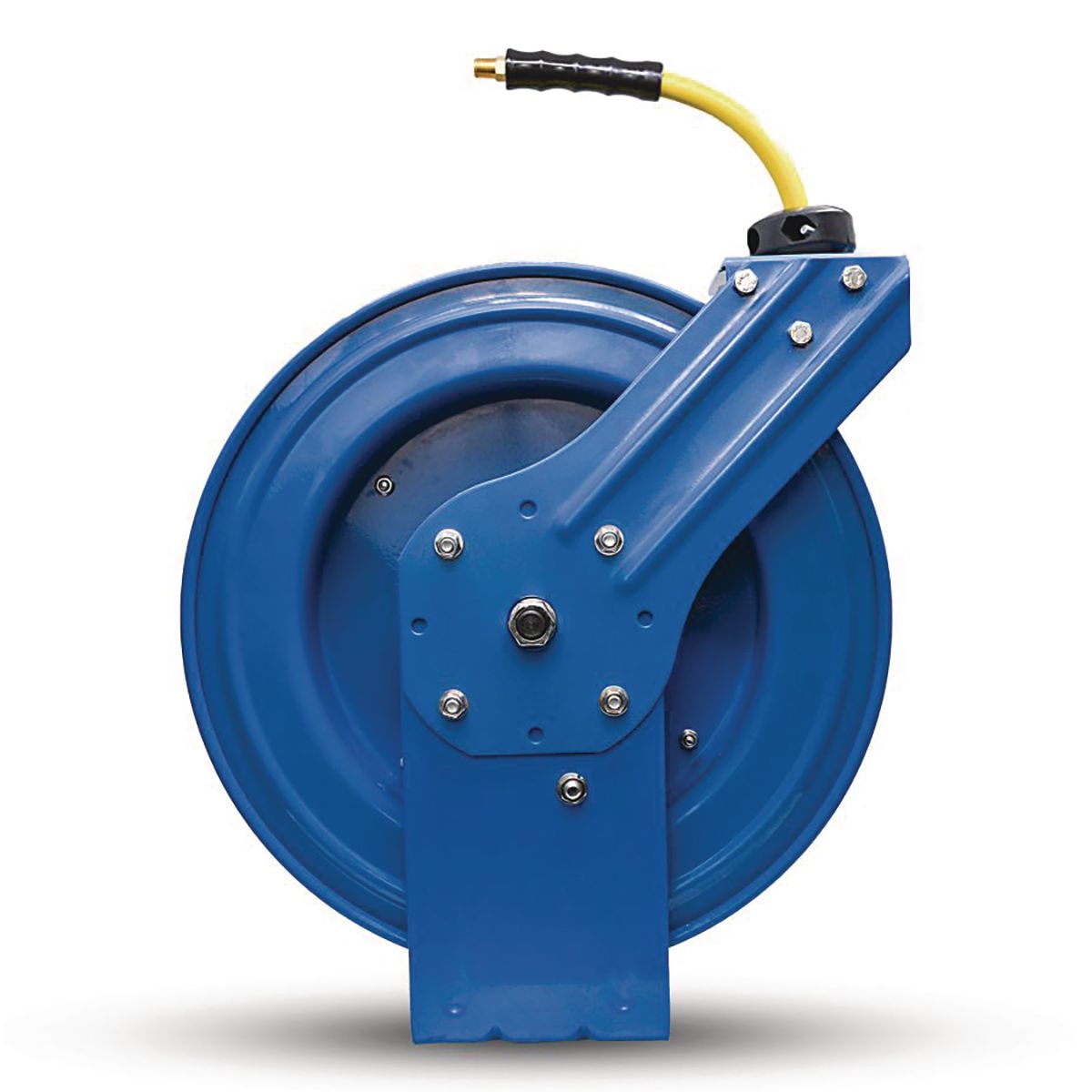

OilShield Rubber Air Hose Reel Heavy Duty Single Arm Assembly 3/8" x 50'
(Pack of
1.0)
OilShield Air Hose Reel is an ultimate combination of corrosion resistant powder coated steel, single adjustable guide arm, L-Shaped base with groove reinforcement ensuring a stable support along with the RMA Class A Oil Resistant Air hose for shops and garage. This Hose Reel utilizes a fully enclosed multi-position 12-point ratchet spring system to lock hose at designed shorter and longer length. Brass swivel joints hose inlet connection protecting against leaks while reel stopper and 4 non snag rollers reduce hose abrasion. This hose reel can be mounted on floor, wall, ceiling etc, perfect for commercial and industrial use.
OilShiled 1/2" Air hose reel is equipped with Motor Magazine Top 20 Tool award winner OilShiled Air Hose that has Nitrile inner core and nitrile cover to protect hose from Oil, welding spatters and grinding sparks. One of the best Air hose for shops offer 30% Lighter, stronger.
• 18 gauge powder coated steel construction
• Dual arm offer stability on fixed or moving surfaces like trailers, production lines
• Corrosion resistant Solid Brass fittings
• 12 point ratchet system which helps lock out the hose at shorter lengths
• 100% rubber construction
• 300 PSI working pressure
• 4:1 Safety factor
• Mountable on wall, ceiling or floor, trucks and trailers
• High strength polyester woven braided reinforcement
• Solid Brass fittings are corrosion resistant
• 4 finger grip bend restrictor for better use & easier control over the hose
• Flexibility from -30°F to +190°F
• Ozone resistant
• Abrasion resistant
• Kink Resistant
Frequently Bought Together
Air/Water Hose Reel 3/8" x 50'
Couldn't load pickup availability
Air/Water Hose Reel 3/8" x 25'
Couldn't load pickup availability
2-HR1004-3
Couldn't load pickup availability
OilShield Rubber Air Hose Assembly 3/8" x 10'
Couldn't load pickup availability
Pro Rubber Air Hose Assembly 3/4" x 100'
Couldn't load pickup availability
Rubber Air Hose Lead In 1/2" x 3'
Couldn't load pickup availability
Rubber Air Hose Bulk 3/4" x 300'
Couldn't load pickup availability
Rubber Air Hose Assembly 3/8" x 100'
Couldn't load pickup availability
Rubber Air Hose Whip / Snubber 1/2" x 5'
Couldn't load pickup availability
Air/Water Hose Reel 3/8" x 25'
Couldn't load pickup availability
2-HR1004-3
Couldn't load pickup availability
1-HR1004A
Couldn't load pickup availability
Air Distributor Defroster Push-Type Retainer
Couldn't load pickup availability
Molding Clip with Sealer Nylon White 10 x 12mm
Couldn't load pickup availability
Radiator Grille Nut M4.2-1.41
Couldn't load pickup availability
Product Description
OilShield Air Hose Reel is an ultimate combination of corrosion resistant powder coated steel, single adjustable guide arm, L-Shaped base with groove reinforcement ensuring a stable support along with the RMA Class A Oil Resistant Air hose for shops and garage. This Hose Reel utilizes a fully enclosed multi-position 12-point ratchet spring system to lock hose at designed shorter and longer length. Brass swivel joints hose inlet connection protecting against leaks while reel stopper and 4 non snag rollers reduce hose abrasion. This hose reel can be mounted on floor, wall, ceiling etc, perfect for commercial and industrial use.OilShiled 1/2" Air hose reel is equipped with Motor Magazine Top 20 Tool award winner OilShiled Air Hose that has Nitrile inner core and nitrile cover to protect hose from Oil, welding spatters and grinding sparks. One of the best Air hose for shops offer 30% Lighter, stronger.
• 18 gauge powder coated steel construction
• Dual arm offer stability on fixed or moving surfaces like trailers, production lines
• Corrosion resistant Solid Brass fittings
• 12 point ratchet system which helps lock out the hose at shorter lengths
• 100% rubber construction
• 300 PSI working pressure
• 4:1 Safety factor
• Mountable on wall, ceiling or floor, trucks and trailers
• High strength polyester woven braided reinforcement
• Solid Brass fittings are corrosion resistant
• 4 finger grip bend restrictor for better use & easier control over the hose
• Flexibility from -30°F to +190°F
• Ozone resistant
• Abrasion resistant
• Kink Resistant
Technical Specifications
| Item#: | 1690617 |
|---|---|
| Type | Rubber- Steel Braided |
| Length | 50 ft |
| I.D. | 3/8 (-6) " |
| Working Pressure | 300 PSI |
| Flexibility | -30°F to +190°F |
| Hose Cover Material | Rubber |
| Inner Tube Material | Rubber |
| Manufacturer Series Number | OSRHD3850 |
| Material | Rubber |
| Quantity Per Package | 1 |
| TAA Compliant: | No |
