Professional Thread Repair Kit M8 x 1.25
(Pack of
1.0)
• Solid bushing insert guarantees easy installation and allows full load use of tapped hole, ensuring protection against stress and vibration
• Thin-walled due to synchronized internal external threads – thin cross sectional area for installation in areas of limited space and clearance material
• Positive placement – a flange on the top of the insert ensures that the insert will have positive placement and cannot wind down into the newly repaired hole
• Self-locking – the bottom internal threads of the insert are cold-rolled to expand the mating external threads into the base material locking the insert in place; the locking mechanism is at the bottom of the insert

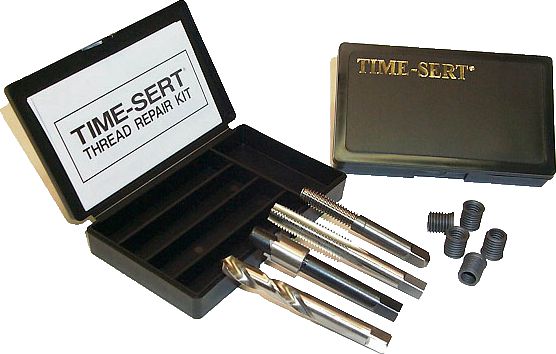

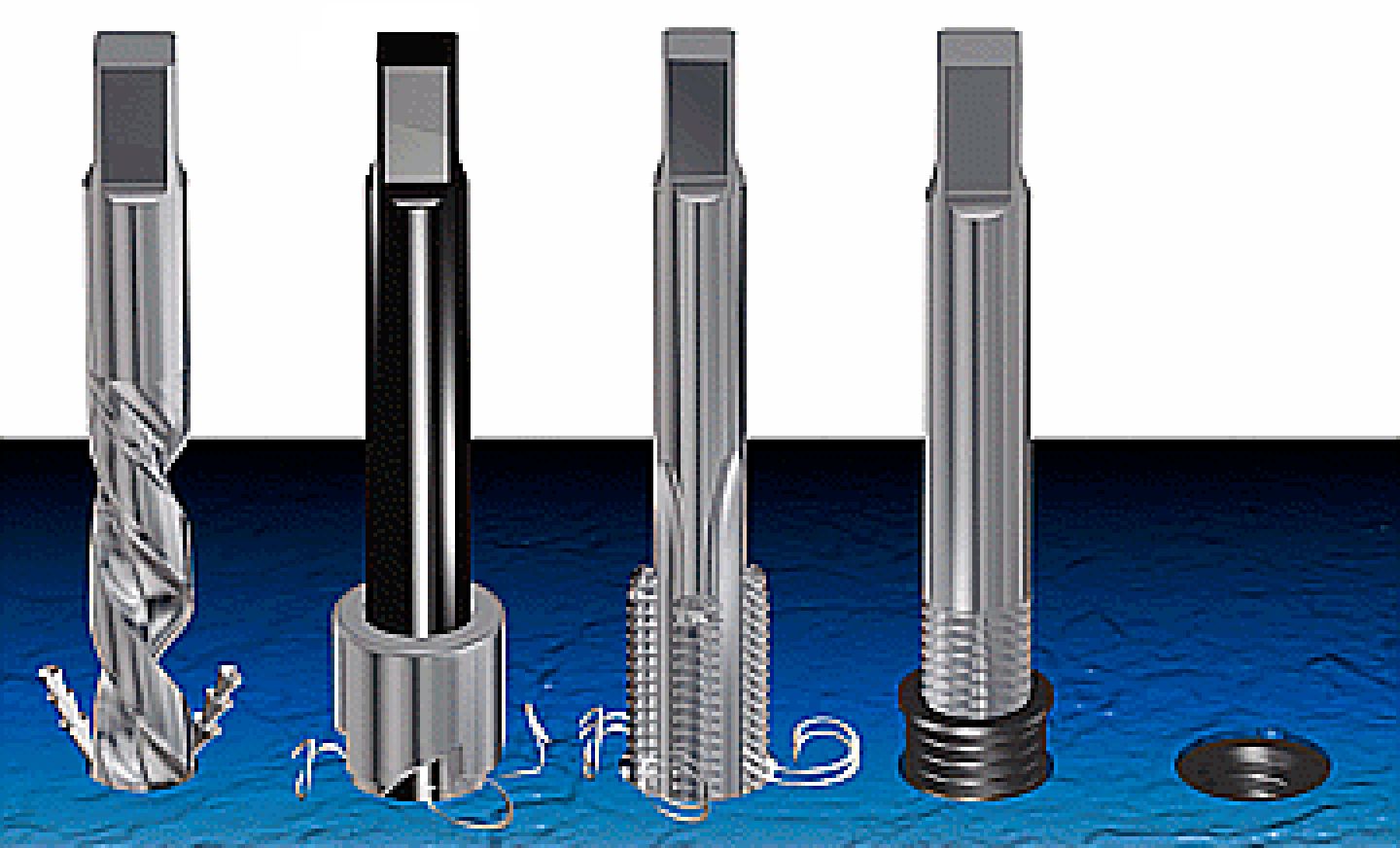

Each kit contains:
• Drill
• Counterbore
• Tap
• Insert driver
• Five steel inserts
Counterbores are flat bottom. It is recommend to use step drills for production applications.
Use of a cutting fluid is recommended for drilling, counterboring and tapping. Oil must be used on the insert driver.
Tool kits are designed for a suitable tap wrench or power tools such as a drill press, electric or air hand drills and tappers.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Frequently Bought Together
Cryobit 1/4" Dia. Maintenance Drill Bit , 135o Split Point, W/ Flats
Couldn't load pickup availability
Premium Reinforced Mini Cut-Off Wheel 3"
Couldn't load pickup availability
Spot Weld Remover Drill Bit Cobalt 5/16" (M8)
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 18mm
Couldn't load pickup availability
Utility Knife, Folding , 4" Closed
Couldn't load pickup availability
Spot Weld Remover Drill Bit HSS 2-13/16(M8)
Couldn't load pickup availability
Rethreading Die M10 x 1.5
Couldn't load pickup availability
Thin Wall Locking Thread Repair Insert Kit 1/4"
Couldn't load pickup availability
Broken Bolt Power Extractor Kit 4Pcs
Couldn't load pickup availability
Thin Wall Locking Thread Insert Kit M12 x 1.75
Couldn't load pickup availability
Heavy-Duty Locking Thread Insert Kit 1/4-20
Couldn't load pickup availability
Thin Wall Locking Thread Insert Kit 10-32
Couldn't load pickup availability
Razor Blade, Single Edge, High Carbon Steel
Couldn't load pickup availability
18" Locking Smooth Operator Clamp
Couldn't load pickup availability
Zirconium Grain Locking Grinding Disc 2"
Couldn't load pickup availability
Product Description
• Solid bushing insert guarantees easy installation and allows full load use of tapped hole, ensuring protection against stress and vibration• Thin-walled due to synchronized internal external threads – thin cross sectional area for installation in areas of limited space and clearance material
• Positive placement – a flange on the top of the insert ensures that the insert will have positive placement and cannot wind down into the newly repaired hole
• Self-locking – the bottom internal threads of the insert are cold-rolled to expand the mating external threads into the base material locking the insert in place; the locking mechanism is at the bottom of the insert
Each kit contains:
• Drill
• Counterbore
• Tap
• Insert driver
• Five steel inserts
Counterbores are flat bottom. It is recommend to use step drills for production applications.
Use of a cutting fluid is recommended for drilling, counterboring and tapping. Oil must be used on the insert driver.
Tool kits are designed for a suitable tap wrench or power tools such as a drill press, electric or air hand drills and tappers.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Technical Specifications
| Item#: | 1434196 |
|---|---|
| Type | Metric |
| Material | Carbon Steel |
| Style | Thinwall |
| Thread Size Internal | M8 x 1.25 |
| Length | 11.7 mm |
| Inserts Per Kit | 5 |
| Recommended Drill Size | P |
| Recommended Tap Size | 0.381 " |
| UNSPSC #: | 27112810 |
| TAA Compliant: | Yes |
| Weight: | 0.46 lb |
Product Restrictions
