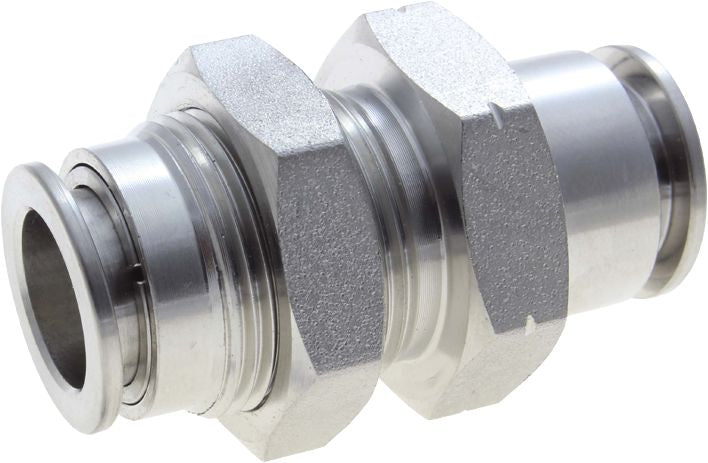

Push-to-Connect Bulkhead Union, 316 Stainless Steel, 1/25 x 1/2", Tube x Tube, 290 PSI Working Pressure
(Pack of
5)
SKU:1196656 Item#: 1196656
Designed for high corrosion, harsh environments and aggressive fluid applications. Ideal replacement in industries such as Food & Beverage, Chemical, Pharmaceutical, Packaging & Oil where nickel-plated brass and resin fittings are prohibited. Compatible with both polyurethane and nylon tubing.
• Working Temperature: -20°F to 420°F
• Working Pressure: 290 psi
• Suitable Fluids: Compressed Air/Inert gases
• Vacuum Compatibility: 29.5" HG
Construction:
• Body Material: 316 Stainless Steel
• Gripping Ring: 301 Stainless Steel
• Release Ring: 316 Stainless Steel
• O-Ring: Viton®
Frequently Bought Together
Push-to-Connect Elbow, Nickel-Plated Brass/PBT Resin, 5/32 x 1/8"
$0.00
Couldn't load pickup availability
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 1/4 x 1/4"
$0.00
Couldn't load pickup availability
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 1/8 x 1/4"
$0.00
Couldn't load pickup availability
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 5/16 x 1/4"
$0.00
Couldn't load pickup availability
Pipe Bushing Brass 3/4-14 x 1/2-14
$0.00
Couldn't load pickup availability
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 5/16 x 1/8"
$0.00
Couldn't load pickup availability
DOT Swivel Elbow Male 360° Brass 1/4 x 1/8-27
$0.00
Couldn't load pickup availability
Hose Clamp 304 SS 3/4 to 1-3/4"
$0.00
Couldn't load pickup availability
Air Conditioning Slim Line Sealing Washer
$0.00
Couldn't load pickup availability
Push-to-Connect Connector Brass 1/8" x 10-32
$0.00
Couldn't load pickup availability
Push-to-Connect Branch Tee Nylon 6 mm x 6 mm x 1/4"
$0.00
Couldn't load pickup availability
Push-to-Connect Reducer Nylon 1/8 x 1/4"
$0.00
Couldn't load pickup availability
Front Bumper Specialty Nut Steel M4.2-1.41
$0.00
Couldn't load pickup availability
Molding Clip with Sealer Nylon White 11.5 x 21
$0.00
Couldn't load pickup availability
Radiator Grille Nut M4.2-1.41
$0.00
Couldn't load pickup availability
Product Description
Designed for high corrosion, harsh environments and aggressive fluid applications. Ideal replacement in industries such as Food & Beverage, Chemical, Pharmaceutical, Packaging & Oil where nickel-plated brass and resin fittings are prohibited. Compatible with both polyurethane and nylon tubing.• Working Temperature: -20°F to 420°F
• Working Pressure: 290 psi
• Suitable Fluids: Compressed Air/Inert gases
• Vacuum Compatibility: 29.5" HG
Construction:
• Body Material: 316 Stainless Steel
• Gripping Ring: 301 Stainless Steel
• Release Ring: 316 Stainless Steel
• O-Ring: Viton®
Technical Specifications
| Item#: | 1196656 |
|---|---|
| Configuration | Bulkhead Union |
| Tube Size | 1/2 " |
| Material | 316 Stainless steel |
| Wrench Size | 27 mm |
| Bulkhead Nut Size | 27 mm |
| Panel Hole Diameter | 0.79 " |
| Panel Thickness | 6 mm |
| Working Pressure | 290 PSI |
| Temperature Range | -20 to +420 °F |
| UNSPSC #: | 40183100 |
| TAA Compliant: | No |
