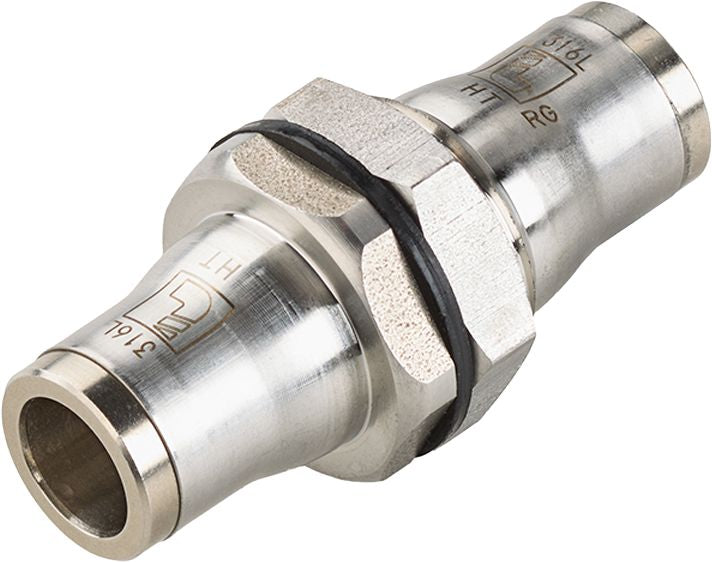

LF3800 Push-to-Connect Bulkhead Union, Stainless Steel, 3/8 x 3/8", Tube x Tube, 7 to 290PSI
(Pack of
2)
SKU:1200138 Item#: 1200138
All materials, seals, and plating conform to FDA standards and can come in contact with food. Legris LF3800’s all stainless steel construction with FKM “O” ring seals offer excellent resistance to aggressive environments and fluids.
• All items in the LF3800 range are Silicone free
• Working temperature: -4°F to +245°F
• Working pressure: Up to 290 PSI
• Sutable fluids: all fluids compatible with the materials of the fitting
• Thread sealant does not come on these products. This is so that the appropriate sealant for the application can be applied.
• Nutriment grade materials and USDA NSF H1 grease conforming to FDA and 1934/2004 CE standards, permitting permanent contact with food
• A permissible all metal product, avoiding the risk of non-detection of misplaced components
• A smooth surface design aimed at reducing retention zones for safe and easy cleaning
• Construction:
– Body: 316L Stainless Steel
– Backup washer: 316L Stainless Steel
– Collet: 303L Stainless Steel
– “O” ring: FKM
– Base: 316L Stainless Steel
Frequently Bought Together
Pipe Coupling Brass 1/4-18 x 1/4-18
$0.00
Couldn't load pickup availability
Pipe Close Nipple Brass 3/8-18 x 3/8-18
$0.00
Couldn't load pickup availability
Pipe Adapter Brass 1/4-18 x 1/4-18
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Plug Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Push-to-Connect Y Connector Nylon 1/4 x 1/4 x 1/4"
$0.00
Couldn't load pickup availability
Push-to-Connect Extension Elbow Nylon 6 mm x 1/4"
$0.00
Couldn't load pickup availability
Push-to-Connect Tee Nylon 3/16 x 3/16 x 3/16"
$0.00
Couldn't load pickup availability
Drive Rivet Nylon M8
$0.00
Couldn't load pickup availability
Bumper Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Bumper Radiator and Grille Drive Rivet 7mm Hole
$0.00
Couldn't load pickup availability
Product Description
All materials, seals, and plating conform to FDA standards and can come in contact with food. Legris LF3800’s all stainless steel construction with FKM “O” ring seals offer excellent resistance to aggressive environments and fluids.• All items in the LF3800 range are Silicone free
• Working temperature: -4°F to +245°F
• Working pressure: Up to 290 PSI
• Sutable fluids: all fluids compatible with the materials of the fitting
• Thread sealant does not come on these products. This is so that the appropriate sealant for the application can be applied.
• Nutriment grade materials and USDA NSF H1 grease conforming to FDA and 1934/2004 CE standards, permitting permanent contact with food
• A permissible all metal product, avoiding the risk of non-detection of misplaced components
• A smooth surface design aimed at reducing retention zones for safe and easy cleaning
• Construction:
– Body: 316L Stainless Steel
– Backup washer: 316L Stainless Steel
– Collet: 303L Stainless Steel
– “O” ring: FKM
– Base: 316L Stainless Steel
Technical Specifications
| Item#: | 1200138 |
|---|---|
| Manufacturer Model #: | 3816 60 00 |
| Style | LF3800 |
| Configuration | Bulkhead Union |
| Tube Size | 3/8 " |
| Material | Stainless Steel |
| Wrench Size | 27 mm |
| Bulkhead Nut Size | 22 mm |
| Panel Hole Diameter | 0.81 " |
| Panel Thickness | 6 mm |
| Working Pressure | 7 to 290 PSI |
| Temperature Range | -4 to +245 °F |
| UNSPSC #: | 40183100 |
| TAA Compliant: | No |
