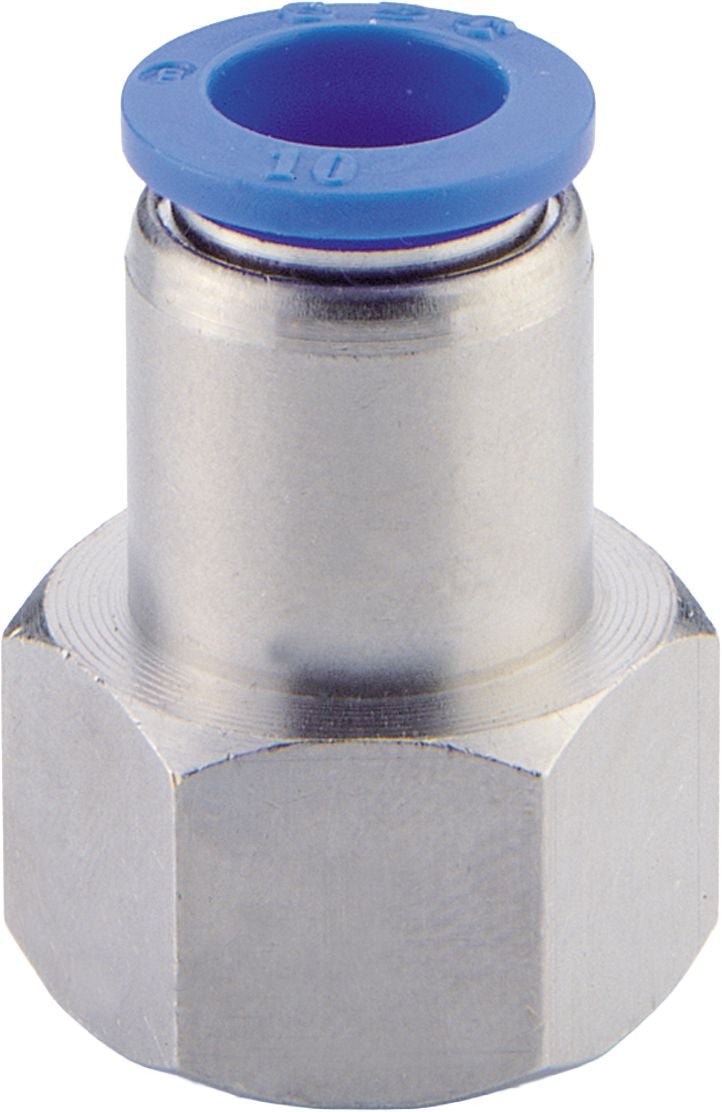

Push-to-Connect Straight Connector, Nickel-Plated Brass/PBT Resin, 5/16 (8mm) x 1/8", Tube x Female NPT, 150 PSI Working Pressure
(Pack of
2)
SKU:87635 Item#: 87635
Designed for pneumatic installations and conveyance of inert gases. Resin series is available in both fractional inch and metric tubes. These lightweight composite fittings are all for quick, tool free installation and reliable delivery. Compatible with both polyurethane and nylon tubing.
• Working Temperature: 32°F – 140°F
• Working Pressure: 150 PSI
• Suitable Fluids: Compressed air/Inert gases
• Vacuum Compatibility: 29.5” HG
Construction:
• Body Material: Nickel plated brass with resin body material constructed of polybutylene terephthalate (PBT)
• Gripping Ring: 301 stainless steel
• Release Ring: Acetal plastic
• O-Ring: NBR (Buna-N)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Frequently Bought Together
Push-to-Connect Branch Tee, Nickel-Plated Brass/PBT Resin, 1/4 x 1/4 x 1/8"
$0.00
Couldn't load pickup availability
Push-to-Connect Branch Tee, Nickel-Plated Brass/PBT Resin, 5/32 x 5/32 x 1/8"
$0.00
Couldn't load pickup availability
Push-to-Connect Elbow, Nickel-Plated Brass/PBT Resin, 1/2 x 3/8"
$0.00
Couldn't load pickup availability
Pipe Street Tee Brass 1/8-27 x 1/8-27 x 1/8-27
$0.00
Couldn't load pickup availability
Pipe Tee Brass 1/8-27 x 1/8-27 x 1/8-27
$0.00
Couldn't load pickup availability
Forged Body Ball Valve Brass 1/4-18 x 1/4-18
$0.00
Couldn't load pickup availability
Standard Industrial Safety Push-Button Safety Coupler 1/4" Body x 1/4" FNPT
$0.00
Couldn't load pickup availability
All-Plastic Ergonomic Venturi Blow Gun
$0.00
Couldn't load pickup availability
Pipe Bushing Brass 3/8-18 x 1/4-18
$0.00
Couldn't load pickup availability
Push-to-Connect Run Tee Nylon 1/4 x 1/4 x 1/4"
$0.00
Couldn't load pickup availability
Push-to-Connect Reducer Nylon 1/4 x 1/2"
$0.00
Couldn't load pickup availability
Push-to-Connect Branch Tee Nylon 1/8 x 1/8 x 1/8"
$0.00
Couldn't load pickup availability
Phillips Truss Head Sheet Metal Screw Steel 15mm
$0.00
Couldn't load pickup availability
Front Rear Bumper Specialty Rivet 3.2mm
$0.00
Couldn't load pickup availability
Molding Clip with Sealer Nylon White 11.5 x 21
$0.00
Couldn't load pickup availability
Product Description
Designed for pneumatic installations and conveyance of inert gases. Resin series is available in both fractional inch and metric tubes. These lightweight composite fittings are all for quick, tool free installation and reliable delivery. Compatible with both polyurethane and nylon tubing.• Working Temperature: 32°F – 140°F
• Working Pressure: 150 PSI
• Suitable Fluids: Compressed air/Inert gases
• Vacuum Compatibility: 29.5” HG
Construction:
• Body Material: Nickel plated brass with resin body material constructed of polybutylene terephthalate (PBT)
• Gripping Ring: 301 stainless steel
• Release Ring: Acetal plastic
• O-Ring: NBR (Buna-N)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Technical Specifications
| Item#: | 87635 |
|---|---|
| Configuration | Straight Female Connector |
| Tube Size | 5/16" (8mm) |
| Thread Size | 1/8 " |
| Thread Style | NPT |
| Material | Nickel-Plated Brass/PBT Resin |
| Wrench Size | 13 mm |
| Thread Length | .37 " |
| Working Pressure | 150 PSI |
| Temperature Range | 32 to 140 °F |
| UNSPSC #: | 40183100 |
| TAA Compliant: | Yes |
| Weight: | 0.07 lb |
