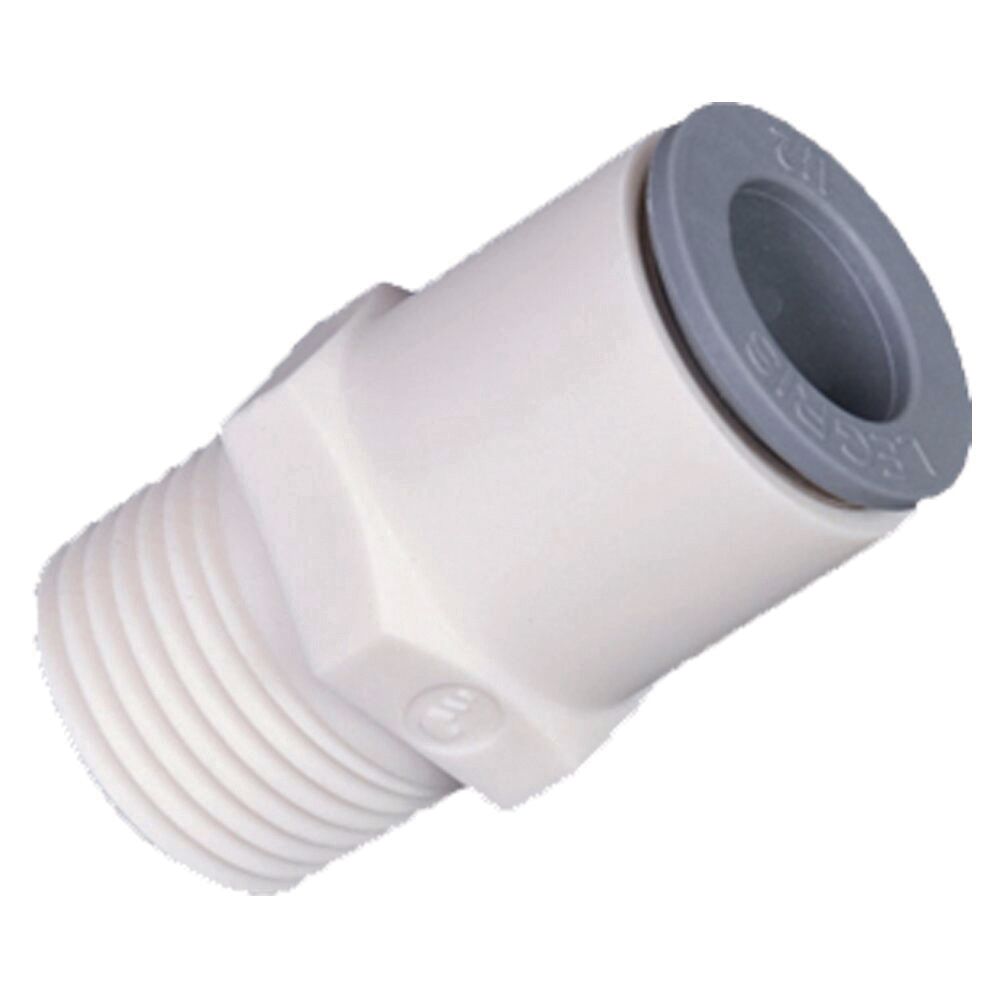

Push-to-Connect Connector, Polyoxymethlene, 1/4 x 1/4", Tube x Male NPTF, 232 PSI Working Pressure
(Pack of
10)
SKU:1259526 Item#: 1259526
Designed with National Sanitation Foundation (NSF) approved materials which are FDA compliant for food safety. These push-to-connect fittings create a safe, leak-free and rapid connection. For use in food and beverage equipment and potable/drinking water.
• Working Temperature: 32°F to 158°F
• Working Pressure: at 77°F – 232psi / at 158°F- 145psi
• Suitable Fluids: Potable drinking water(NSF 61) and food/beverage equipment(NSF 51), compressed air & inert gases
Construction:
– Body Material: POM (High-grade polyoxymethylene)
– Gripping Ring: 301 Stainless Steel
– Release Ring: POM (polyoxymethylene) and 301 stainless steel
– O-Ring: EPDM Rubber
• Beverage Market
– Fountain soda
– Beer and wine
– Coffee and tea machines
• Water Treatment
– Reverse osmosis
– Bottled water dispensers
– Bottling equipment
• Industrial
– Food process
Frequently Bought Together
Push-to-Connect Elbow, Nickel-Plated Brass/PBT Resin, 1/2 x 3/8"
$0.00
Couldn't load pickup availability
Push-to-Connect Elbow, Nickel-Plated Brass/PBT Resin, 3/8 x 1/4"
$0.00
Couldn't load pickup availability
Push-to-Connect Elbow, Nickel-Plated Brass/PBT Resin, 5/32 x 1/8"
$0.00
Couldn't load pickup availability
Pipe Tee Brass 1/8-27 x 1/8-27 x 1/8-27
$0.00
Couldn't load pickup availability
Forged Body Ball Valve Brass 1/4-18 x 1/4-18
$0.00
Couldn't load pickup availability
Pipe Nipple Brass 1/2-14 x 1/2-14
$0.00
Couldn't load pickup availability
DOT Swivel Elbow Male 360° Brass 3/8 x 1/4-18
$0.00
Couldn't load pickup availability
Standard Industrial Safety Push-Button Safety Coupler 1/4" Body x 1/4" FNPT
$0.00
Couldn't load pickup availability
All-Plastic Ergonomic Venturi Blow Gun
$0.00
Couldn't load pickup availability
Push-to-Connect Branch Tee Nylon 1/8 x 1/8 x 1/8"
$0.00
Couldn't load pickup availability
Push-to-Connect Branch Tee Nylon 6 mm x 6 mm x 1/8"
$0.00
Couldn't load pickup availability
Push-to-Connect Connector Brass 1/8" x 10-32
$0.00
Couldn't load pickup availability
Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Front Rear Bumper Specialty Rivet 3.2mm
$0.00
Couldn't load pickup availability
Radiator Grille Nut M4.2-1.41
$0.00
Couldn't load pickup availability
Product Description
Designed with National Sanitation Foundation (NSF) approved materials which are FDA compliant for food safety. These push-to-connect fittings create a safe, leak-free and rapid connection. For use in food and beverage equipment and potable/drinking water.• Working Temperature: 32°F to 158°F
• Working Pressure: at 77°F – 232psi / at 158°F- 145psi
• Suitable Fluids: Potable drinking water(NSF 61) and food/beverage equipment(NSF 51), compressed air & inert gases
Construction:
– Body Material: POM (High-grade polyoxymethylene)
– Gripping Ring: 301 Stainless Steel
– Release Ring: POM (polyoxymethylene) and 301 stainless steel
– O-Ring: EPDM Rubber
• Beverage Market
– Fountain soda
– Beer and wine
– Coffee and tea machines
• Water Treatment
– Reverse osmosis
– Bottled water dispensers
– Bottling equipment
• Industrial
– Food process
Technical Specifications
| Item#: | 1259526 |
|---|---|
| Configuration | Male Connector |
| Tube Size | 1/4 " |
| Thread Size | 1/4 " |
| Thread Style | NPTF |
| Material | Polyoxymethlene |
| Wrench Size | 9/16 " |
| Internal Hex Size | 5/32 " |
| Working Pressure | 232 PSI |
| Temperature Range | 32 to 158 °F |
| UNSPSC #: | 40183100 |
| TAA Compliant: | Yes |
| Weight: | 0.08 lb |
