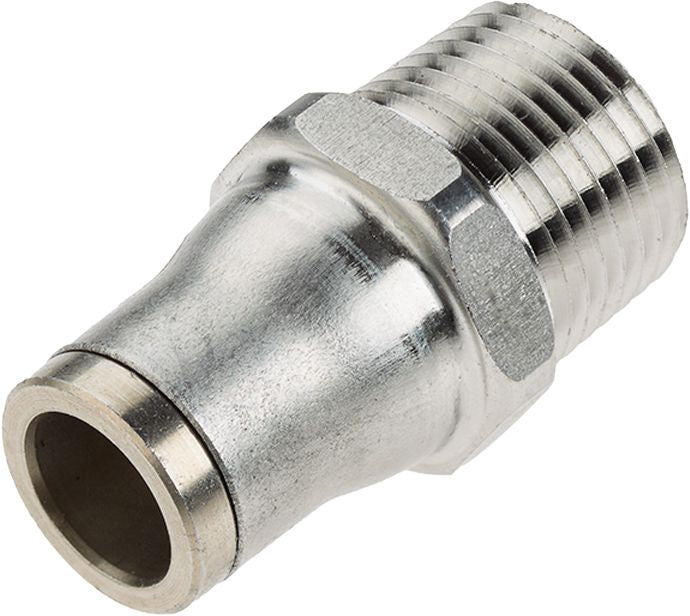

LF3800 Push-to-Connect Connector, Stainless Steel, 1/2 x 1/2", Tube x Male NPT, 7 to 290PSI
(Pack of 5)

SKU:1196690 Item#: 1196690

Legris

All materials, seals, and plating conform to FDA standards and can come in contact with food. Legris LF3800’s all stainless steel construction with FKM “O” ring seals offer excellent resistance to aggressive environments and fluids.
• All items in the LF3800 range are Silicone free
• Working temperature: -4°F to +245°F
• Working pressure: Up to 290 PSI
• Sutable fluids: all fluids compatible with the materials of the fitting
• Thread sealant does not come on these products. This is so that the appropriate sealant for the application can be applied.
• Nutriment grade materials and USDA NSF H1 grease conforming to FDA and 1934/2004 CE standards, permitting permanent contact with food
• A permissible all metal product, avoiding the risk of non-detection of misplaced components
• A smooth surface design aimed at reducing retention zones for safe and easy cleaning
• Construction:
– Body: 316L Stainless Steel
– Backup washer: 316L Stainless Steel
– Collet: 303L Stainless Steel
– “O” ring: FKM
– Base: 316L Stainless Steel

Quantity

Frequently Bought Together

Pipe Street Tee Brass 1/8-27 x 1/8-27 x 1/8-27

Pipe Tee Brass 1/8-27 x 1/8-27 x 1/8-27

Forged Body Ball Valve Brass 1/4-18 x 1/4-18

DOT Connector Male Brass 5/8 x 1/2-14

DOT Swivel Elbow Male 360° Brass 3/8 x 1/4-18

Standard Industrial Safety Push-Button Safety Coupler 1/4" Body x 1/4" FNPT

Push-to-Connect Reducer Nylon 1/4 x 1/2"

Push-to-Connect Branch Tee Nylon 1/8 x 1/8 x 1/8"

Push-to-Connect Branch Tee Nylon 6 mm x 6 mm x 1/8"

Fender Lining Screw Grommet Nylon #12

Push-Type Retainer Nylon 20mm

Front Rear Bumper Specialty Rivet 3.2mm

Product Description

All materials, seals, and plating conform to FDA standards and can come in contact with food. Legris LF3800’s all stainless steel construction with FKM “O” ring seals offer excellent resistance to aggressive environments and fluids.
• All items in the LF3800 range are Silicone free
• Working temperature: -4°F to +245°F
• Working pressure: Up to 290 PSI
• Sutable fluids: all fluids compatible with the materials of the fitting
• Thread sealant does not come on these products. This is so that the appropriate sealant for the application can be applied.
• Nutriment grade materials and USDA NSF H1 grease conforming to FDA and 1934/2004 CE standards, permitting permanent contact with food
• A permissible all metal product, avoiding the risk of non-detection of misplaced components
• A smooth surface design aimed at reducing retention zones for safe and easy cleaning
• Construction:
– Body: 316L Stainless Steel
– Backup washer: 316L Stainless Steel
– Collet: 303L Stainless Steel
– “O” ring: FKM
– Base: 316L Stainless Steel

Technical Specifications

Item#:	1196690
Manufacturer Model #:	3805 62 22
Style	LF3800
Configuration	Male Connector
Tube Size	1/2 "
Thread Size	1/2 "
Thread Style	NPT
Material	Stainless Steel
Wrench Size	22 mm
Internal Hex Size	10 mm
Working Pressure	7 to 290 PSI
Temperature Range	-4 to +245 °F
UNSPSC #:	40183100
TAA Compliant:	No
