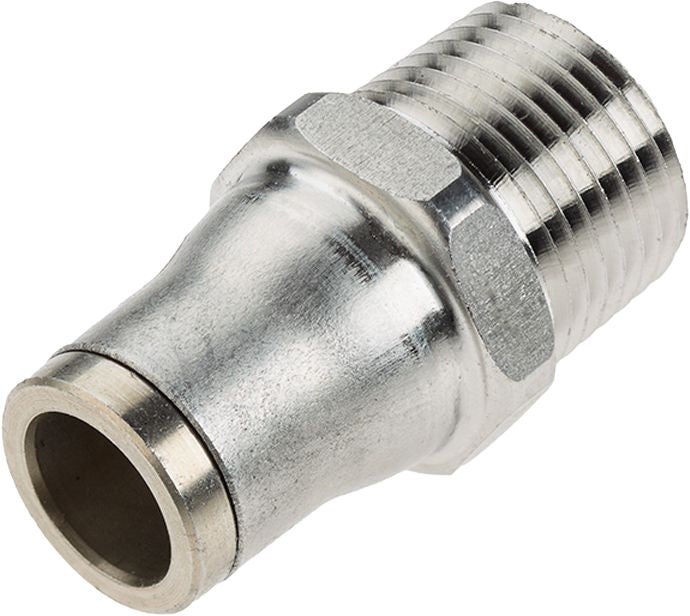

LF3800 Push-to-Connect Connector, Stainless Steel, 1/2 x 1/4", Tube x Male NPT, 7 to 290PSI
(Pack of 5)

SKU:1197766 Item#: 1197766

Legris

All materials, seals, and plating conform to FDA standards and can come in contact with food. Legris LF3800’s all stainless steel construction with FKM “O” ring seals offer excellent resistance to aggressive environments and fluids.
• All items in the LF3800 range are Silicone free
• Working temperature: -4°F to +245°F
• Working pressure: Up to 290 PSI
• Sutable fluids: all fluids compatible with the materials of the fitting
• Thread sealant does not come on these products. This is so that the appropriate sealant for the application can be applied.
• Nutriment grade materials and USDA NSF H1 grease conforming to FDA and 1934/2004 CE standards, permitting permanent contact with food
• A permissible all metal product, avoiding the risk of non-detection of misplaced components
• A smooth surface design aimed at reducing retention zones for safe and easy cleaning
• Construction:
– Body: 316L Stainless Steel
– Backup washer: 316L Stainless Steel
– Collet: 303L Stainless Steel
– “O” ring: FKM
– Base: 316L Stainless Steel

Quantity

Frequently Bought Together

Pipe Nipple Brass 1/4-18 x 1/4-18

Pipe Elbow Brass 90° 1/4-18 x 1/4-18

Pipe Hex Nipple Brass 1/4-18 x 1/4-18

DOT Union Brass 1/4 x 1/4"

Miniature Clamp SS 5/16 to 7/8"

DOT Connector Male Brass 1/4 x 1/4-18

Push-to-Connect Branch Tee Nylon 1/2 x 1/2 x 1/2"

Push-to-Connect Extension Elbow Nylon 3/8 x 1/4"

Push-to-Connect Elbow Nylon 1/4 x 1/8"

Fender Bumper Shield Retainer 11/16"

Front Bumper Push-Type Retainer Nylon 20mm

Front Bumper and Radiator Support Drive Rivet

Product Description

All materials, seals, and plating conform to FDA standards and can come in contact with food. Legris LF3800’s all stainless steel construction with FKM “O” ring seals offer excellent resistance to aggressive environments and fluids.
• All items in the LF3800 range are Silicone free
• Working temperature: -4°F to +245°F
• Working pressure: Up to 290 PSI
• Sutable fluids: all fluids compatible with the materials of the fitting
• Thread sealant does not come on these products. This is so that the appropriate sealant for the application can be applied.
• Nutriment grade materials and USDA NSF H1 grease conforming to FDA and 1934/2004 CE standards, permitting permanent contact with food
• A permissible all metal product, avoiding the risk of non-detection of misplaced components
• A smooth surface design aimed at reducing retention zones for safe and easy cleaning
• Construction:
– Body: 316L Stainless Steel
– Backup washer: 316L Stainless Steel
– Collet: 303L Stainless Steel
– “O” ring: FKM
– Base: 316L Stainless Steel

Technical Specifications

Item#:	1197766
Manufacturer Model #:	3805 62 14
Style	LF3800
Configuration	Male Connector
Tube Size	1/2 "
Thread Size	1/4 "
Thread Style	NPT
Material	Stainless Steel
Wrench Size	22 mm
Internal Hex Size	7 mm
Working Pressure	7 to 290 PSI
Temperature Range	-4 to +245 °F
UNSPSC #:	40183100
TAA Compliant:	No
