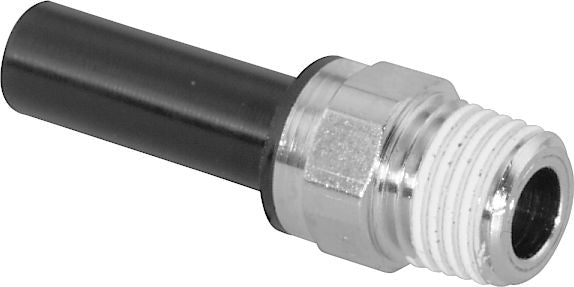

Push-To-Connect Fitting, LF3000, Male Standpipe, 12mm Tube x 3/8 BSPT, Nylon Body, Nickel-Plated Brass Base
(Pack of
10)
SKU:1197459 Item#: 1197459
Designed for pneumatic installations, the LF3000 system is an essential component in a wide variety of industries. The LF3000 system is available in both fractional inch and metric tubes with NPT, UNF, BSPT, BSPP, and Metric threads.
• All items in the LF3000 range are silicone free
• Working temperature: –4°F to +175°F (–20°C to +79°C) – collet technology 3/16" tube size: 5°F to 155°F (–15°C to +68°C)
• Working pressure: Up to 290 PSI
• Suitable fluids: Compressed air
• Vacuum capability: Vacuum of 28" Hg (99% vacuum)
• Construction:– Body: glass-reinforced nylon 6.6– Collar: nylon– Gripping ring: stainless steel (all sizes except 3/16" tube)– Collet: brass (3/16" tube size only)– D seal: nitrile– O-ring: nitrile– Base: nickel-plated brass with thread sealant on tapered components and captive seal on parallel threads
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Product Description
Designed for pneumatic installations, the LF3000 system is an essential component in a wide variety of industries. The LF3000 system is available in both fractional inch and metric tubes with NPT, UNF, BSPT, BSPP, and Metric threads.• All items in the LF3000 range are silicone free
• Working temperature: –4°F to +175°F (–20°C to +79°C) – collet technology 3/16" tube size: 5°F to 155°F (–15°C to +68°C)
• Working pressure: Up to 290 PSI
• Suitable fluids: Compressed air
• Vacuum capability: Vacuum of 28" Hg (99% vacuum)
• Construction:– Body: glass-reinforced nylon 6.6– Collar: nylon– Gripping ring: stainless steel (all sizes except 3/16" tube)– Collet: brass (3/16" tube size only)– D seal: nitrile– O-ring: nitrile– Base: nickel-plated brass with thread sealant on tapered components and captive seal on parallel threads
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Technical Specifications
| Item#: | 1197459 |
|---|---|
| Style | LF3000 |
| Configuration | Male Standpipe |
| Tube Size | 12 mm |
| Thread Size | R3/8 " |
| Thread Style | BSPT |
| Material | Nylon Body, Nickel-Plated Brass Base |
| Wrench Size | 17 mm |
| Working Pressure | 290 PSI |
| Temperature Range | -4 to +175 °F |
| UNSPSC #: | 40183100 |
| TAA Compliant: | No |
