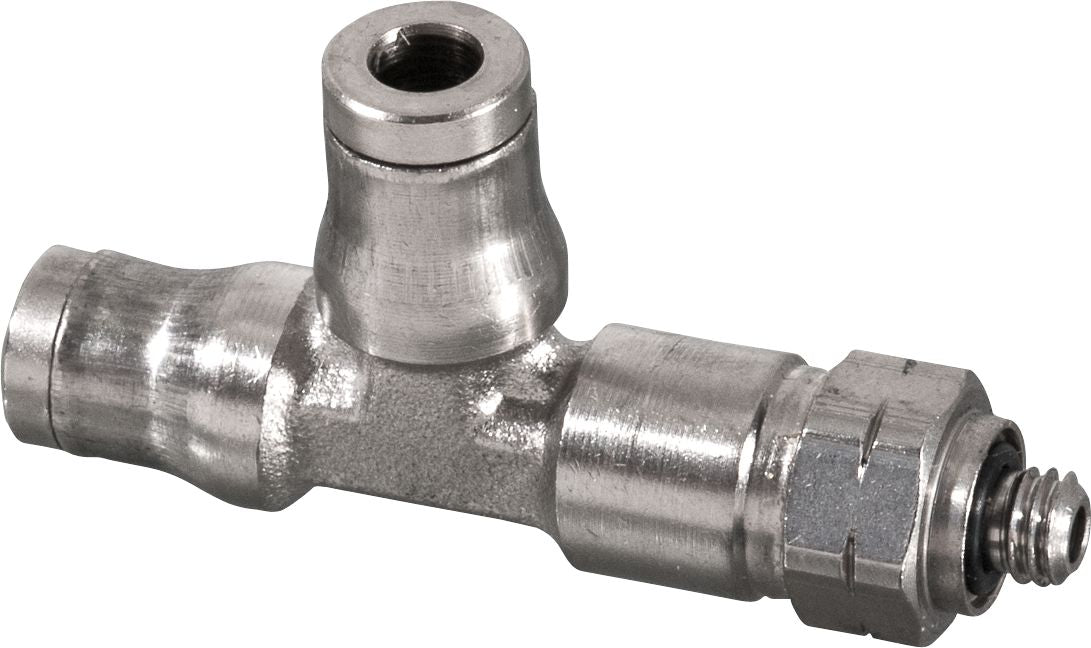

Push-to-Connect Run Tee, Brass, Nickel Plated, 5/32 x 5/32" x 10-32, Tube x Tube x Male UNF, 7 to 290PSI
(Pack of 3)

SKU:28303 Item#: 28303

Legris

Designed for Compressed air (lubricated or non-lubricated) in elevated working pressures. Fittings offer excellent performance in heavy-duty and corrosive environments. Compatible with both polyurethane and nylon tubing.
• Working Temperature: -4°F to 176°F
• Working Pressure: 280 psi
• Suitable Fluids: Compressed Air/Inert gases
• Vacuum Compatibility: 28.0" HG
Construction:
• Body Material: Nickel Plated Brass
• Gripping Ring: 301 Stainless Steel
• Release Ring: Acetal Plastic
• O-Ring: NBR(Buna-N)
The body is orientable for positioning purposes.
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.

Check Availability

Usually Ships: Today

While Supplies Last

Quantity

Frequently Bought Together

Pipe Close Nipple Brass 1/4-18 x 1/4-18

Pipe Bushing Brass 3/4-14 x 3/8-18

Pipe Adapter Brass 3/8-18 x 3/8-18

Quick Disconnect Coupler Brass 1/4" x 1/4-18

Slotted Hex Head Hose Clamp 301 SS 3/4 to 1-3/4"

Item#: P64102M01

Slotted Hex Head Hose Clamp 301 SS 3/8 to 7/8"

Item#: P28910M01

Push-to-Connect Y Union Nylon 5/16 x 5/16" x 10 mm

Push-to-Connect Connector Brass 3/8 x 3/8"

Push-to-Connect Connector Brass 1/8 x 1/8"

Front Fender Liner Push-Type Retainer Nylon 20mm

Bumper Drive Rivet Plastic 10mm Hole

Bumper Cover Push-Type Retainer Nylon 18mm

Product Description

Designed for Compressed air (lubricated or non-lubricated) in elevated working pressures. Fittings offer excellent performance in heavy-duty and corrosive environments. Compatible with both polyurethane and nylon tubing.
• Working Temperature: -4°F to 176°F
• Working Pressure: 280 psi
• Suitable Fluids: Compressed Air/Inert gases
• Vacuum Compatibility: 28.0" HG
Construction:
• Body Material: Nickel Plated Brass
• Gripping Ring: 301 Stainless Steel
• Release Ring: Acetal Plastic
• O-Ring: NBR(Buna-N)
The body is orientable for positioning purposes.
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.

Technical Specifications

Item#:	28303
Manufacturer Model #:	3693 04 20
Style	Nickel-Plated Brass Push-To-Connect
Configuration	Male Run Tee
Tube Size	5/32 "
Thread Size	10-32 "
Thread Style	UNF
Material	Nickel-Plated Brass
Wrench Size	10 mm
Thread Length	0.13 "
Working Pressure	7 to 290 PSI
Temperature Range	5 to 180 °F
UNSPSC #:	40183100
TAA Compliant:	Yes
Weight:	0.15 lb
