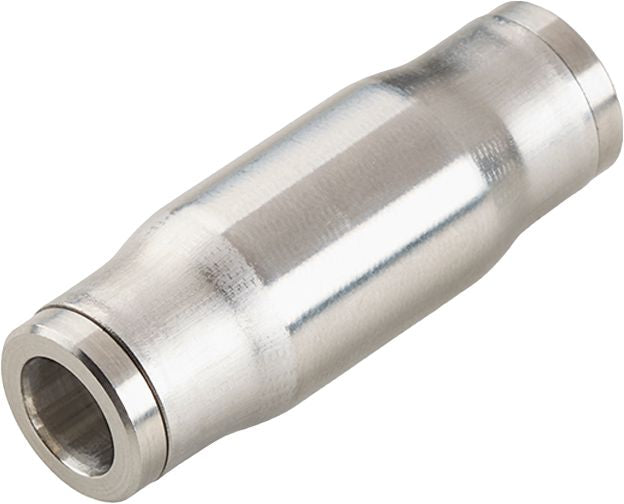

LF3800 Push-to-Connect Straight Union, Stainless Steel, 3/8 x 3/8", Tube x Tube, 7 to 290PSI
(Pack of 5)

SKU:1199985 Item#: 1199985

Legris

All materials, seals, and plating conform to FDA standards and can come in contact with food. Legris LF3800’s all stainless steel construction with FKM “O” ring seals offer excellent resistance to aggressive environments and fluids.
• All items in the LF3800 range are Silicone free
• Working temperature: -4°F to +245°F
• Working pressure: Up to 290 PSI
• Sutable fluids: all fluids compatible with the materials of the fitting
• Thread sealant does not come on these products. This is so that the appropriate sealant for the application can be applied.
• Nutriment grade materials and USDA NSF H1 grease conforming to FDA and 1934/2004 CE standards, permitting permanent contact with food
• A permissible all metal product, avoiding the risk of non-detection of misplaced components
• A smooth surface design aimed at reducing retention zones for safe and easy cleaning
• Construction:
– Body: 316L Stainless Steel
– Backup washer: 316L Stainless Steel
– Collet: 303L Stainless Steel
– “O” ring: FKM
– Base: 316L Stainless Steel

Quantity

Frequently Bought Together

Pipe Coupling Brass 3/8-18 x 3/8-18

Air Line Connector Brass SAE 45° Flare 1/4 x 1/4"

Pipe Adapter Brass 1/2-14 x 1/2-14

DOT Swivel Elbow Male 360° Brass 1/4 x 1/4-18

Worm Gear Hose Clamp Assortment with Rack

Push-Button Air Coupler Steel 1/4" x 3/8-18

Push-to-Connect x Metric Connector Brass 6 mm x M12

Push-to-Connect Elbow Nylon 1/4 x 1/4" NPT

Push-to-Connect Connector Brass 1/4 x 1/8"

Hex Head Sheet Metal Screw with 16mm Washer Steel

Fender Liner Screw Grommet Nylon M5.5

Air Distributor Defroster Push-Type Retainer

Product Description

All materials, seals, and plating conform to FDA standards and can come in contact with food. Legris LF3800’s all stainless steel construction with FKM “O” ring seals offer excellent resistance to aggressive environments and fluids.
• All items in the LF3800 range are Silicone free
• Working temperature: -4°F to +245°F
• Working pressure: Up to 290 PSI
• Sutable fluids: all fluids compatible with the materials of the fitting
• Thread sealant does not come on these products. This is so that the appropriate sealant for the application can be applied.
• Nutriment grade materials and USDA NSF H1 grease conforming to FDA and 1934/2004 CE standards, permitting permanent contact with food
• A permissible all metal product, avoiding the risk of non-detection of misplaced components
• A smooth surface design aimed at reducing retention zones for safe and easy cleaning
• Construction:
– Body: 316L Stainless Steel
– Backup washer: 316L Stainless Steel
– Collet: 303L Stainless Steel
– “O” ring: FKM
– Base: 316L Stainless Steel

Technical Specifications

Item#:	1199985
Manufacturer Model #:	3806 60 00
Style	LF3800
Configuration	Straight Union
Tube Size	3/8 "
Material	Stainless Steel
Working Pressure	7 to 290 PSI
Temperature Range	-4 to +245 °F
UNSPSC #:	40183100
TAA Compliant:	No
